Assembly instructions
1. Disconnect the building-side connecting
cable from the power supply and secure it
against being switched on again. To do
this, trip the corresponding circuit breaker
of the house installation.
2. Screw the wall brackets (1) horizontally
to the wall at a distance of 15 cm using the
screws and wall plugs (2). Use a spirit level
to ensure that the bracket is precisely
aligned.
3. Connecting the cable: Open the
connection box (3). Open the strain relief
(4). Pierce the sealing plug (5) and feed
the connection cable on the building side
through the opening. Connect the wires of
the connection cable to the luster terminal
as shown in Figure 2. Close the strain relief
(4) and close the connection box (3).
4. hang the mirror on the pre-assembled
wall brackets (1).

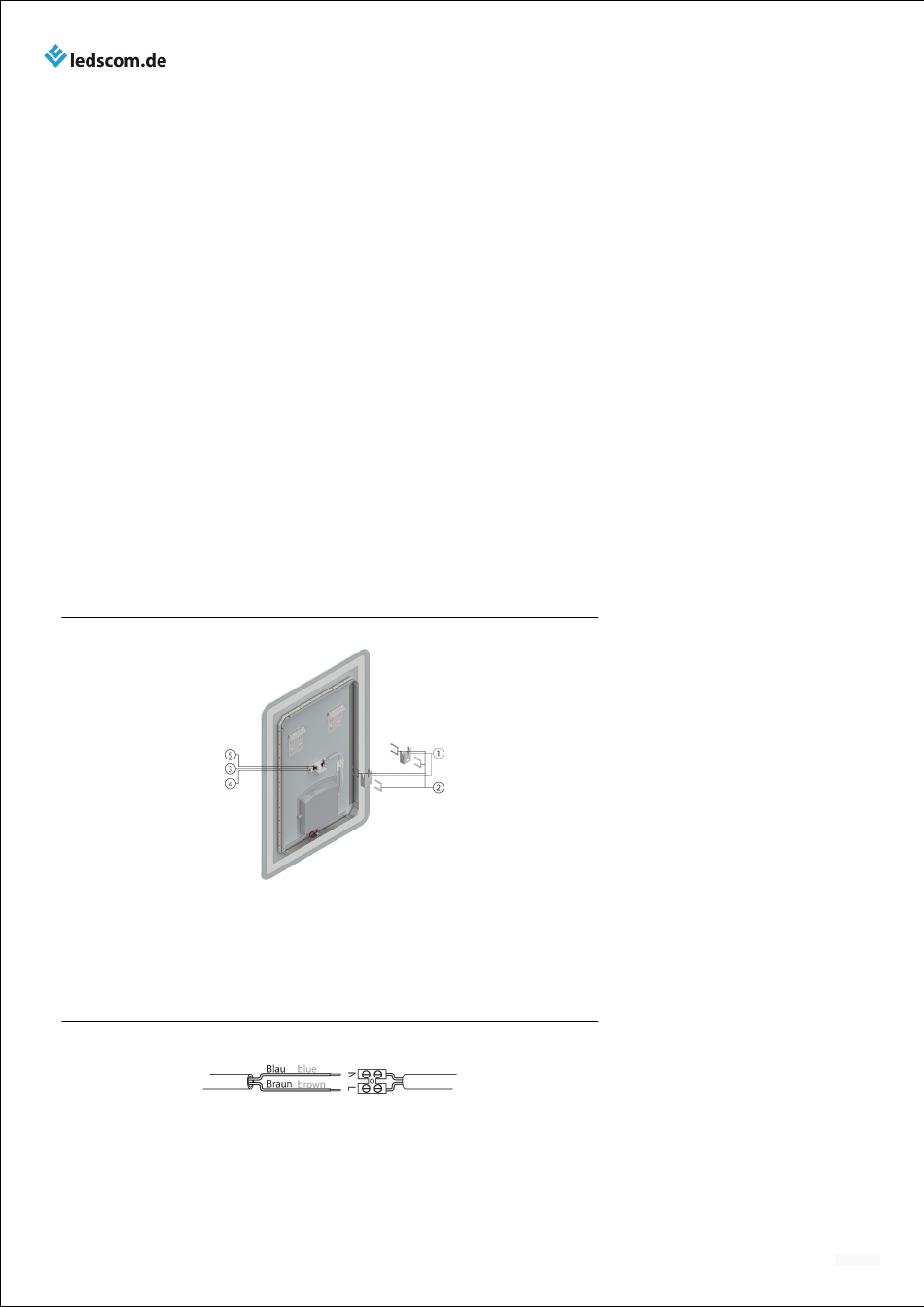

Figure 1
1: Wall brackets
2: Screws and dowels
3: Connection box
Figure 2
Subject to technical changes
English
4: Strain relief
5: Sealing plug
Mirror light (LC-L-417-W) - Assembly instructions
03/2025
