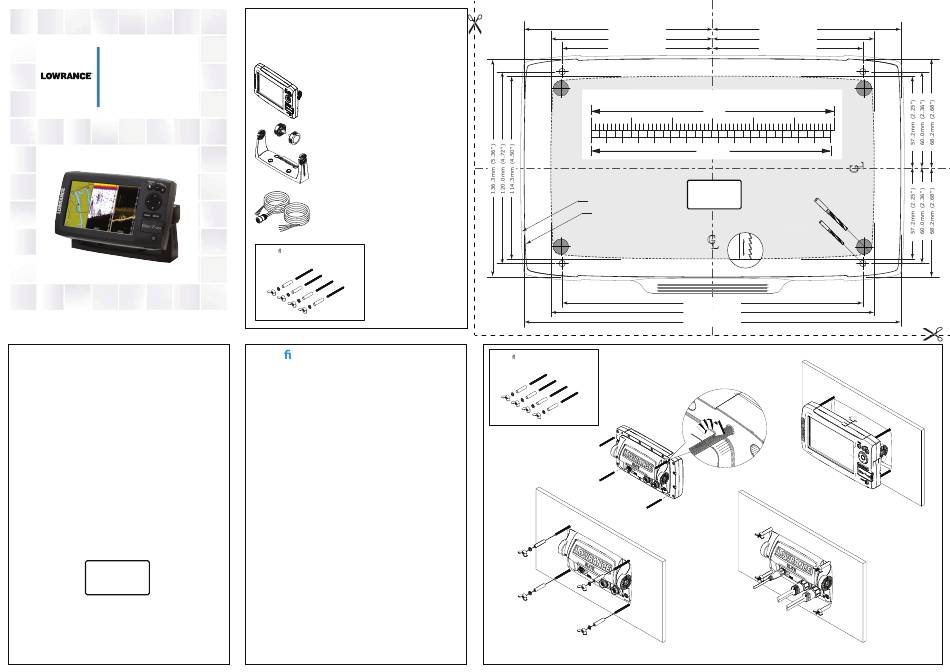

Elite-7 Widescreen
Installation Guide
lowrance.com
Elite-7 Widescreen
*988-10438-001*
NOTE:
DO NOT SCALE
PRINT 1:1
www.lowrance.com
Supplied Parts
Common Kit Parts
Elite-7
Bracket and Knobs
Power cable
Elite-7 ush mount kit (optional)
000-10979-001
Speci cations
General
Case Size :
5.3" H (234 mm) x 9.2" W (13 6mm); 5.9" H (151 mm) with
bracket
Display :
(7" diagonal) 16-bit color Full VGA, Solar MAX™
800x480 color TFT
Waterproof Std.:
IPX7
Backlight:
LED (10 levels)
Communications:
NMEA 2000
Decl. of Conformity:
Part 15.103 FCC rules & CE RTTE, directive 1999/5/EC
Power
Transmit Power:
3100W PTP; 250W RMS
Power Requirement:
12 VDC
Voltage Input:
10 to 17 VDC
Current drain Typical: 0.75A
Fuse type:
3-amp Automotive (not supplied)
Sonar
Max depth
300 ft (91 m) 455/800Khz
1000 ft (305 m) 83/200kHz
2500 ft (762m) 50/200kHz
Transducer Frequency: 455/800kHZ and 83/200kHz or 50/200kHz
Max speed
70 mph
Transducer
HDI 50/200kHz
HDI 83/200kHz
83/200kHz
Transducer cable:
20 ft (6 m)
117.7mm (4.63")
101.1mm (3.98")
94.0mm (3.70")
Check dimensions before cutting
Suncover Outline
Product Outline
Flush Mount
Elite-7 ush mount kit (optional)
000-10979-001
1
3
117.7mm (4.63")
101.1mm (3.98")
94.0mm (3.70")
6"
150 mm
NOTE:
DO NOT SCALE
9.5 mm (3/8")
PRINT 1:1
4 mm (5/32")
L C
188.0mm (7.40")
202.2mm (7.96")
235.3mm (9.26")
2
4
