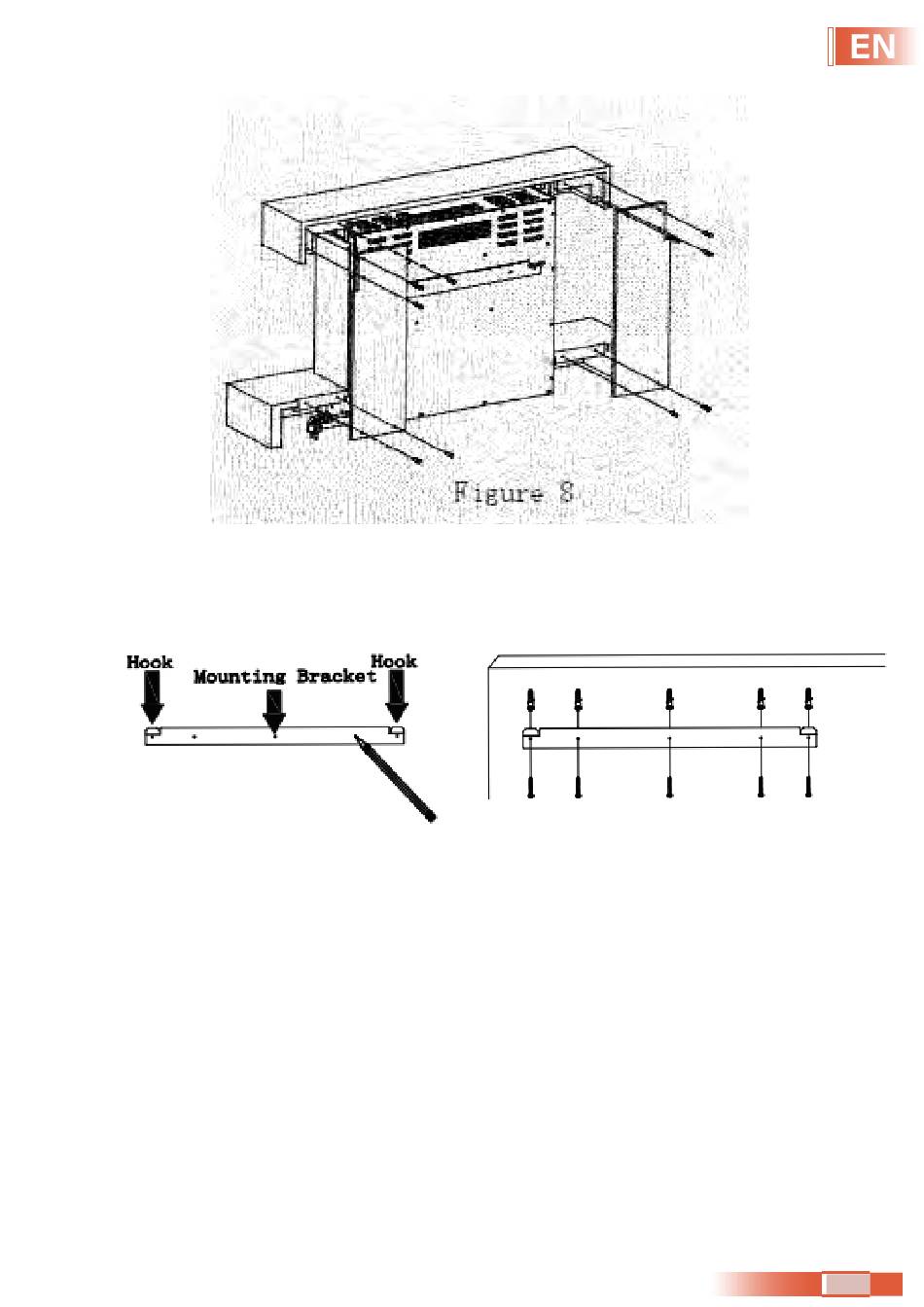

H: Fix the two side plates of the mantel with M4×30mm wood screw and the whole machine is
assembled.
I: Using the bracket as a template mark the
loca�ons where the anchors will be installed
into the wall.
Ensuring the bracket is level and the hooks are facing upward, use the moun�ng bracket and a pencil
to mark the loca�ons on the wall where the anchors will install. This bracket MUST have the hooks
facing upward and be level.
Install the anchors into the wall. Then install the bracket to the wall using the supplied screws. Hang
the fireplace on the moun�ng bracket.
NOTE: When installing on drywall, it is strongly recommended that the moun�ng bracket be screwed
Sugges�on: For drywall, use anchor E and
screw B to install moun�ng bracket. For
concrete or brick wall use anchor D and screw
B to install moun�ng bracket.
Figure 9
2 9
