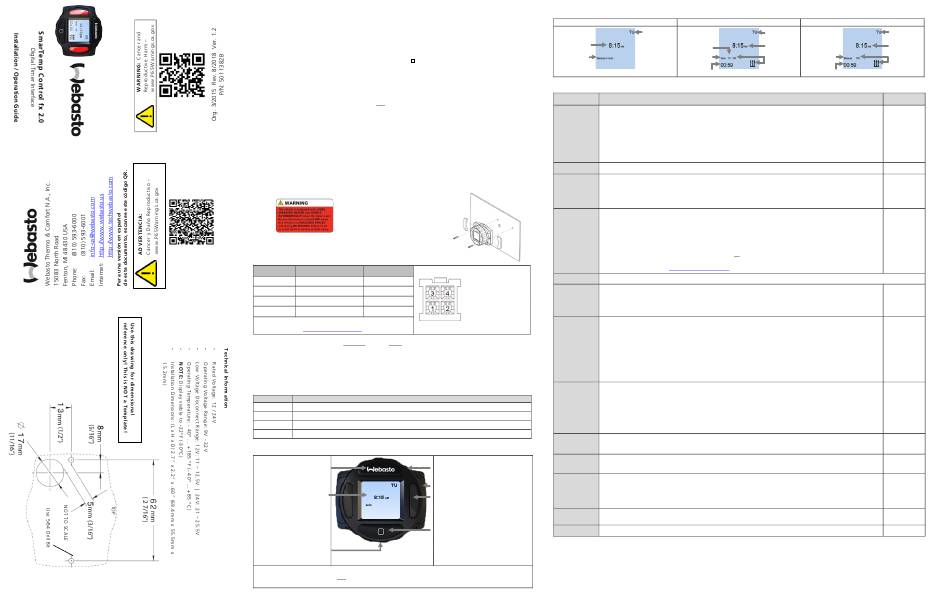

Webasto SmarTemp Control Guide Rapide

General
Thank you for choosing Webasto to meet your heating needs. The Webasto SmarTemp Control fx 2.0
enables you to preset start-up cycles of your Webasto heater 7 days a week with 4 individual times each
day.
Operation
The Webasto SmarTemp Control fx 2.0 is controlled using a rotary dial around the outside of the unit to
scroll through menu options. Simply click the selection button ( ) to make your choice. The following
sections will define each menu item and its default setting.
Compatibility
All Coolant Heaters. The SmarTemp Control fx 2.0 has an output of 1A for the heaters ON/OFF signal.
Heaters requiring a higher amperage signal will require a relay to accommodate different specifications.
See electrical connections for details. Note: Relay not included.
Mounting Procedure
1. Find a suitable mounting location (on a flat surface if possible) in a visible area.
CAUTION: Always install in an area protected from the effects of weather and contamination.
2. Use the drilling dimensions to lightly mark the two mounting holes.
3. (Optional Step) To route wire harness through the mounting surface, drill a 17mm hole as
notated on the drilling dimensions image.
NOTE: Always make sure there are no obstacles behind the mounting location prior to drilling.
4. Secure the Webasto SmarTemp Control fx 2.0 using the two supplied #4 screws.
5. Apply the supplied "Heater Off" warning sticker in a highly visible location to the driver's area.
Refer to the example sticker below.
6. Observe the Menu Descriptions section for proper menu setup.
Electrical Connections
SmarTemp Connector Pin-out
Pin Number Description Wire Color
1 +12 / 24V Red
2 GND Brown
3 Heater ON/OFF Signal Black
4 *Diagnostic Blink Code Green
For terminal removal use: Molex terminal removal tool
P/N: 11-03-0044 (http://www.molex.com)
*Diagnostic Blink Code functionality does not apply to most coolant heaters. Refer to the Error Code section for
additional information.
Relay Connection: (If applicable)
Heaters requiring a higher amperage ON/OFF signal will require a relay to accommodate different specifications.
If the connected heater requires more than a 1A ON/OFF signal to start, use the pin-out of a
standard relay as described below.
Relay Output
Relay Pin 30 Battery (B+) power source (Fused according to required heater amperage)
Relay Pin 85 Ground
Relay Pin 86 Heater ON/OFF signal wire from pin 3 of SmarTemp Control fx harness.
Relay Pin 87 Switched ON/OFF signal to heater.
Component Description
(Webasto) ON/Off Button
LCD Screen
*Micro USB Service Port
* The micro USB service port is not used for heater diagnostic purposes on SmarTemp Control fx 2.0.
LCD Screen Legend
Mode (Auto or Manual)
Day and Time
Auto or Manual
Mode
NOTE: When Auto is visible, timers are enabled
Menu Descriptions
Definitions
Mode Two modes are possible:
–
–
Note: While in manual mode the heater will continue to operate based on the pre-defined "Duration" set
by the user. See "Duration" for further detail.
Language Language changes between English, French, and Spanish
Duration Duration allows user to select the heater runtime of the heater. Set range is between 10 – 120 minutes
selectable by 10 minute increments.
Note: Duration time for all timers will default to the set duration time. User will have the ability to manually
change duration for each timer.
Error Code This section will log the last 5 error codes and the date that it was set. Highlight and select an error code for
a full description.
If the heater produces an error code, the status indicator lights will flash red and the error will display on the
main screen. Error codes cannot be reset through the Webasto SmarTemp Control fx 2.0 on the heater, a
Webasto PC Diagnostics tool is needed. Refer to the heater service manual for resetting an error code.
Note: Diagnostics via blink code is not available on all coolant heaters. Error Codes on products with no
blink code functionality can still be obtained using the PC Diagnostics test tool. Refer to the applicable
service manual by visiting
Options Advanced Level adjustment; see below
Timer & Date Time & Date allows user to properly set the current date and time. User also has the ability to switch
TERMINAL INSERT
between AM/PM and 24 hour format. If the 24 hour format is selected the date format will change to
SIDE OF CONNECTOR
dd/mm/yyyy. Use the rotary knob to choose the time / date and the selection button to confirm each entry.
The Webasto button can be used to go back to the previous field if additional changes are needed.
Timer There are 4 heater start-up cycles possible 7 days per week. The timer is separated into to three categories.
The user can select "Mon-Fri", set each specific timer (T1 – T4) for a typical work week all at once. A
weekend "Sat-Sun" can be scheduled in the same manner or a full week by using the "Mon-Sun" selection.
The "custom" link allows the user to set a specific timer (T1 – T4) for each individual day.
When selecting a specific timer a sub-menu will appear (Edit, Skip, and Off). To change the timer cycle,
select "edit". Changes are saved immediately. The "skip" feature allows a timer cycle to be skipped one
time within a 7 day period. Timer will reactivate after this one-time skip cycle.
Note: To turn a specific timer off permanently select "off".
LVD LVD "Low Voltage Disconnect" allows the user to adjust the battery voltage level at which the Webasto
SmarTemp Control fx 2.0 will shut the heater off. A warning (LED and message) will appear after 8 minutes
of low voltage. The warning will remain on for 2 minutes before the heater is shut off.
If battery voltage is equal to or less than the threshold selected +0.1v, the heater will not start. i.e. if an
11.5v threshold is selected the heater cannot be started until B+ has reached 11.7v.
12 volt - Range between 11v – 12.5v | 24 volt - Range between 21v – 25.5v
Default Default allows the user to perform a reset to all default values.
Note: A power loss will not reset user programmed values.
Password A password can be set to prevent access to the advanced "Options" menu. Enter a 4 digit code to begin
securing the Options menu. Note: This is typically used in fleet vehicle applications.
Rotary Knob
Hour Meter The hour meter logs the operating hours of an active ON signal to the heater. This does not reflect the true
Screw Cap
runtime of the heater itself.
Note: For warranty purposes a diagnostic printout is still required where applicable. This hour meter is for
Status Indicator Light(s)
reference only!
SW Version
This displays the firmware version of the Webasto SmarTemp Control fx 2.0.
Selection Button
Back Select this to return to the previous screen.
IMPORTANT - The Red status indicators (heater "ON") and LCD screen backlight turn off after 30 seconds. A touch of any button or a turn of
the rotary knob will re-activate these lights. If the "Webasto" button is used to re-activate these lights, an additional press of this button is
necessary to turn the heater off. Note that when the heater is "ON" the display is active.
Auto Mode
Current Day
Current Day
Current Time
Timer Active
Auto Mode
Heater ON
Runtime Remaining
Auto mode enables the pre-defined timer programs. Manual ON/OFF functionality is still possible while
in this mode.
Manual Mode allows the heater to be operated via the Webasto button on the SmarTemp Control fx
2.0. While in Manual Mode, all Auto Mode functionality is permanently disabled.
www.techwebasto.com for detailed PC diagnostics information.
Manual Mode
Current Day
Current Time
Manual Mode
Heater ON
Runtime Remaining
Default
Manual
English
60 minutes
No Errors
AM/PM
mm/dd/yyyy
Off
(All Timers)
11.4v | 24.2v
N/A
OFF
N/A
Installed
Version
N/A
