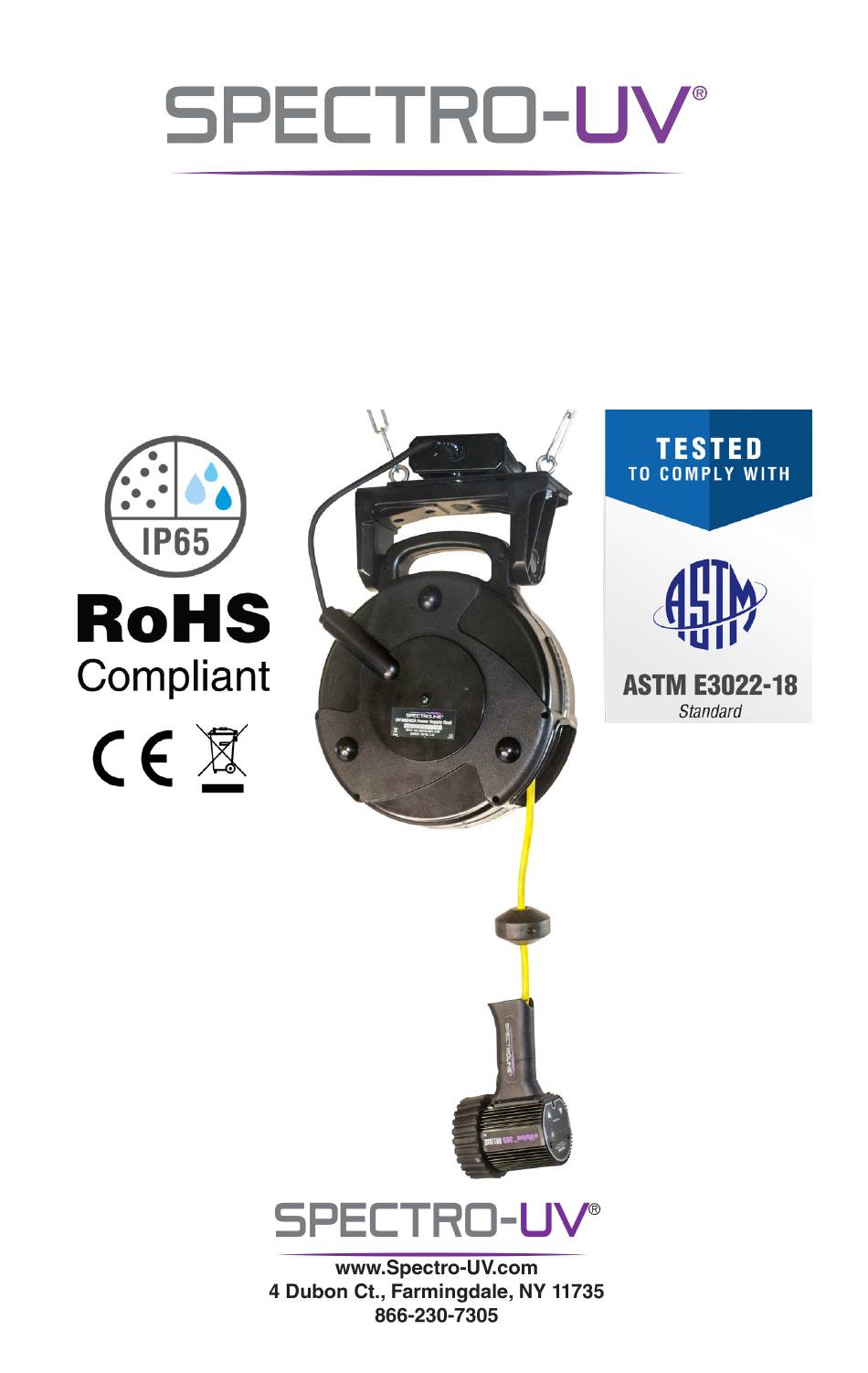

ENG - 1 FR - 9 ES - 17 DE - 25 uVision™ Series UV-A/White Light LED NDT Inspection Lamp Part No. UV-365HCR 6/22 AM18013ML-5 PRINTED IN U.S.A...
Page 2
• Do not operate the uVision™ Series UV-A/White Light LED NDT Inspection Lamp (UV-365HCR) with a damaged cord or if the lamp has been physically damaged. Do not look directly into the light. ALWAYS wear the UV-absorbing protective glasses •...
Page 3
To ensure that your uVision™ series lamp is operating at the required UV intensity, it should UV-365HCR REPLACEABLE PARTS LIST AND REPLACEMENT PARTS be checked periodically. Spectro-UV offers a variety of sensors and meters. The AccuPRO™ ITEM QTY PART NO. DESCRIPTION...
Page 4
UV-365HCR Setup CORD REEL INSTRUCTIONS INSTALLATION Lamp-Ballasted Models (Ceiling Mount) •Select a location within proximity to an electrical outlet. Eyebolts •Suspend the lamp assembly from a suitable ceiling mount. Connect a chain to the ceiling mount. Next, fasten the chain to the eyebolts located on the topside of the unit. Make certain the unit is balanced.
Page 6
ENG - 1 FR - 9 ES - 17 DE - 25 Série uVision™ Lampe d’inspection NDT à LED UV-A/lumière blanche N° de réf. UV-365HCR 7/20 AM18013ML-4 IMPRIMÉ AUX ÉTATS-UNIS...
Page 7
REMARQUE: Pour toute aide, veuillez contacter le service clientèle de Spectro-UV. Indiquez le modèle, le numéro de série de l’appareil et la date d’achat. Les informations de sérialisation de l’unité se trouvent (1) sur l’emballage dans lequel l’appareil est expédié, Réglage de...
Page 8
Pour vous assurer que votre lampe de série uVision™ fonctionne à l’intensité de rayonnement UV ET PIÈCES DE RECHANGE UV-365HCR REPLACEABLE PARTS LIST nécessaire, elle doit être contrôlée régulièrement. Spectro-UV propose une grande variété de capteurs et compteurs. L’ A ccuPRO™ XP-2000 combine les fonctionnalités d’un radiomètre/photomètre pour ITEM QTY PART NO.
Page 9
UV-365HCR SCHÉMA CONSIGNES RELATIVES À L’ENROULEUR DE CÂBLE INSTALLATION Modèles de lampes à ballast (fixation au plafond) •Choisissez un endroit situé à proximité d’une prise électrique. •Suspendez la lampe à un dispositif de fixation adapté aux plafonniers. Reliez une chaîne au dispositif Boulons à...
Page 11
ENG - 1 FR - 8 ES - 17 DE - 25 Serie uVision™ Lámpara LED de UV-A/luz blanca para inspección no destructiva (NDT) N.° de parte UV-365HCR 7/20 AM18013ML-4 IMPRESO EN EE. UU.
Page 12
No use la Serie uVision™ Lámpara LED de UV-A/luz blanca para inspección no destructiva (NDT) (UV-365HCR) si está dañada o si tiene el cable dañado o si está dañada físicamente. No vea la luz directamente. Use SIEMPRE los lentes protectores que absorben los rayos UV •...
Page 13
DM-365XA para la medición de UV-A. Para obtener más información sobre estas 128385 FRONT COVER GASKET unidades, póngase en contacto con el Departamento de Servicio al Cliente de Spectro-UV. Llame sin UV LED LENS, WITH ADHESIVE 129427 costo al 1-866-230-7305.
Page 14
UV-365HCR Diagrama INSTRUCCIONES DE LA BOBINA DE CABLE INSTALACIÓN Modelos de lámparas tipo balastra (montaje en el techo) • Seleccione un lugar cerca de una toma de corriente. • Cuelgue el ensamblaje de la lámpara de un montaje en el techo adecuado. Conecte una cadena al Armellas montaje en el techo.
Page 16
ENG - 1 FR - 8 ES - 15 DE - 25 uVision™-Serie UV-A/Weißlicht-LED-NDT-Inspektionslampe Teile-Nr. UV-365HCR 7/20 AM18013ML-4 GEDRUCKT IN DEN USA...
Page 17
Die Garantieleistung für die uVision™-Lampe wird auf Basis der jeder Lampe gesondert beigelegten Garantieurkunde (Certificate of Limited Warranty) erbracht. HINWEIS: Für jegliche Art von Unterstützung wenden Sie sich bitte an den Kundendienst der Spectro-UV. Geben Sie das Modell, die Seriennummer der Einheit und das Kaufdatum an. Die Serieninformationen zur Einheit finden Sie...
Page 18
Um sicherzustellen, dass Ihre Lampe aus der uVision™-Serie mit der erforderlichen UV-Leuchtstärke UND ERSATZTEILE arbeitet, sollte sie regelmäßig geprüft werden. Die Spectro-UV bietet eine Vielzahl an Sensoren und UV-365HCR REPLACEABLE PARTS LIST Messgeräten an. Der AccuPRO™ XP-2000 vereint die Funktionen eines Radiometers und Photometers ITEM QTY PART NO.
Page 19
UV-365HCR Zeichnung ANWEISUNGEN FÜR KABEL-AUTOMATIKEINZUG INSTALLATION Lampenbelastete Modelle (Deckenbefestigung) • Wählen Sie einen Befestigungsort in der Nähe einer Steckdose. • Hängen Sie die Lampenbaugruppe von einer geeigneten Deckenbefestigung ab. Verbinden Sie eine Ringschrauben Kette mit der Deckenbefestigung. Befestigen Sie im nächsten Schritt die Kette an den Ringschrauben an der Oberseite des Geräts.
