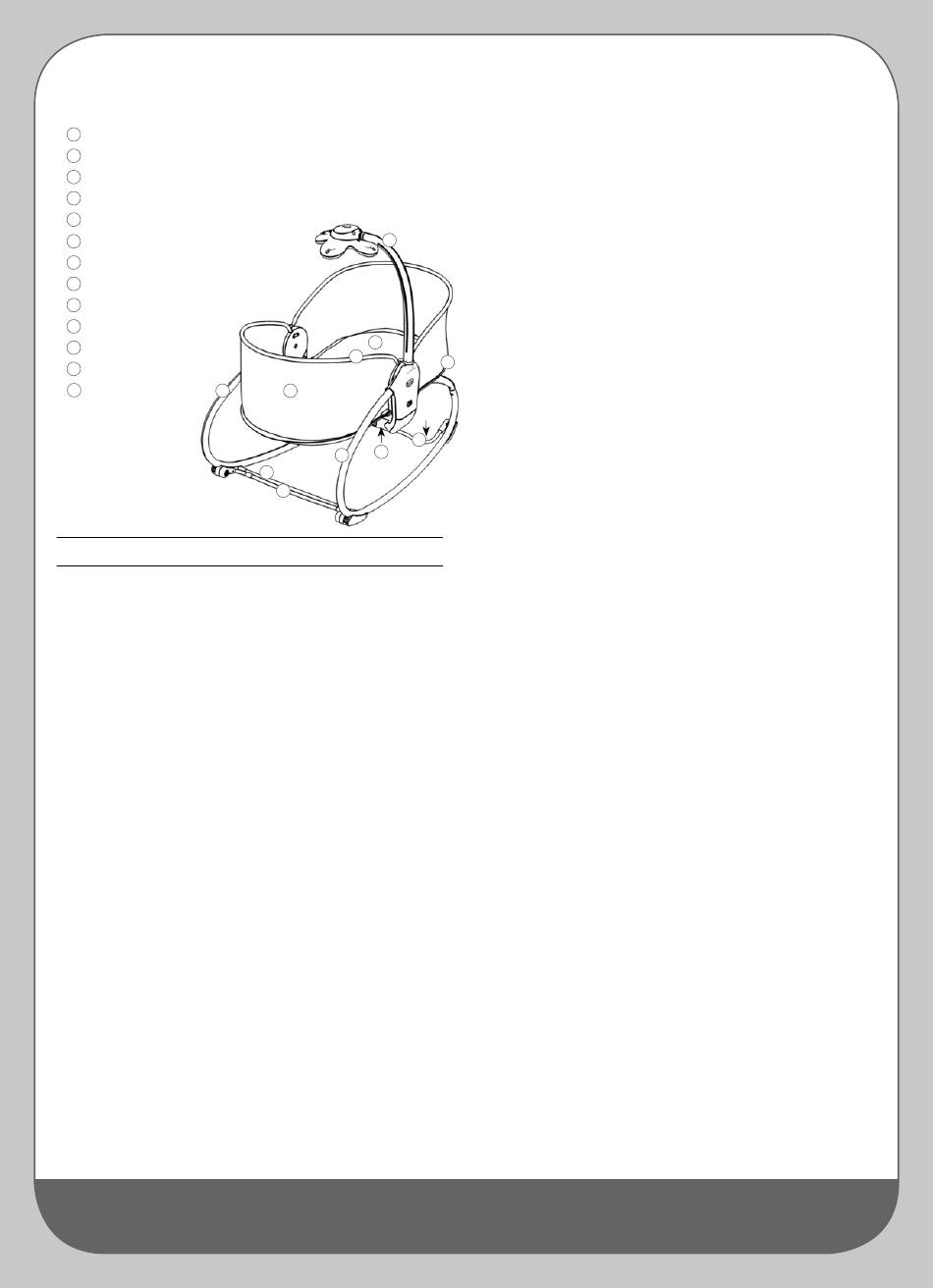

Product key
(Please refer to illustrations below)
A Right Frame x 1
B Left Frame x 1
C Body Support x 1
D Front Beam x 1
E Front Leg x 1
Back Leg x 1
F
Main Body x 1
G
Bassinet x 1
H
I Bassinet Connectors x 2
J Toy Arm x 1
Pad x 1
K
Slide Guards x 2
L
M Screws x 4
Assembling 3 in1 Rocker–Napper
Product assembly requires a Phillips screwdriver.
1. Connect the front beam (D) to the front of the Right and Left frames.
Align the round spring head on the beam with the hole on the leg
support and insert until a click indicates parts are locked into place,
repeat for both sides (Fig. 1, Fig. 2).
2. Attach the frame to the Body Support (C).
Connect the Body Support at 4 places: to the open tube ends of the
Right and Left Frames (A+B) and to the 2 snaps in the Body Support
(C). Push until clicks indicate that all the parts are locked into place
(Fig. 3).
3. Connect the Front Leg (E) and Back Leg (F) to the base frame. Note
that the Front Leg is wider than the Back Leg.
Align the round spring head in the Front Leg connector with the
hole in the Right Frame and insert until a click indicates parts are
locked into place, repeat for Left Frame (Fig. 4).
Repeat for the Back Leg.
4. Slide the Main Body (G) onto the reclining mechanism on the
base frame until you see the 4 screw holes through the "windows"
in the middle of the Body Support. The head side is indicated by
the reclining handle (Fig. 5), and must be positioned above the
back leg. The Main Body must be in a completely lat position. Fit 2
screws into the holes on one side of the body, and tighten with a
Phillips screwdriver. Repeat on other side (Fig. 6).
5. Insert the Slide Guards (L) over the snaps on the underside of the
Main Body and lower until they click into place (Fig. 7).
6. Place the Bassinet (H) on the Main Body (G). Ensure that the safety
restraint is towards the front. Connect the front (narrower) and back
(wider) Bassinet arms to the base frame reclining mechanism by
inserting the tubes into the holes. Push until a click indicates parts
are locked into place. Repeat for both sides (Fig. 8).
7. Position the Bassinet so that the holes in the Bassinet base fabric are
over the snaps on the Main Body (Fig. 9).
3
J
K
I
A
H
C
B
D
E
For more developmental information and playing tips, please visit:
www.tinylove.com
© 2012. All rights reserved, Tiny Love Ltd.
8. Place the Bassinet Connectors (I) inside the Bassinet and attach to
the front and back until clicks indicate that the parts are locked into
place. Make sure the strings are between the Bassinet walls and the
Bassinet Connectors (Fig. 10A, Fig. 10B).
9. Place the Pad (K) inside the Bassinet. Ensure that the 3 holes in the
Pad match the safety restraint belts and pull them through the
openings in the Pad (Fig. 11A).
Tie each string on the pad with its respective string on the Bassinet
wall (Fig. 11B). Tuck the knots under the pad.
Mounting Toy Arm
1. Open the Toy Arm (J) cover on the Left Frame. Align the arrow
indicator on the Toy Arm with the position indicator on the hole
in the left base frame reclining mechanism and insert the end of
the Toy Arm into the hole. Push until a click indicates the Toy Arm
G
is locked into place. Turn the Toy Arm so that the activity center is
above the center of the Rocker/Napper (Fig. 12).
2. To release the Toy Arm align the arrow indicator on the Toy Arm with
the position indicator on the hole in the left base frame reclining
F
mechanism, and pull it up vertically.
Note: Never use the Toy Arm to carry the Rocker–Napper.
Installing vibration unit battery
The vibration unit is located on the side of the reclining mechanism on
the base frame.
The vibration unit requires a single size C (1.5V) alkaline battery (not
included).
1. Use a Phillips screwdriver to open the battery compartment cover,
located under the Toy Arm (Fig. 13).
2. Insert one alkaline battery.
3. Use a Phillips screwdriver to secure the battery compartment cover.
Operating vibration unit
1. To soothe baby, turn the switch to ON position to begin vibrations
(Fig. 15).
2. It is recommended to turn of the vibrations when not in use to
avoid draining the battery. Turn the switch to OFF position to stop
vibrations.
Installing activity center batteries
The activity center requires three size AAA (1.5V) alkaline batteries (not
included).
1. Use a Phillips screwdriver to open the battery compartment cover,
located on top of the activity center (Fig. 14).
2. Insert three AAA alkaline batteries into the battery compartment.
3. Securely replace the battery compartment cover and use the
Phillips screwdriver to tighten the screw.
Please note: Batteries may leak luid that can be harmful to your baby
and the product. We strongly recommend using only high-quality
alkaline (dry) batteries.
