3 HOW TO USE

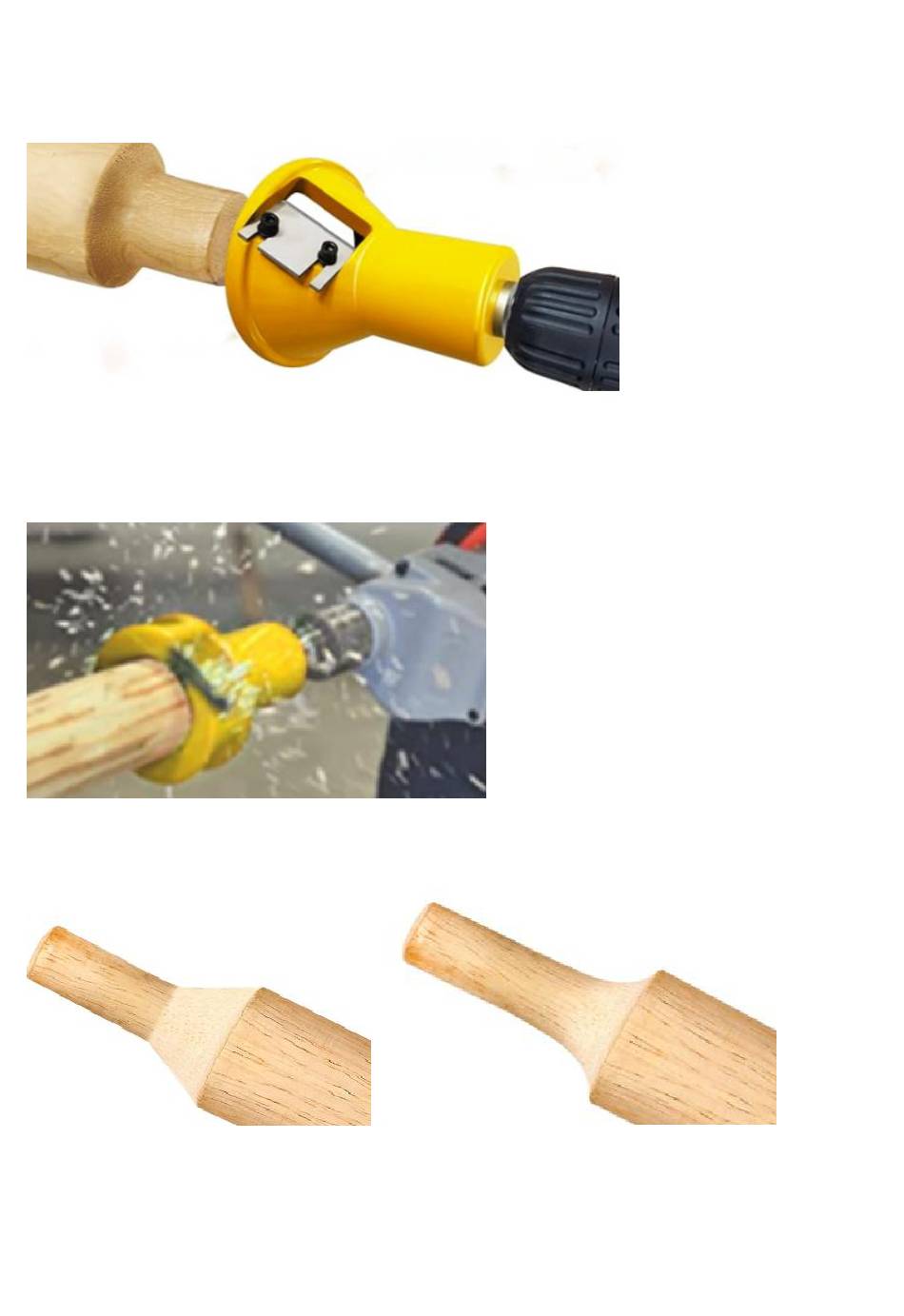

1 Select the tenon tool according to the design drawing, install it on the
electric drill, and tighten the screws.
2 Mark the position and depth for the tenon cut on the wood, secure the wood on the
workbench.
3. Set the drill to forward and the lowest speed, start cutting to the marked depth.
4. After cutting, remove the tool, clear the chips, check the shape and size, and if
necessary, grind and adjust.
Curved
Cut by Straight Blades Cut by Blades
5. Repeat the steps until all required tenons are cut, align the tenon with the mortise,
