Reznor OPT-CL31 Instructions D'installation page 4

b. For destratification fan model H, disassemble relay assembly (1) by removing relay from bracket and secure
relay as shown in Figure 4
c. For gas-fired downflow heater model LDAP:
(1) Remove control compartment access panel from main heat section.
(2) Position relay assembly (1) as shown in
(3) Install control compartment access panel.
4
INSTALLATION—CONTINUED
using two screws (2). Bracket wiil not be used.
2

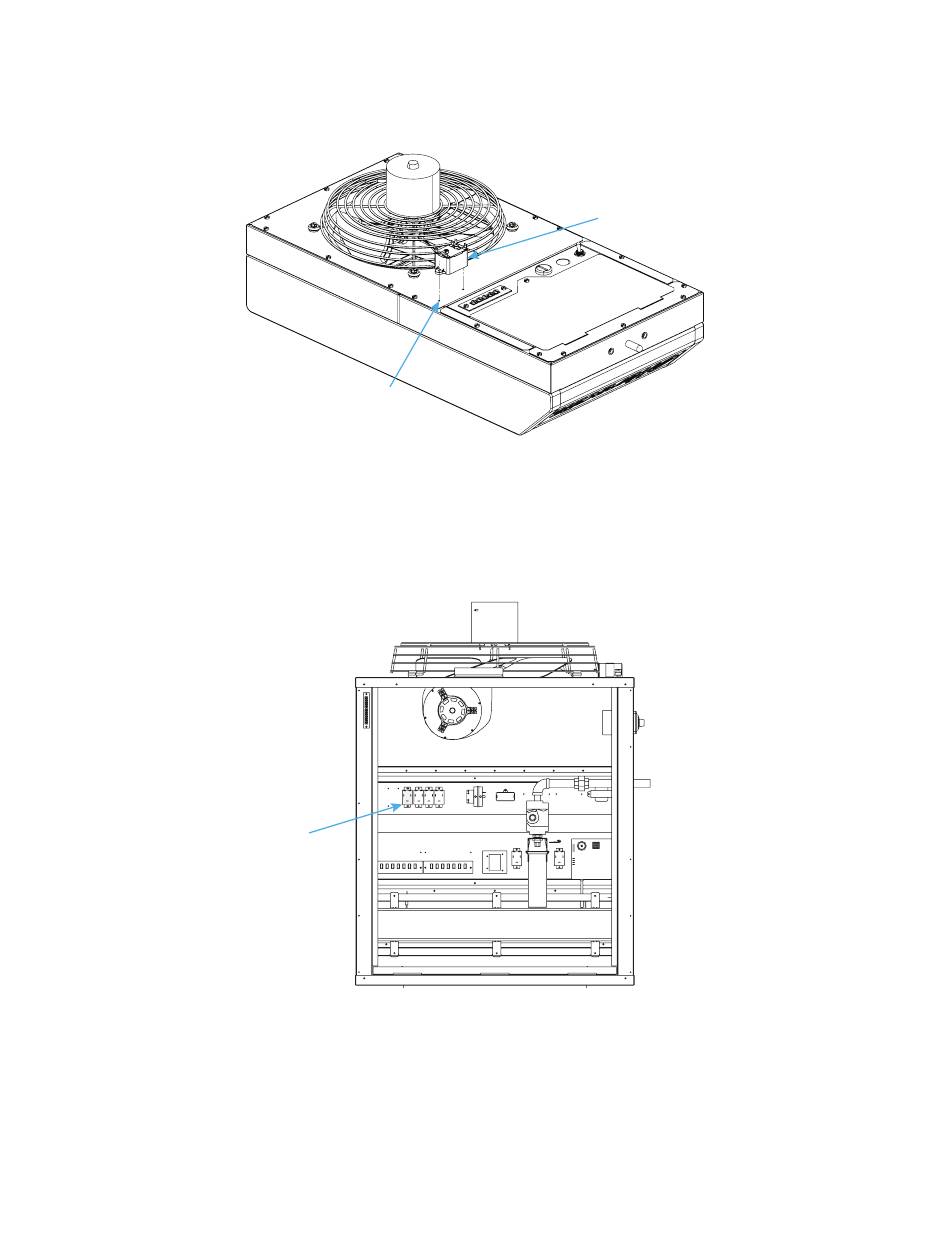

Figure 4. Relay Installation—Model H (Refer to
1
2
Figure 5. Relay Installation—Model LDAP (Refer to
RELAY
Figure 5 and secure using screws (2).
Table 2)
Table 1)
OPT-CL31,32 (02-25) 1042699-E
