Component Barrier Replacement
Replace the component barrier
Remove the power supply cover
1. Set the power switch to OFF (O), disconnect the power cord from the power source, and disconnect the gas supply.
2. Remove the two screws from the handle on the top of the power supply. Gently pull on the panel nearest the screw
you are removing to keep pressure on the screw. When the screw is almost out, tilt the screwdriver slightly to help
pull the screw out of the recessed hole.
3. Slightly tip the front and rear panels away from the power supply so that you can get the edges of the handle out from
underneath them. Remove the handle, and set it and the two screws aside.
4. Continue to tilt the panels outward to release the fan side of the cover from its track. Then lift the cover off the power
supply.
Remove and install the component barrier
1. Remove the component barrier from the power board side of the power supply. The barrier is flexible and can be bent
slightly for removal.
4

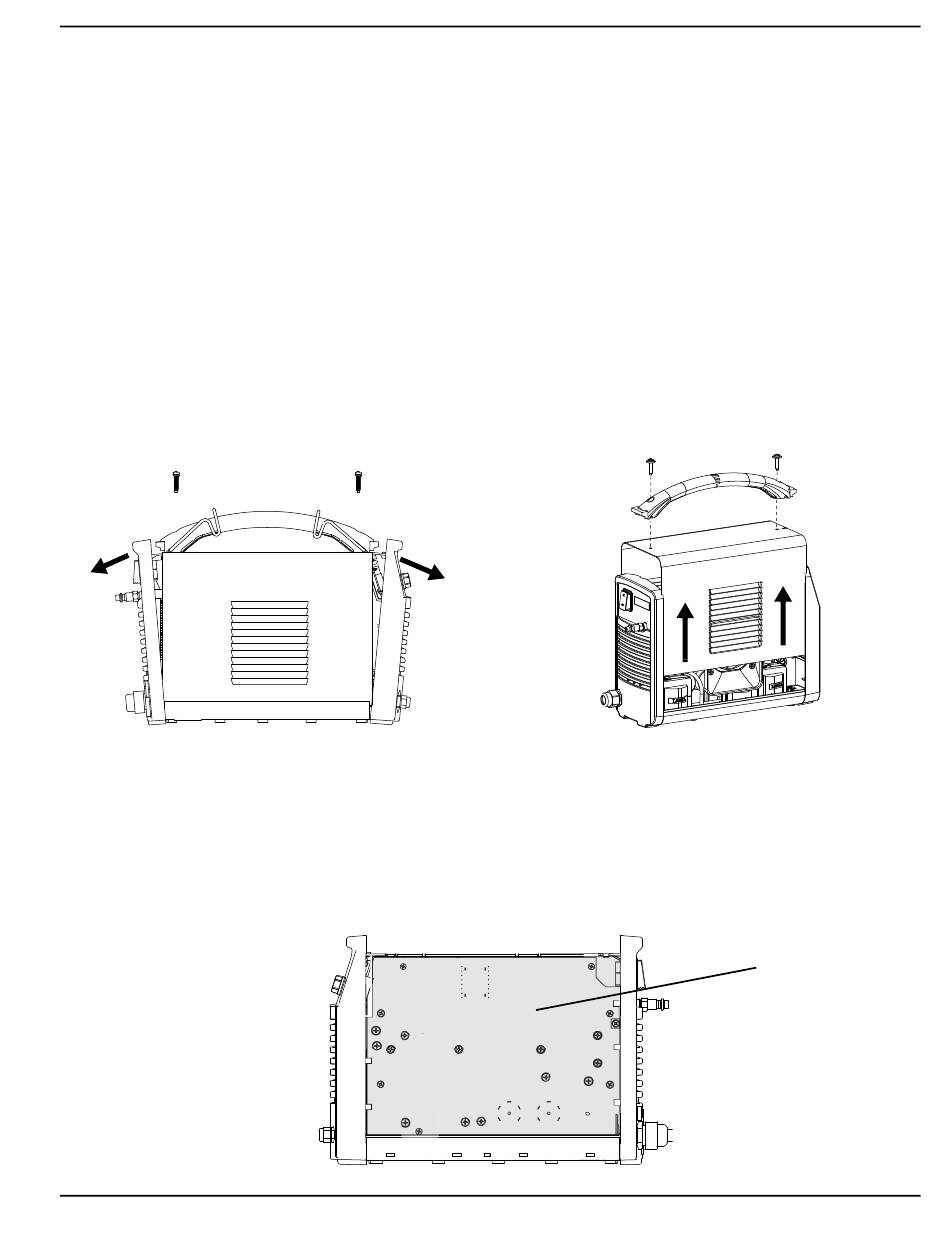

Figure 1
Figure 2
Powermax30/Powermax30 XP Field Service Bulletin 805310
Component barrier
