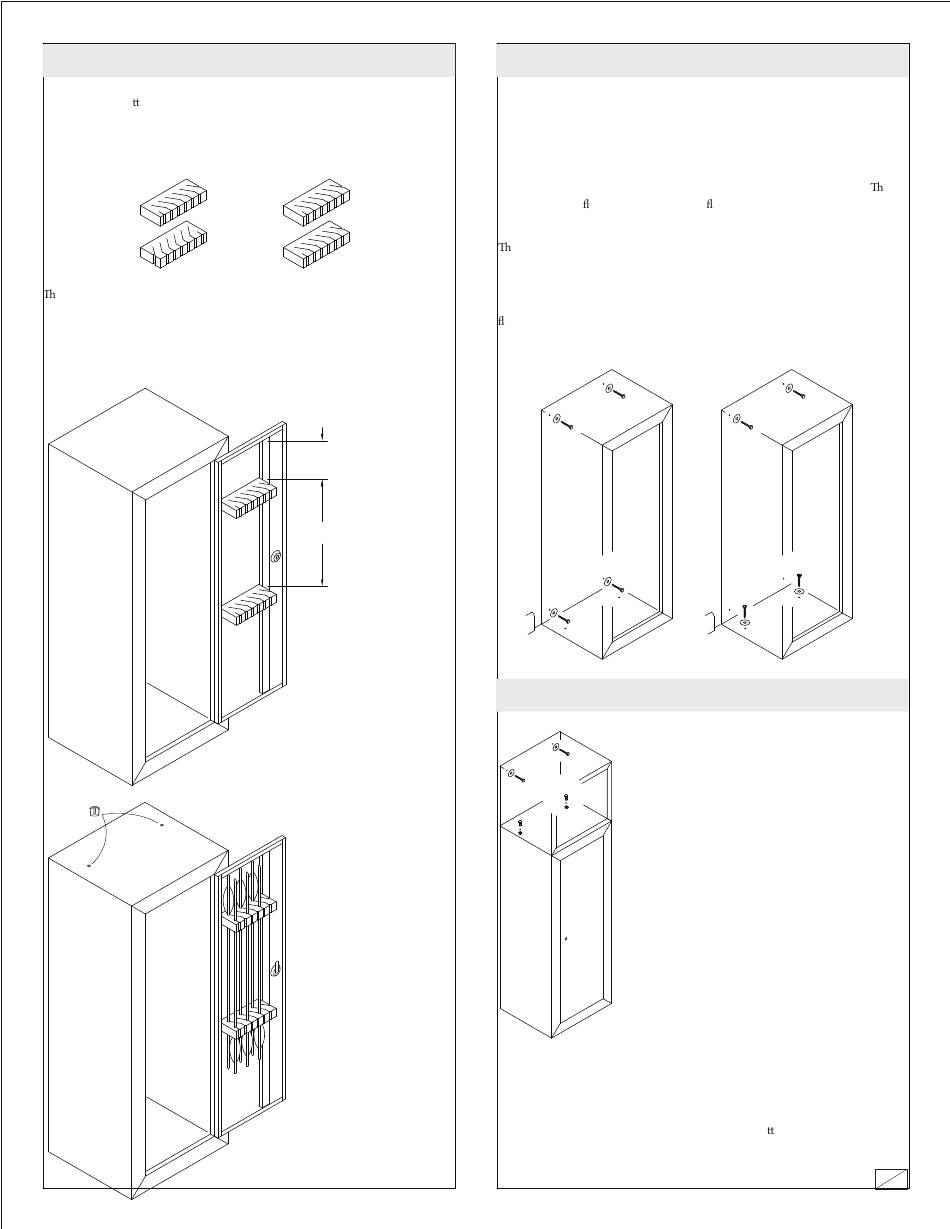

OPTIONAL ARROW HOLDER INSTALLATION
For best results, a ach the pair of arrow holders on the inside of the door at the
dimensions shown.
Both holders must have the slots run in the same direction.
Incorrect
e foam arrow holders have an adhesive coating that is covered by a
removable backing. Before removing the backing, mark the location of the
foam arrow holders on the door at the dimensions shown. To remove the
backing, pinch the backing and the foam together in one corner before starting
to remove the backing.
Correct
7 1/4"
[184mm]
20"
[508mm]
You can store up to 12
arrows if you alternate the
arrows as shown.
Insert the 2 hole plugs in
the top if you are not going
to install the optional
accessory cabinet.
CABINET INSTALLATION
Before you install the cabinet to a wall, install the center partition and shelving,
foam lining and bow hangers as desired.
Make sure you have plenty of access and space if you plan to store bows or other
equipment on the outside of the cabinet.
Your cabinet should be installed in an isolated, dry and secure location.
cabinet must be at against the wall and oor. Remove the baseboard if
necessary.
e mounting holes in the back of the cabinet are on 16" centers to line up
with typical wall studs. Drill new holes if necessary to line up with your stud
spacing.
Drill 3/16" pilot holes and mount your cabinet to the wall or the wall and the
oor with the lag bolts and washers as shown.
OPTIONAL ACCESSORY GEAR CABINET
If you purchase the accessory gear cabinet that
mounts on top of the bow cabinet, follow the
accessory cabinet's instruction for installation.
IMPORTANT
Keep keys in a secure place, away from children. Keep this record of your
serial number in a secure place separate from your cabinet. To order a
replacement key set, follow the instructions on the a ached form.
STACK-ON PRODUCTS COMPANY
P.O. BOX 489
WAUCONDA, IL 60084
