STORE-AWAY STERNAL D-RING ADJUSTMENT: Some ExoFit Strata Harness models are equipped with a Store-Away
Sternal D-Ring (see Figure 11). The Store-Away D-Ring folds fl at against the Chest Strap when not in use, folds out
perpendicular to the Chest Strap when in use. It can slide from side to side along the Chest Strap for proper positioning.
IMPORTANT:
(51 mm) of the vertical centerline of the Full Body Harness.
3.7
TOOL BAG ATTACHMENT: Figure 12 illustrates attachment of a Tool Bag on the ExoFit Strata Harness. To mount the
Tool Bag on the harness, thread the Waist Belt on the harness through the Belt Loops on the Hip/Lumbar Pad and Tool
Bag.
IMPORTANT:
Limitations".
3.8
DONNING AND FITTING THE EXOFIT STRATA FULL BODY HARNESS: Figure 13 illustrates donning and fi tting
of the ExoFit Strata Full Body Harness. Prior to each use, inspect the harness per the checklist on the "Inspection and
Maintenance Log (Table 1)". To don and fi t the harness:
NOTE:
Procedures for buckling and adjusting the straps on the ExoFit Strata Harness will vary with the harness model. See Sections
3.3 thru 3.4 and Figures 8 thru 9 for details.
1.
Lift up and hold the harness by the back Dorsal D-Ring on the Easy-Link System. Ensure the straps are not twisted.
2.
Grasp the Shoulder Straps and slip the harness onto one arm. The Dorsal D-Ring will be located on your back side.
Ensure that the straps are not tangled and hang freely. Slip your free arm into the harness and position the Shoulder
Straps on top of your shoulders. The Chest Strap and Chest Buckle will be positioned on the front side when worn
properly.
All Single Point Attachment Elements (Sternal D-Ring, Dorsal D-Ring. etc.) shall be located laterally within 2 in.

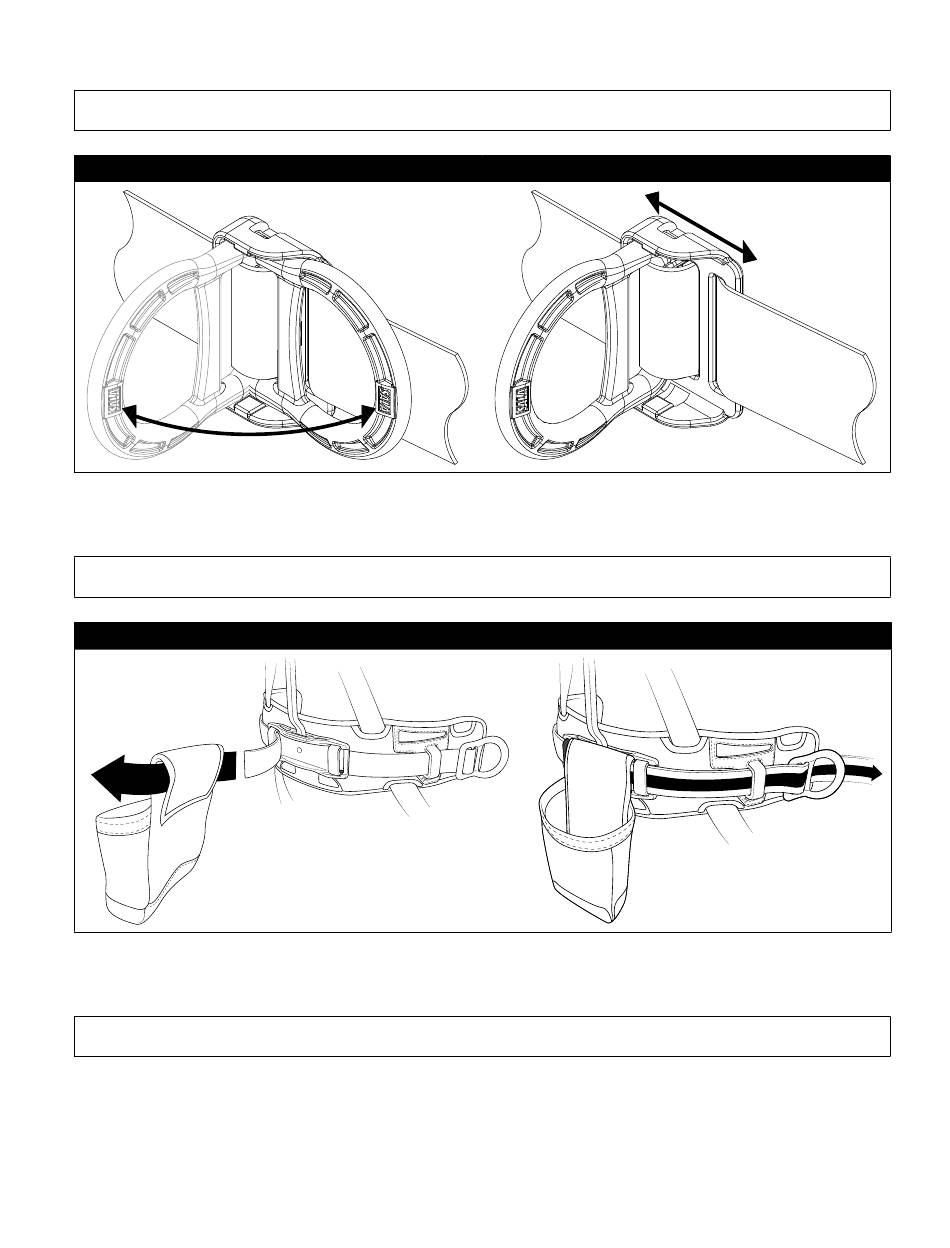

Figure 11 – Store-Away Sternal D-Ring
Combined weight of the harness wearer, clothing, tools, etc. shall not exceed the 'Capacity' stated in "Section 1.4
Figure 12 –
Tool Bag Attachment
