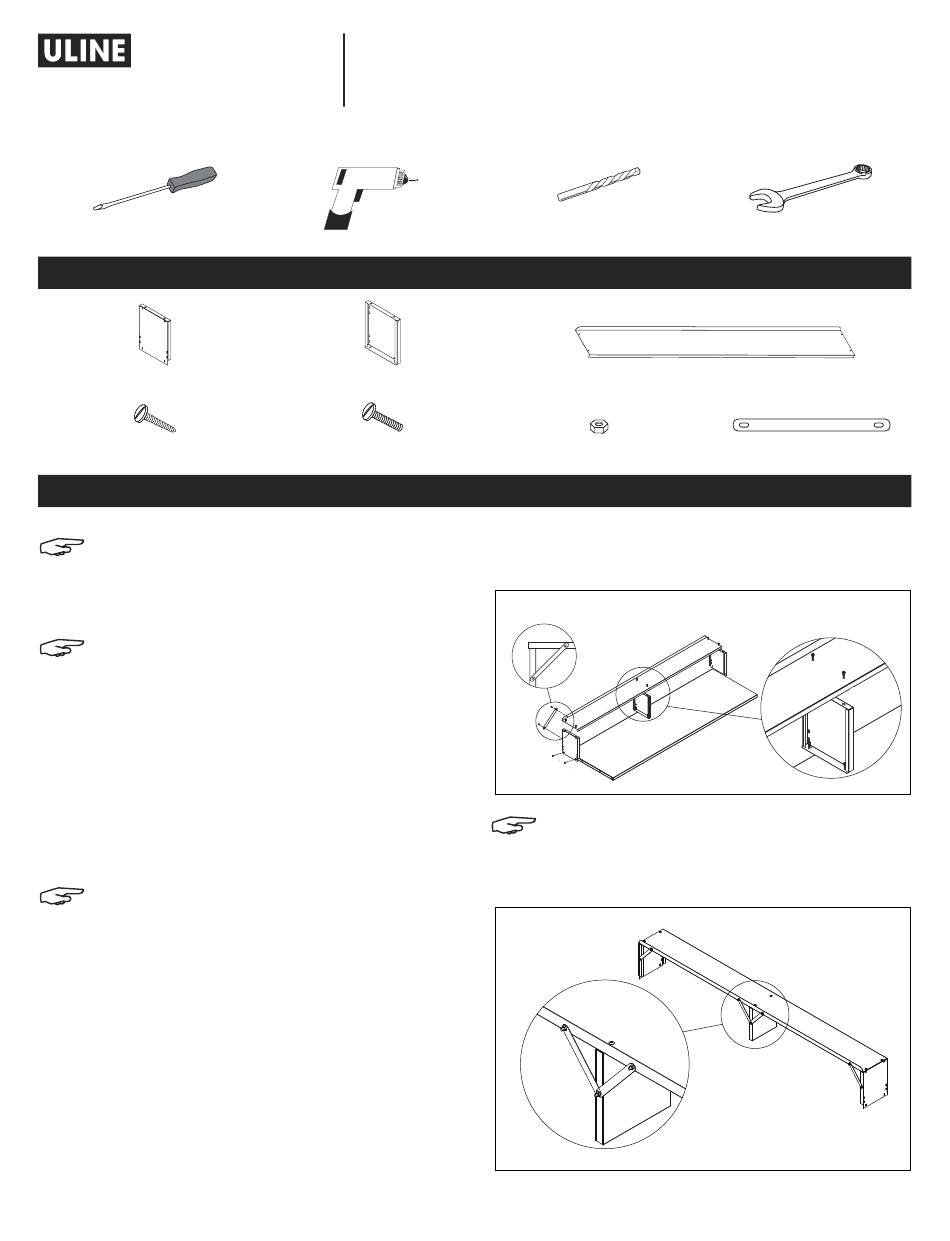

PACKING TABLE SHELF
TOOLS NEEDED
Flat Head
Screwdriver
Riser Support x 2
#14 x 3/4" Wood Screw x 6
NOTE: Table should be in upright position.
1. Secure riser supports to top end using four
1/4–20 x 5/8" bolts and nuts for steel tops or four
#14 x 3/4" wood screws for non-steel tops.
NOTE FOR NON-STEEL TOPS ONLY: Prior to
attaching wood screws, drill two pilot holes into
the bench through the holes at the bottom of
the riser support using a 3/16" drill bit.
2. Secure riser shelf to supports using two 1/4–20 x 5/8"
bolts and nuts on each end.
3. Align the riser center support beneath the center
holes in the riser shelf, and mark the location of
the two screw holes on the bench top. Remove the
center support and drill pilot holes using a 3/16" drill
bit for non-steel tops and a 5/16" drill bit for steel tops.
NOTE: It may be necessary to remove the riser
shelf to drill straight down.
4. Attach the center support to the riser shelf using two
1/4–20 x 5/8" bolts and nuts. Attach to bench top
using two #14 x 3/4" wood screws (for non-steel tops)
or two 1/4–20 x 5/8" bolts and nuts (for steel tops).
(See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Electric Drill
PARTS
Center Support x 1
1/4"–20 x 5/8" Bolt x 20
ASSEMBLY
5. Secure sway braces to riser support and riser shelf
Pour le français, consulter les pages 5-6.
5/16" drill bit (steel only)
3/16" drill bit (non-steel only)
Riser Shelf x 1
1/4"–20 Nut x 20
using four 1/4–20 x 5/8" bolts and nuts. (See Figure 1)
Figure 1
NOTE: Optional sway braces included for
center support for additional stability. Secure
using three 1/4-20 x 5/8" bolts and nuts.
(See Figure 2)
Figure 2
