S&P CONTROL ECOWATT Mode D'emploi page 13

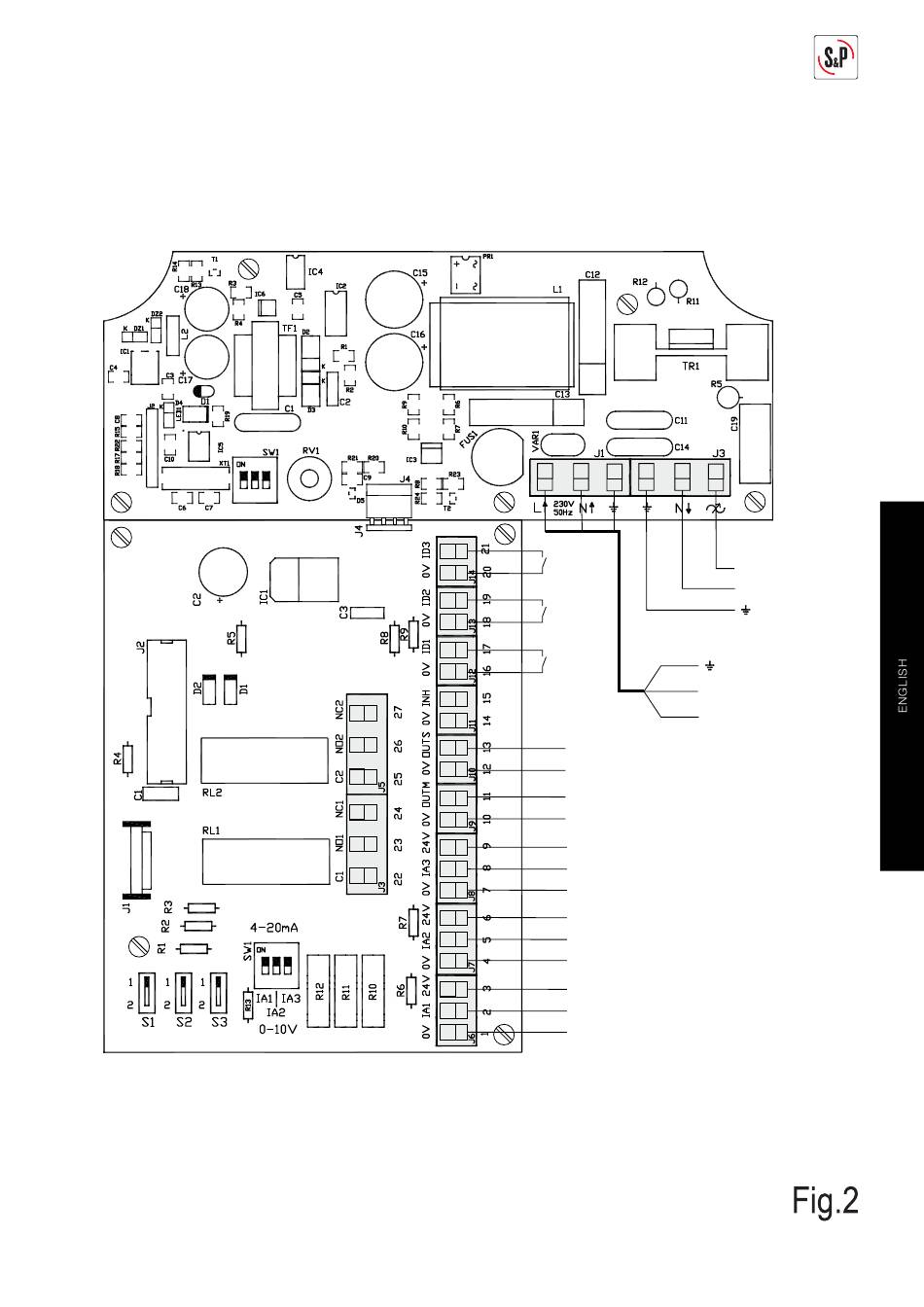

CONTROL ECOWAT AC/4A
}
Digital
input E3
}
Digital
input E2
}
Digital
input E1
N
L
}
OUT
"Slave" output
0-10V
GND
}
OUT
"Master" output
0-10V
GND
}
+V
Analogical
input S3
IN
0-10V/4-20mA
GND
+V }
Analogical
IN
input S2
0-10V/4-20mA
GND
}
+V
Analogical
IN input S1
0-10V/4-20mA
GND
L }
Single phase
motor output
N
230V 50Hz
}
Main supply
230V 50Hz
13
