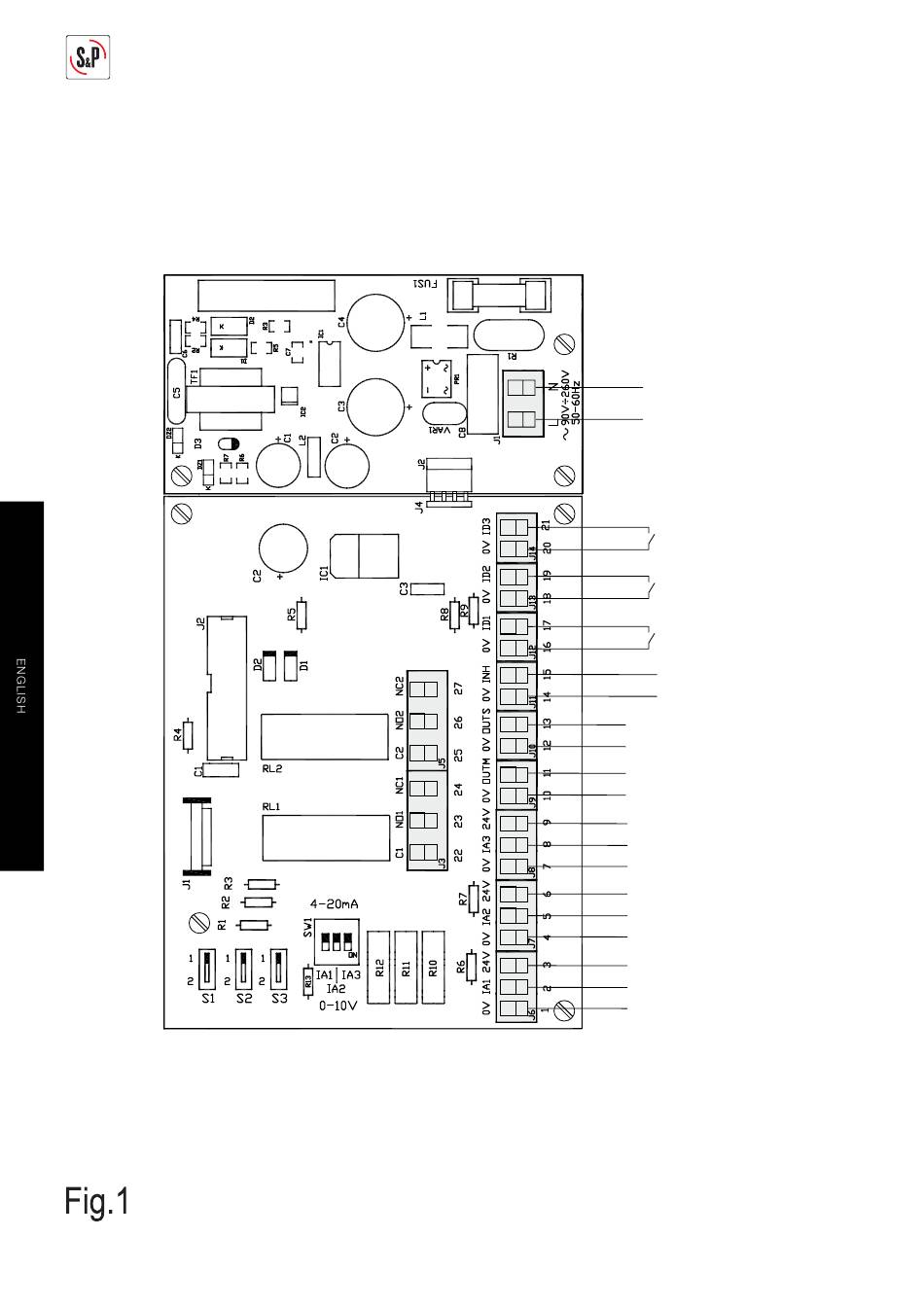

CONTROL ECOWAT AC/DC
12
}
N
Main supply
90-230V 50/60Hz
L
}
Digital
input E3
}
Digital
input E2
}
Digital
input E1
}
"Hall"
input
}
OUT
"Slave" output
0-10V
GND
}
OUT
"Master" output
0-10V
GND
}
+V
Analogical
input S3
IN
0-10V/4-20mA
GND
+V }
Analogical
IN input S2
0-10V/4-20mA
GND
}
+V
Analogical
IN input S1
0-10V/4-20mA
GND
