EN
Motoverrou
IP protection: IP57
Input voltage: 12 to 18V AC/DC
Consumption in rush: 410 mA max.
Consumption in stand-by: 20 mA
Consumption of operation: 10 mA IP57
Audible signal with beep when door unlocked
Relcoking if door not opened after 5 beeps (8sec)
The motorized lock has a built-in position sensor to detect the strike plate posi-
tion and then to lock when the door is closed. To unlock the door, use the knob
or the access control system (Keypad, proximity reader, push button...) When
the door is closed, the bolt must be aligned to the strike plate. Misalignement
between the lock bolt and keep will cause repeated attempts to lock until it is
aligned correctly.

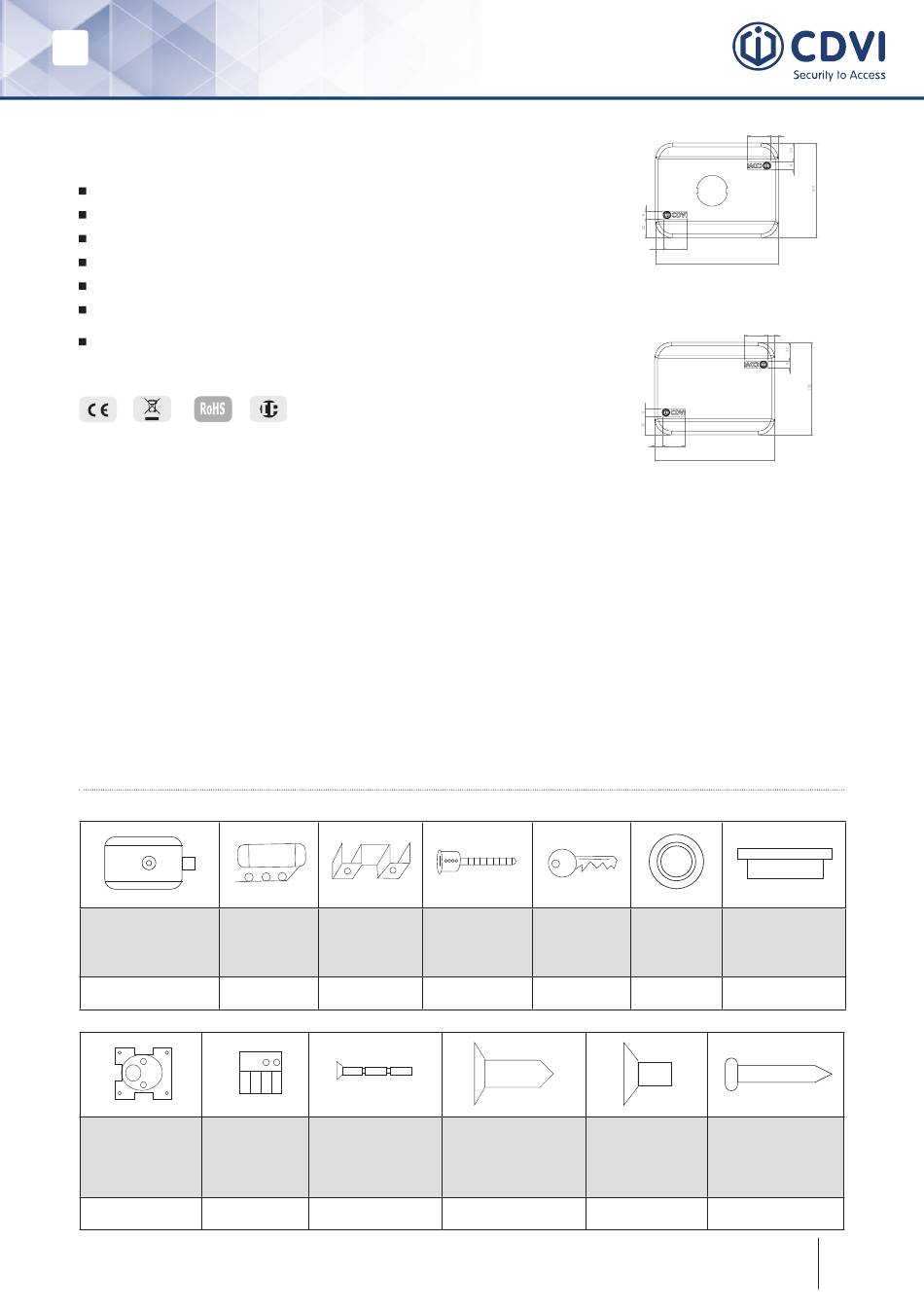

1] MOUNTING KIT
Lock
1
Fixing
Terminal
plate
1
MVM, MVA et MVM2C
®
IP57
Strike
Bracket
plate
1
1
L - -
L
+
+
Screws
adjustable
length
1
2
MVA-MVM-MVMC
Motorized Lock
MVM, Motorized lock with knob
MVA, Motorized lock without knob
Cylinder
Keys
1
3
Zinc screw
strike plate
mounting
5
24,9
8
8
24,9
130
24,9
8
8
24,9
130
Mounting
Washer
guide
1
1
Spare
Screws lock
screws
mounting
2
4
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son aut
This document is the exclusive property of CDVI and it may not be disclosed to others without permiss
SCA
MVM
Mechanical Engraving
Material : ...
General tol :
0.1
Surface roughness: Ra 3,2
3
DES.: W. Sainvil
Vol. (mm
) :
Mass (g) :
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisati
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
SCALE 1
MVA
Mechanical Engraving
A3
Material : ...
General tol :
0.1
Surface roughness: Ra 3,2
3
DES.: W. Sainvil
Vol. (mm
) :
Mass (g) :
5
