KCPROXWLC
Stainless Steel Proximity Card Reader & Keypad

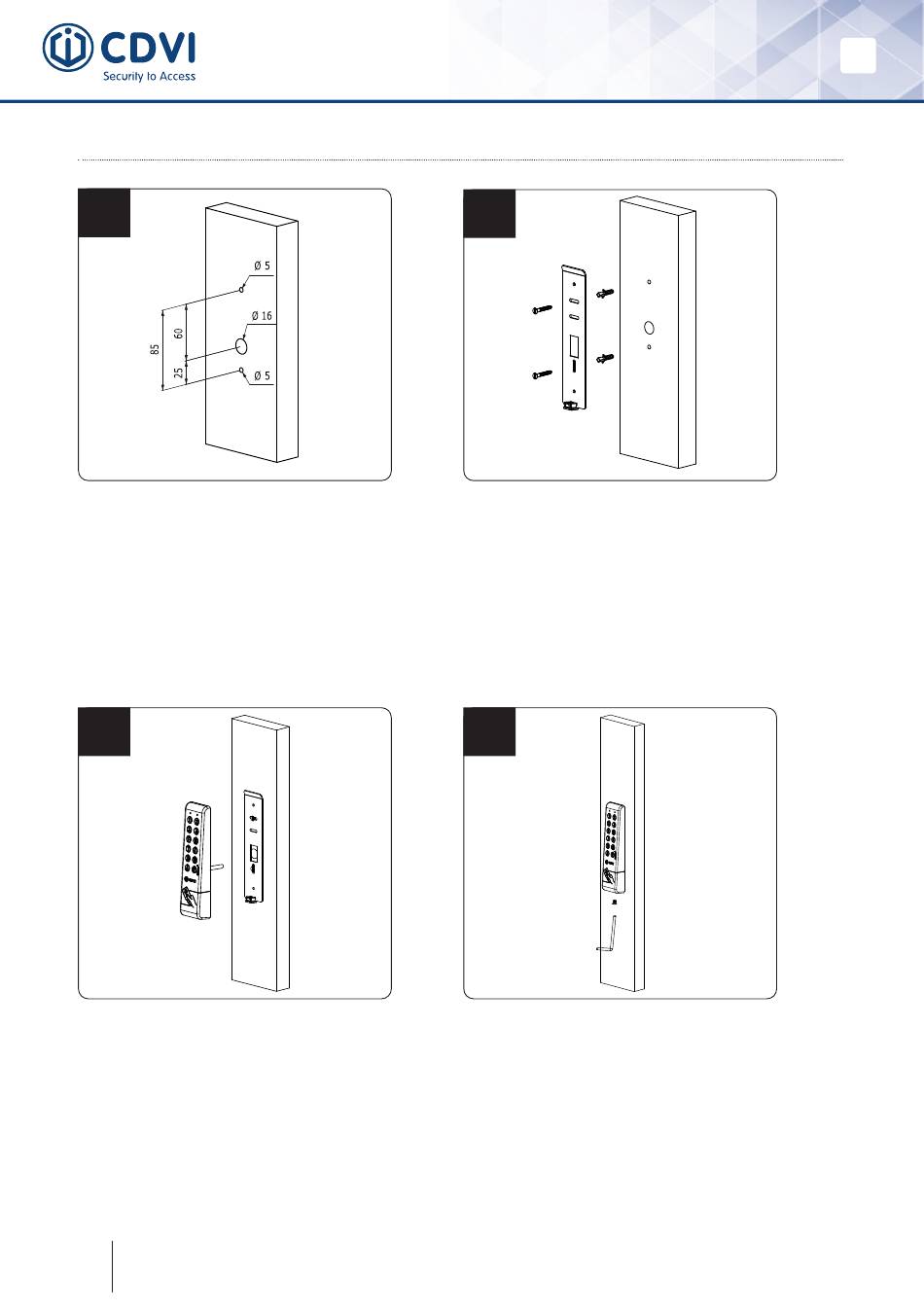

5] INSTALLATION
1
Place the KCPROXWLC's back plate
on the wall.
Then mark the hole locations with
a pen.
Then drill the 2 mounting holes
and the hole wiring access.
3
Insert the cable in the hole access
area of the back plate.
Then mount the keypad on the
back plate.
The recommended mounting height is 140 cm.
NOTE: Keep at least 60cm between two readers.
6 6
2
Insert the 2 plastic anchors in the
holes.
Mount the back plate with the
screw on the wall.
4
Tighten the KCPROXWLC keypad
to the back plate with the M5x8
screw and the T20 spanner.
