SYMBOLS
Read the manual before using the tool.
Wear hearing protection.
SAFETY INSTRUCTIONS
Warning: Read the manual carefully before use. Failure to follow the warnings and instructions may result in injury and/or damage to
property. Save the manual in a safe place for future reference.
• When sprayed, some materials produce toxic fumes, which can be harmful. Always wear safety glasses, gloves, respiratory protection, etc., to minimize the
risk of personal injury caused by the inhalation of toxic fumes or from contact of solvents/paint with the skin or eyes.
• Never use oxygen, combustible gases or any other bottled gas to power the tool. This can cause serious injuries.
• Paint and solvents can be highly flammable. Only use in a well‐ventilated paint spraying booth. Avoid ignition sources (lighted cigarettes, naked flames,
electrical sparks, etc.).
• Disconnect the air hose from the tool before performing maintenance and when the tool is not in use, to prevent it from being started accidentally. The
installation of a ball valve on the compressed air line close to the spray gun is recommended.
• This tool is designed to operate on clean, dry, compressed air at regulated pressures between 3‐4 bar.
• Only use parts, nozzles and accessories that are recommended by the manufacturer.
• Check that all screws and covers are fitted correctly and do not leak before using the tool.
• Check daily that the trigger and nozzle function correctly.
• Do not use solvents that contain homogenate hydrocarbons that can react chemically with elements of aluminium or zinc and cause an explosion.
• Never modify the product in any way.
SPECIFICATIONS
Technical Data
Model
Cup capacity
Max. working pressure
Average air consumption
Nozzle
OPERATION

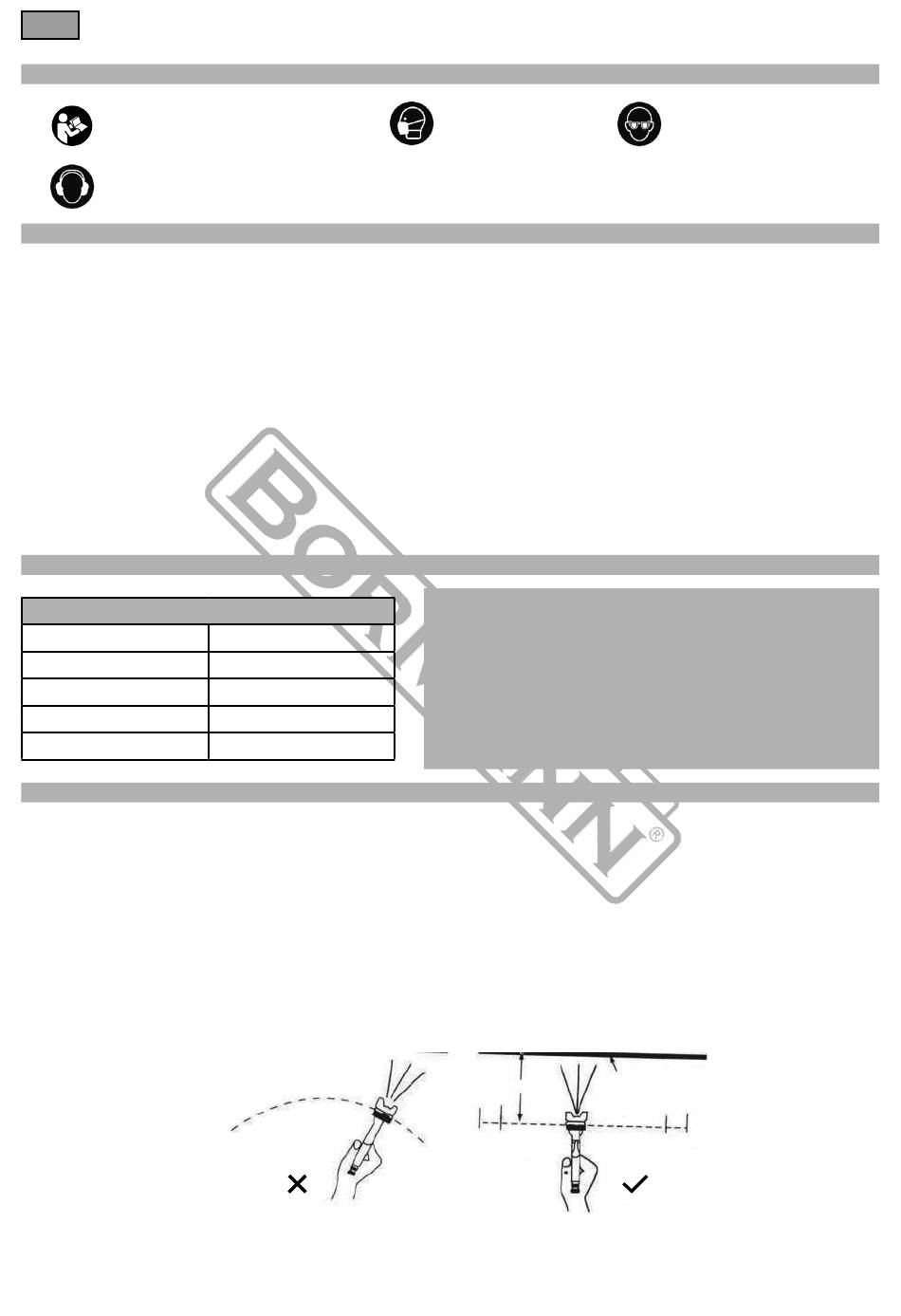

Using the spray gun (fig. 1)
• This tool is designed to operate on clean, dry, compressed air at regulated pressures between 3.0‐4.0 bar.
• Inspect the tool for damaged or worn parts and replace any damaged or worn parts.
• Make sure that the trigger and nozzle functions properly.
• Keep the tool at an appropriate distance from the workpiece. A suitable distance is 15‐20 cm, depending on the air pressure and the task at hand.
• Hold the spray gun perpendicular to the workpiece and move it back and forth in parallel, horizontal lines.
• The trigger should be released before the spraying movement is ended.
1. Start moving the spray gun.
2. Squeeze the trigger.
3. Release the trigger.
4. Stop moving the spray gun.
Important: Too high or too low air pressure can damage the tool and give an unsatisfactory result.
Coating will be light
2
BAT6135
0.6 L
45 - 60 psi
4.2 - 7.1 cfm
Φ1.8 mm
Coating will be heavy
at this point
at this point
WWW.NIKOLAOUTOOLS.COM
Wear a dust mask.
* The manufacturer reserves the right to make minor changes to product design and technical specifications
without prior notice unless these changes significantly affect the performance and safety of the products. The
parts described / illustrated in the pages of the manual that you hold in your hands may also concern other
models of the manufacturer's product line with similar features and may not be included in the product you
just acquired.
* To ensure the safety and reliability of the product and the warranty validity, all repair, inspection, repair or
replacement work, including maintenance and special adjustments, must only be carried out by technicians of
the authorized service department of the manufacturer.
* Always use the product with the supplied equipment. Operation of the product with non‐provided
equipment may cause malfunctions or even serious injury or death. The manufacturer and the importer shall
not be liable for injuries and damages resulting from the use of non‐conforming equipment.
15-20 cm
Start of
Pull
movement
trigger
Fig. 1
Wear safety glasses.
Coating should be even
and wet when spraying
Movement
Release
End of
trigger
movement
