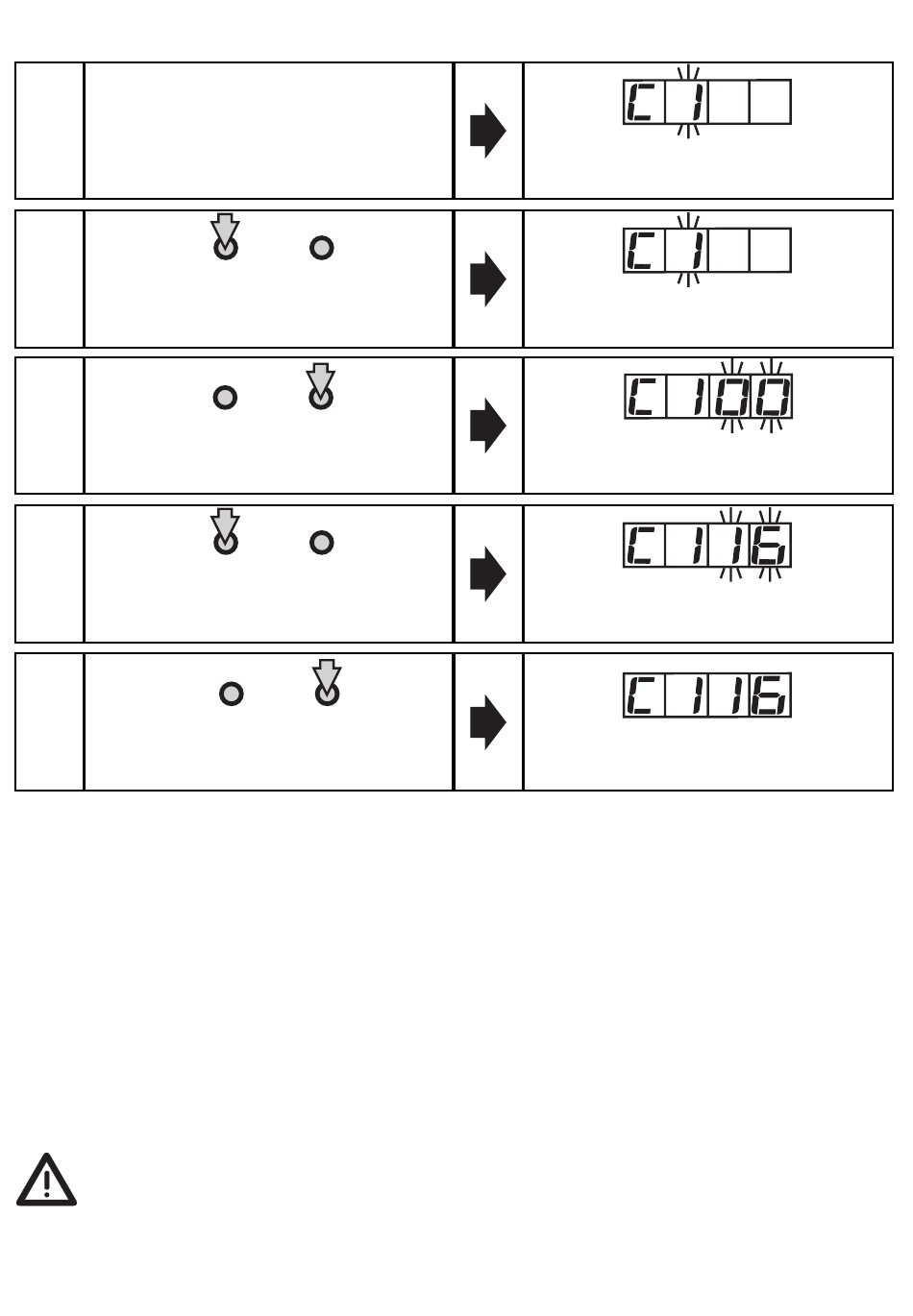

C Set data lengths for the DeviceNet coupling
1
(operating step 0/1)
2
Press several times until
requested setting is displayed
3
4
Press several times until
requested setting is displayed
5
(= acknowledgment)
Possible settings:
C1 = AS-i 1:
C2 = AS-i 2:
CC = signal preprocessing: 0,4,8,12,16,24,28 or 32 bytes data length
Setting in the factory (corresponds to the Gateway mode)
C1 = 16
C2 = 16
CC = 00
Disconnect the controller once to activate the changed data or
confirm the controller address A once again.
26
PAGE
Select mode
Mode Set
Mode Set
Press once
Mode Set
Mode Set
Press once
0 ... 16 bytes data length in steps of 1 byte
0 ... 16 bytes data length
Display of preset
value flashing
Display of newly selected
setting flashing
Display of set data length
Display of newly selected
setting flashing
New setting is stored
