Alpha 800 Handbook

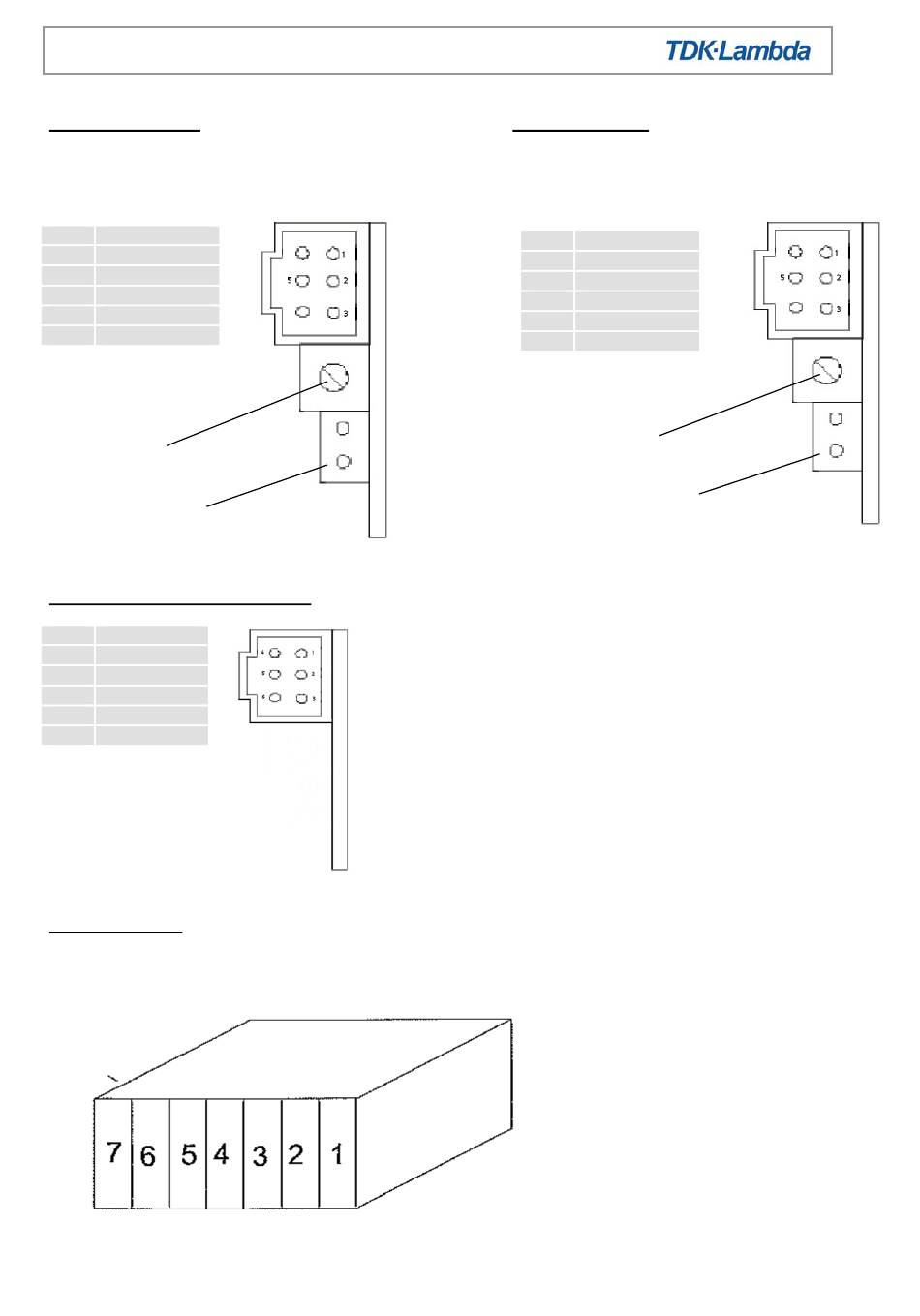

Option: PA- Parallel
Connector:
Six way Molex, 90142-0006.
Crimp terminals: 90119-2109.
1 +ve sense
2 Module Good
3 Star Point
4 -ve sense
5 -ve power
6 Star Point
Module good
adjustment
Module good link (J3)
Option: RP- Remote Programming
1 +ve sense
2 -ve sense
3 Control 2
4 NC
5 Control 1
6 NC
Module Positions
4
6
Page 27 of 28
Option: IN- Inhibit
Connector:
Six way Molex, 90142-0006.
Crimp terminals: 90119-2109.
1 Not connected
2 Module Good
3 Inhibit input
4 Not connected
5 -ve O/P
6 -ve O/P
Module good
adjustment
Module good link (J3)
4
6
17026 issue 20, April 2016
