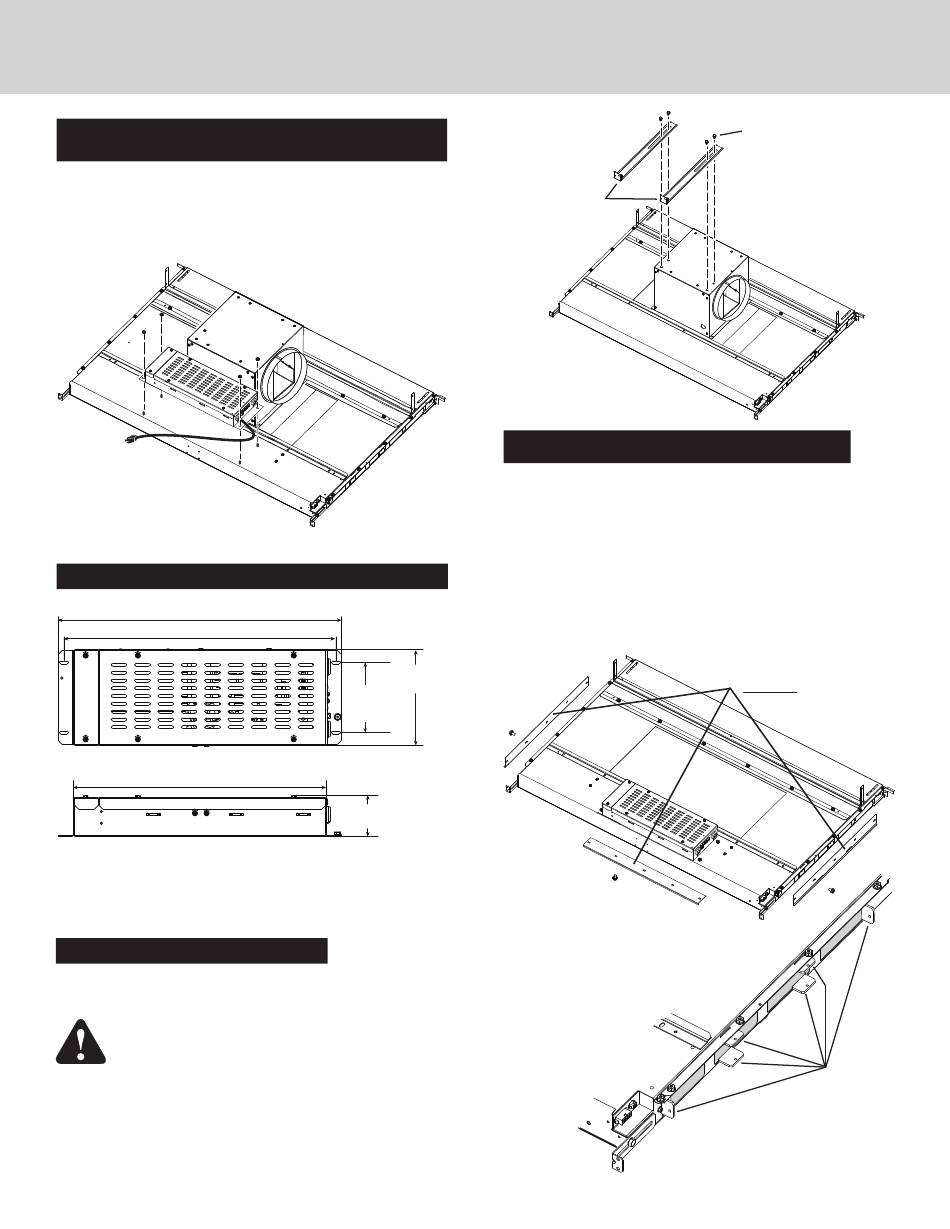

Viking Range 5 Serie Guide D'installation page 6

Installations where ELECTRICAL PANEL needs to be
mounted in a remote location only:
6. Remove (4) HEX NUTS and ELECTRICAL PANEL. 5-ft.
extension cables (purchase separately) may be needed to
mount electrical panel in a remote location. Do not use more
that 2 extension cables. Do not mount electrical panel with
vent holes facing down.
Electrical Panel Dimensions
18-3/16" (46.2 cm)
17-7/16" (44.3 cm) Slot Center
16-1/4" (15.9 cm)
Installations using FLEX BLOWER only:
7. Attach BLOWER SUPPORT LEGS with (4) SCREWS
provided.
CAUTION: If flex blower will be mounted remotely:
Do not use legs alone for support. It may be
necessary to add extra support for the flex blower.
Use mounting brackets supplied with the blower.
Installations ducting through left, right or rear only:
(Requires purchase of 2" x 19" to 8" or 10" round transition and
2" x 19" rectangular duct cut to appropriate length.)
8. Remove only one RECTANGULAR DISCHARGE COVER.
9. Beneath the rectangular discharge cover just removed - Use
pliers to bend (6) tabs outward 90 . Use these tabs to connect
2" x 19" rectangular ductwork or 2" x 19" to 8" or 10" round
transition to housing when installing ductwork.
6-1/4"
(15.9 cm)
4-1/2"
(11.4 cm)
Slot Center
6-5/8"
(16.8 cm)
6
BLOWER
SUPPORT
LEGS
(Cut aluminum tape and remove
This Front Panel
remains in place.
(4) SCREWS
RECTANGULAR
DISCHARGE COVERS
only one cover.)
(6) TABS
Ducting out right side of
housing shown.
