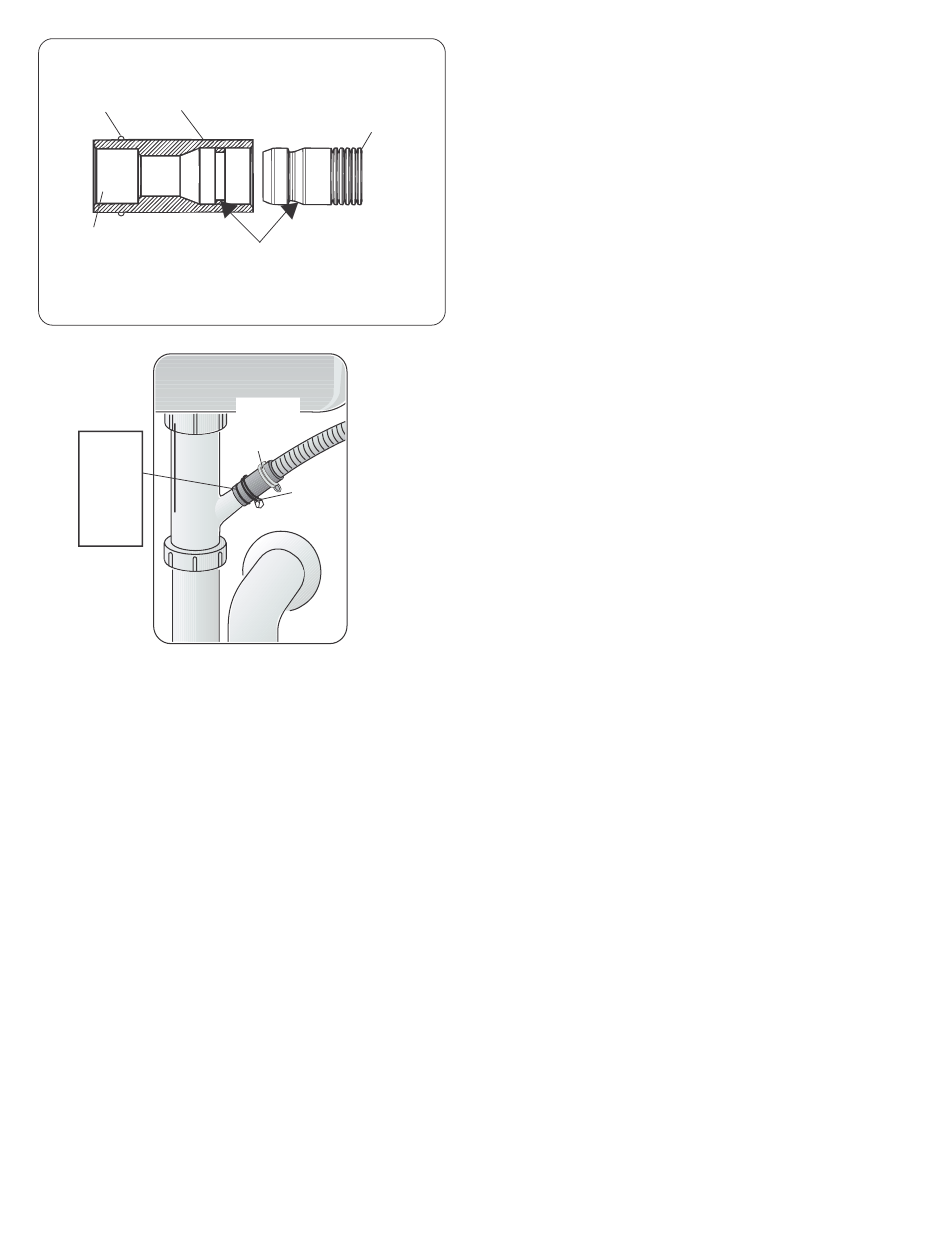

Rubber Drain Hose Adaptor
(cross section)
Raised Rib
Connects to
household plumbing
Figure 12
Raised
Rib on
Outside
of Drain
Hose
Adaptor
10
All manuals and user guides at all-guides.com
Dishwasher
Drain Hose
Insert until drain
hose locks in place
Spring
Clamp
Screw
Clamp
Figure 13
Plumbing
Installation of the Rubber Drain Hose
Adaptor
1 Obtain the Rubber Drain Hose Adaptor and the two
hose clamps from the Dishwasher Installation Kit (do
not substitute).
2 On one outside end of the Rubber Drain Hose Adapter
is a raised rib. Insert the dishwasher drain hose into
the end without the raised rib (see Figure 12). Be
sure to fully insert the drain hose.
3 Secure the connection with the Spring Clamp (see
Figure 13).
4 Use the Screw Clamp to attach the Rubber Drain Hose
Adaptor to the house plumbing (see Figure 13).
