uni 14_/22_/20_95RF «Classic»

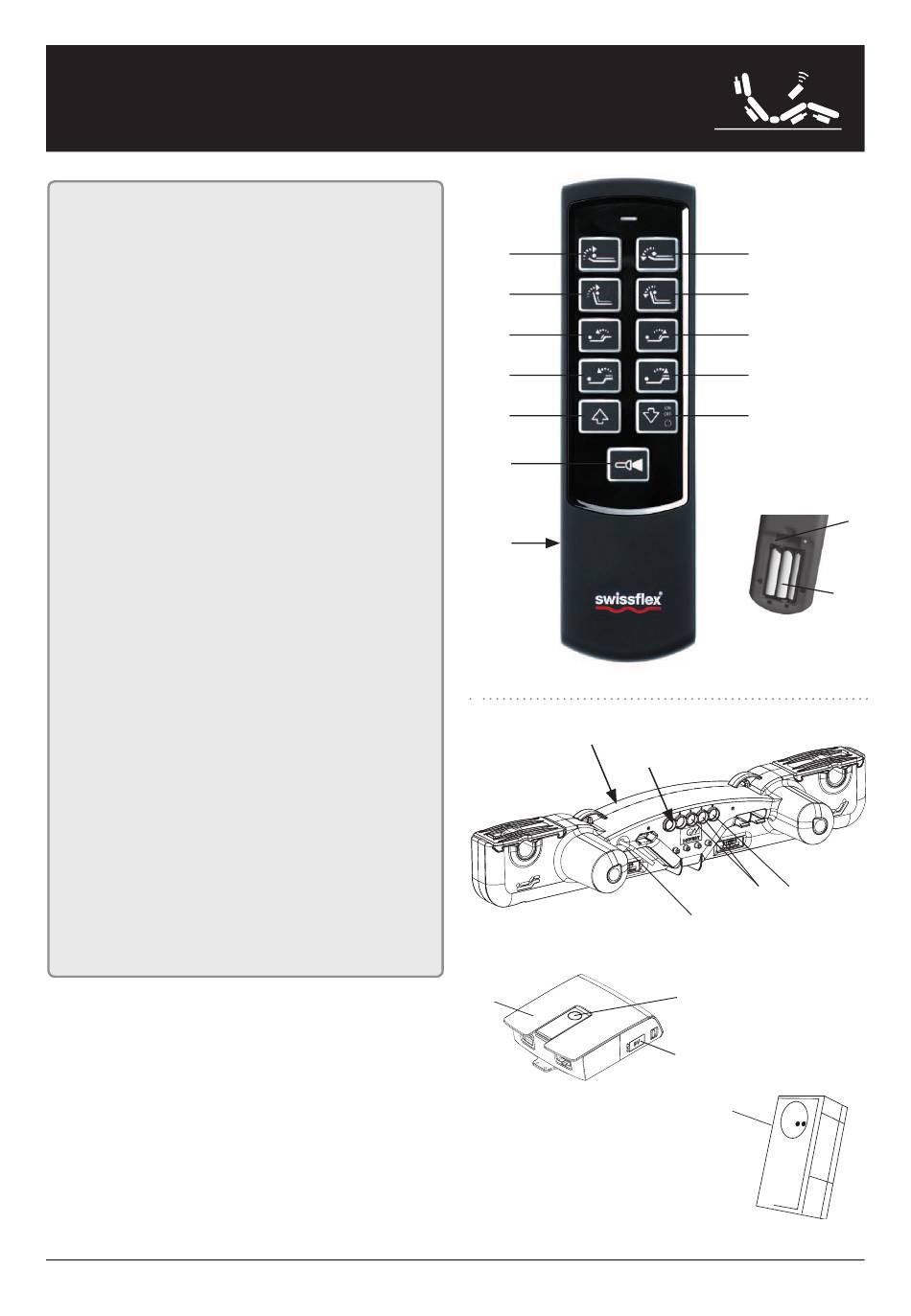

Radio remote control «Classic»
1 Control system head section «up»
2 Control system head section «down»
3 Control system back section «up»
4 Control system back section «down»
5 Control system thigh section «up»
6 Control system thigh section «down»
7 Control system calf section «up»
8 Control system calf section «down»
9 All motors «up»
10 All motors «down»
11 Pocket lamp
12 Battery compartment (on the back of the
radio remote control)
13 3 x AAA-Battery (included in the delivery)
1 + 2 Floor lighting
3 + 4 User socket on / off
10 + 11 Activating / disabling the sync
function
Motor control
14 Sync cable connection
15 Emergency light (internal)
16 Connection for mains supply unit / Con-
nection for external under-floor lighting
17 Connection for auxiliary motors
18 Emergency light (internal, back of the
motor)
19 Switching power supply
20 Battery compartment for emergency
lowering (2 x 9V)
21 Emergency lowering button / teach-in
button
22 User socket (optionally)
EN
All manuals and user guides at all-guides.com
19
1
3
5
7
9
11
12
18
15
Operating instructions
uni 21_95RF
2
4
6
8
10
12
13
17 14
16 (2 cables)
21
20
22
