swissflex uni 14_95RF bridge Mode D'emploi page 20

uni 14_/22_/20_95RF «Touch»

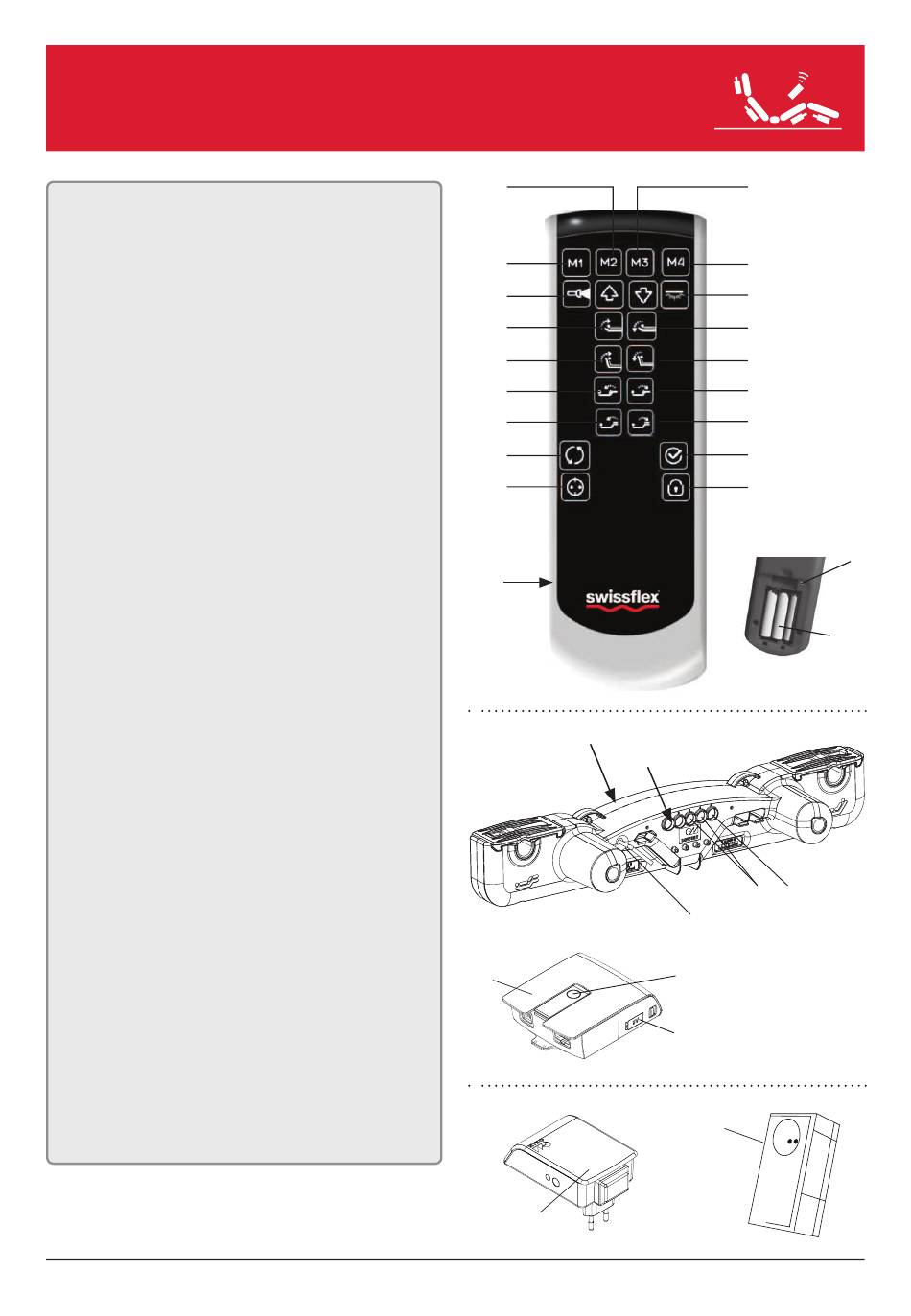

Radio remote control «Touch»
1 Memory position 1
2 Memory position 2
3 Memory position 3
4 Memory position 4
5 Pocket lamp
6 All motors «up»
7 All motors «down»
8 Floor lighting
9 Control system head section «up»
10 Control system head section «down»
11 Control system back section «up»
12 Control system back section «down»
13 Control system thigh section «up»
14 Control system thigh section «down»
15 Control system calf section «up»
16 Control system calf section «down»
17 Activating / disabling the sync function
18 Memory button
19 User socket on / off
20 Key blocking (child safety device)
21 Battery compartment (on the back of the
radio remote control)
In the battery compartment: red teach-in
button
22 3 x AAA-Battery (included in the delivery)
Motor control
23 Sync cable connection
24 Emergency light (internal)
25 Connection for mains supply unit / Con-
nection for external under-floor lighting
26 Connection for auxiliary motors
27 Emergency light (internal, back of the
motor)
28 Switching power supply
29 Battery compartment for emergency low-
ering (2 x 9 V)
30 Emergency lowering button / teach-in but-
ton
31 Bluetooth RF-Gateway (optional)
32 User socket (optionally)
20
Operating instructions
All manuals and user guides at all-guides.com
28
2
1
5, 6
9
11
13
15
17
19
21
27
24
31
uni 21_95RF
3
4
7, 8
10
12
14
16
18
20
22
26 23
25 (2 cables)
30
29
32
EN
21
