1.4 Transportation
When taking your wood burning stove home, please ensure that it travels in an upright position. If you wish to lay it
flat, it is important that you remove all loose parts from the combustion chamber (cast iron grate and loose fireproof
tiles) and remove the ash drawer. Alternatively you could also fill the combustion chamber with excess packaging
so the parts are kept in place.
Please use the wood from the packaging for the first lighting. The plastic packaging must be disposed of.

2.0 Supply of combustion air

When a stove is installed in a room, the demand for air supply in the room raises. See point 4.9. Air from outside
can be provided through a channel, which is connected to the connecting pipe under the combustion chamber. The
3
amount of air needed for combustion is 25m /h.
The connecting pipe has an external diameter of 78 mm, to which you need a pipe with a diameter of 80 mm. If the
pipe work is more than 1 m the pipe diameter must be increased to 100 mm and a correspondingly larger wall
valve must be chosen. In warm rooms the channel should be insulated with 30 mm mineral wool covered with a
damp-proof course (plastic). It is important that the lead-in between the pipe and the wall (or floor) is sealed with
jointing compound.

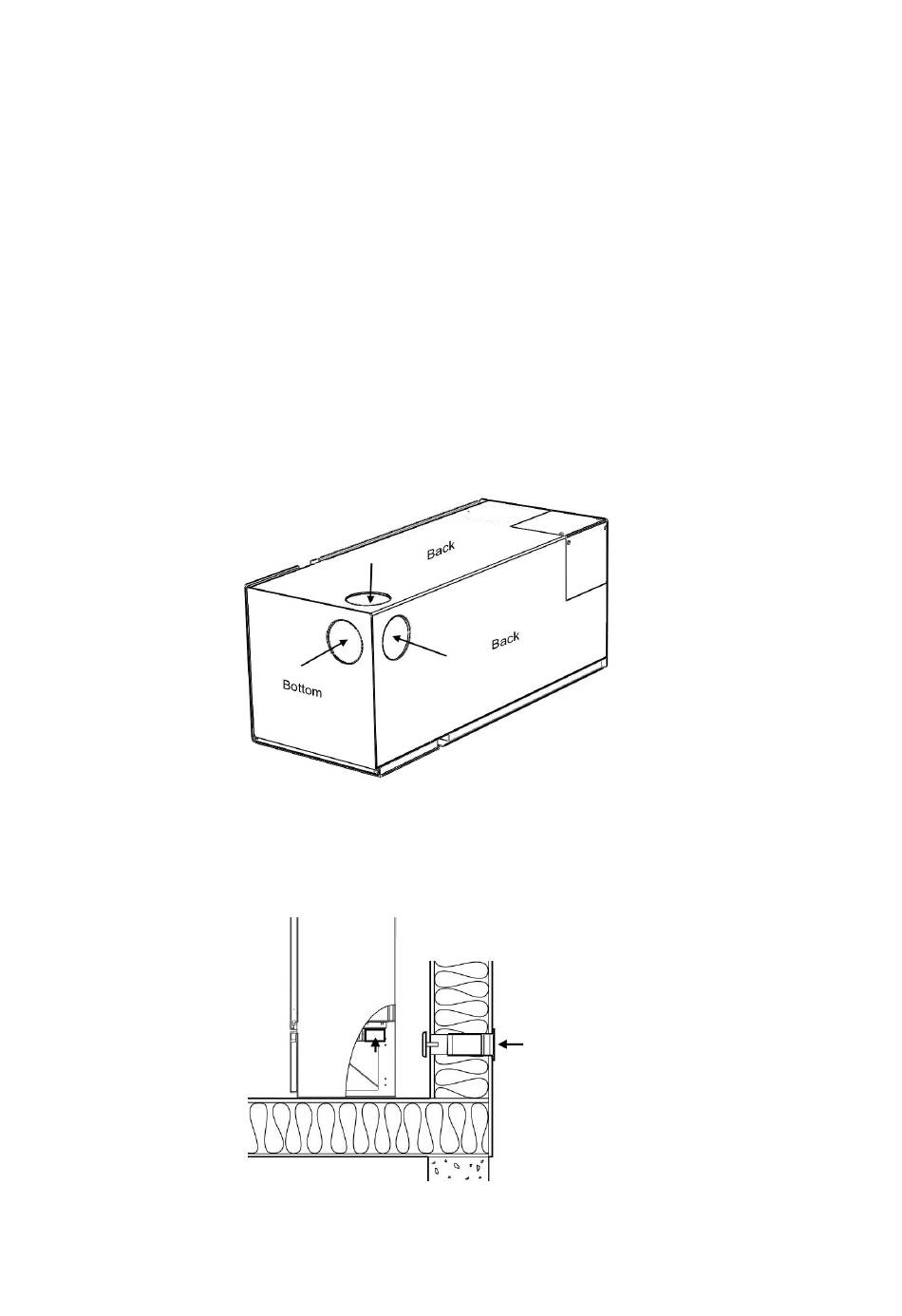

The pipe with external supply of combustion air can be taken out at the bottom of the back side of the stove or
under the stove.
Ways of installation:
Indirect through external wall
