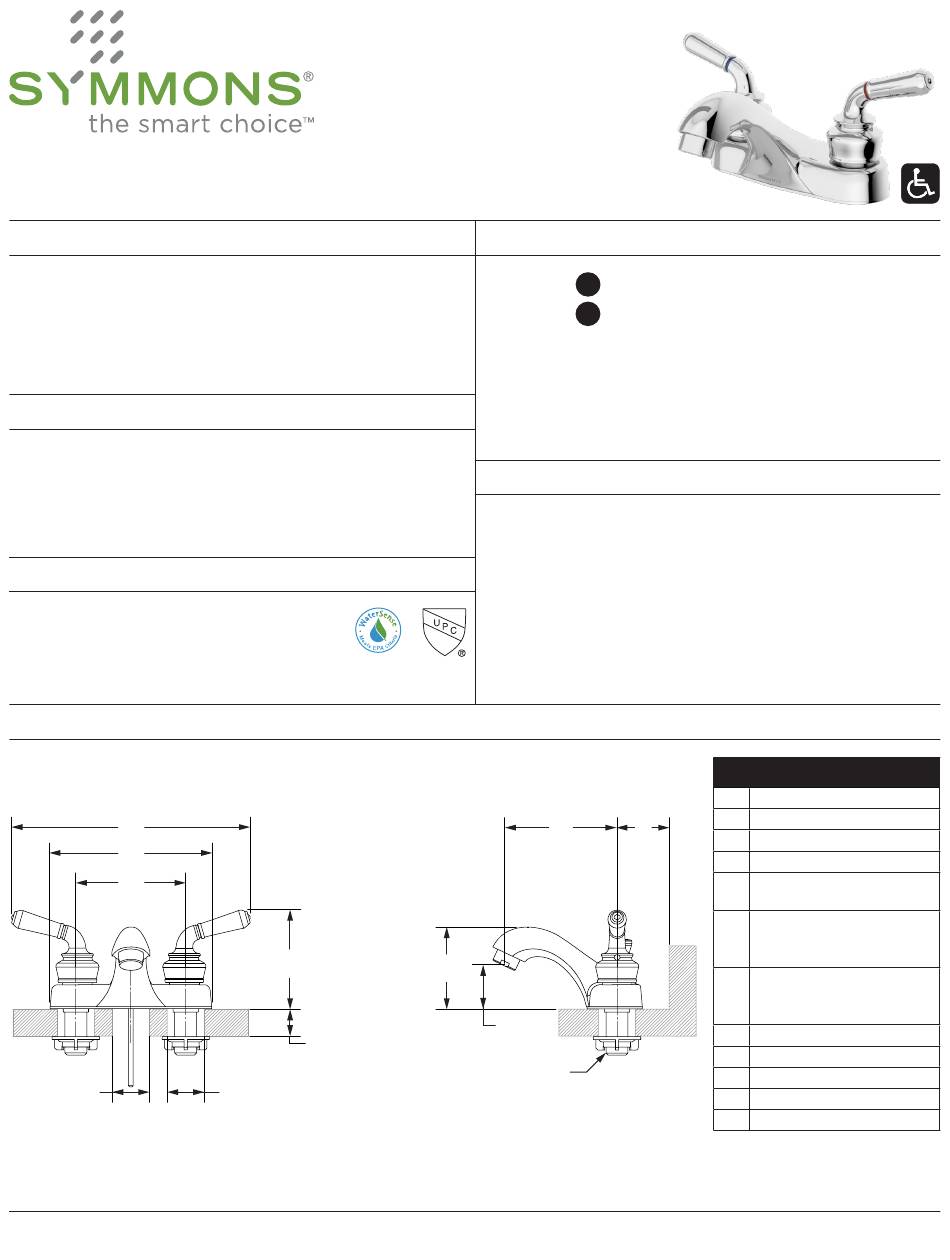

Two Handle Centerset Lavatory Faucet
Specification Submittal
Feature Highlights
• 4" mount
• Quarter turn ceramic cartridges
• 1/2" IPS inlet connections
• 50/50 drain assembly (SLC-9612 only)
• Components shall be metal and nonmetallic construction,
plated in standard polished chrome finish
Model Numbers
☐
SLC-9610-1.5
Two handle centerset lavatory faucet, drain and lift rod hole
not included
☐
SLC-9612-1.5
Two handle centerset lavatory faucet
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI 61.9; NSF/ANSI 372
- WaterSense 1.5 gpm (5.7 L/min)
1.0 gpm (3.8 L/min)
Dimensions
A A
B B
C C
F F
Note: Dimensions subject to change without notice.
Symmons Industries, Inc.
Copyright © 2019 Symmons Industries, Inc.
Location:
Origins
Certified by
IAPMO R&T
D D
E E
G G
■ ■
31 Brooks Drive
■
symmons.com
®
Options/Modifications
☐ CG
-0.5
☐ CG
-1.0
☐
-G
☐
-MP
☐
-STN
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
c
J J
H H
I I
L L
■
Braintree, MA 02184 Phone: (800) 796-6667
■
gethelp@symmons.com
0.5 gpm (1.9 L/min) flow restrictor
1.0 gpm (3.8 L/min) flow restrictor
Grid drain (SLC-9610)
Metal pop-up drain (SLC-9612)
Satin Nickel finish
Measurements
A 8 7/8", 225 mm
B 6", 152 mm
K K
C 4", 102 mm
D 3-3/4", 95 mm
Deck Thickness Ref.
E
Max. 1-1/4", 32 mm
F Min. Ø 1", 25 mm
Max. Ø 1-1/8", 29 mm
(2x) Hole Size
G Min. Ø 1-1/8", 29 mm
Max. Ø 1-1/4", 32 mm
H 3-1/8", 79 mm
I 1-5/8", 41 mm
J 4-1/4", 108 mm
K 1-3/4", 44 mm
L 1/2-14 NPSM
■
Fax: (800) 961-9621
■ ■
ZV-1296 REV C 011019
Hole Size
