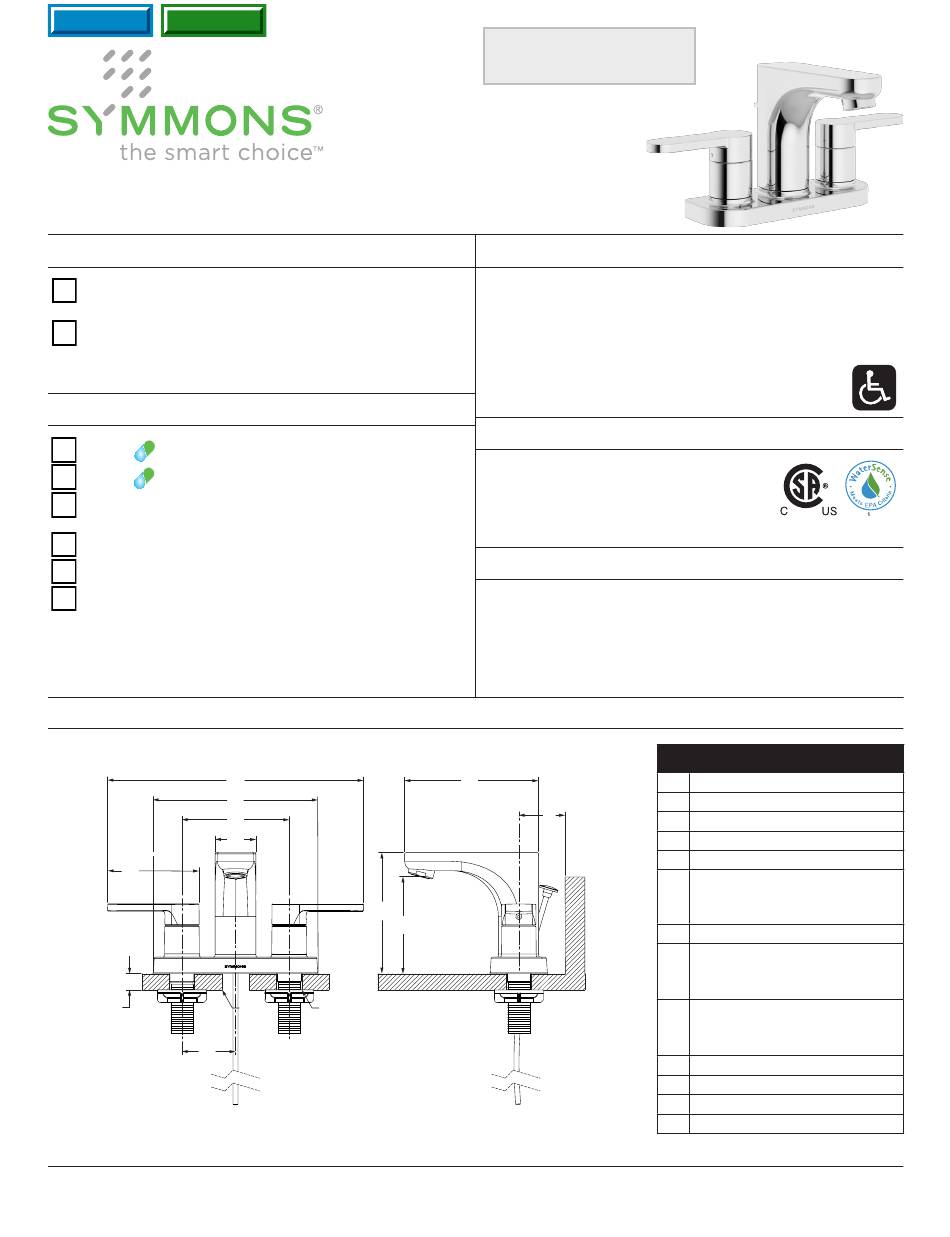

SLC-6710-1.5, SLC-6712-1.5
Two Handle Centerset Lavatory Faucet
Specification Submittal
Model Numbers

SLC-6710-1.5
Two Handle Centerset Lavatory Faucet

SLC-6712-1.5
Two Handle Centerset Lavatory Faucet with lift rod
and 50/50 pop-up drain assembly
Modifications
-0.5
0.5 gpm (1.9 L/min) aerator

-1.0 1.0 gpm (3.8 L/min) aerator

-Delete 2.2 gpm (8.3 L/min) aerator

Suffix 1.5
-MP Metal pop-up drain in place of standard

-STN Satin Nickel finish

-VP
Vandal resistant aerator

Note: Append appropriate -suffix to model number.
Dimensions
E E
F F
G G
Note: Dimensions subject to change without notice.
Symmons Industries, Inc.
Copyright © 2016 Symmons Industries, Inc.
Location:
Identity
A A
B B
C C
D D
L L
M M
I I
H H
■ ■
31 Brooks Drive
■
symmons.com
™
Specification
Two handle centerset lavatory faucet features 4" mount,
ceramic cartridges, 1/2" IPS inlet connections, 50/50
pop-up drain assembly and standard 1.5 gpm (5.7 L/min)
aerator. Faucet constructed from brass, plated in standard
polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
-WaterSense 1.5 gpm (5.7 L/min)
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
J J
K K
■
Braintree, MA 02184 Phone: (800) 796-6667
■
gethelp@symmons.com
Measurements
A 9-1/2", 241 mm
B 6-1/8", 156 mm
C 4", 102 mm
D 1-1/2", 38 mm
E (2x) 3-3/8", 86 mm
Deck Thickness Ref.
F Min. 3/4", 19 mm
Max. 1-1/2", 38 mm
G (2x) 2", 51 mm
Hole Size
Min. Ø 1-1/4", 32 mm
H
Max. Ø 1-3/8", 35 mm
(2x) Hole Size
Min. Ø 1-1/8", 29 mm
I
Max. Ø 1-1/4", 32 mm
5", 127 mm
J
Min. 2-1/4", 57 mm
K
L 4-1/2", 114 mm
3-5/8", 92 mm
M
■
Fax: (800) 961-9621
■ ■
