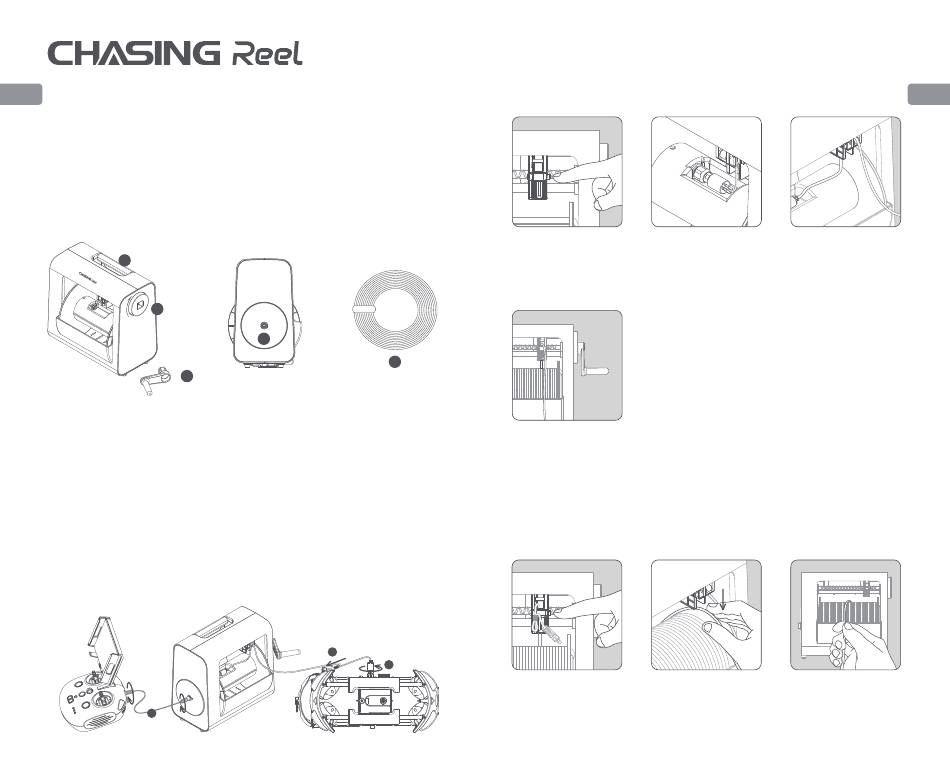

User Manual
EN
V1.0
The manual winder (Reel) uses a total of 14 special customized stainless steel
bearings, adopts high-precision aluminum alloy timing belt transmission
and a high-quality stainless steel reciprocating screw cable anti-winding
technology. IP65 waterproof and dustproof grade, up to 200 meters of cable
can be carried. The overall structure is simple and the performance is
reliable, giving you more fun in operation.
1
2
3
1. Handle
2. Manual handle interface
3. Detachable handle
4. 3m cable connection socket
5. 3m cable: connect the handle and manual winder
Installation and connection
1. Connect the 3m cable to the manual winder and handle respectively, and
tighten the nuts.
2. Connect the buoyancy line on the manual winder to the submersible, and
tighten the nut.
3. Reserve a suitable length, hang the buckle at the head of the cable on the
buckle bracket at the tail of the submersible and tighten it.
1
03
4
5
3
2
Pay-off and take-up
1） Installation
Press the button on the
Insert the buoyancy wire
right side of the
plug into the groove
straightener to open the
interface of the winder
straightener cover.
and tighten the nut.
Install the manual handle.
2） Pay off
Press the button on the
Remove the buoyancy
right side of the
line from the
straightener to open the
straightener.
straightener cover.
EN
Put the buoyancy line into
the straightener and close
the lid.
Close the cover of the
straightener, Fix the
winder and start manual
pay-off.
