3DIV-BODY
Triple Outlet Diverter Valve
Specification Submittal
Model Numbers

3DIV-BODY
Triple Outlet Diverter Valve
Compliance
-ASME A112.18.1/CSA B125.1

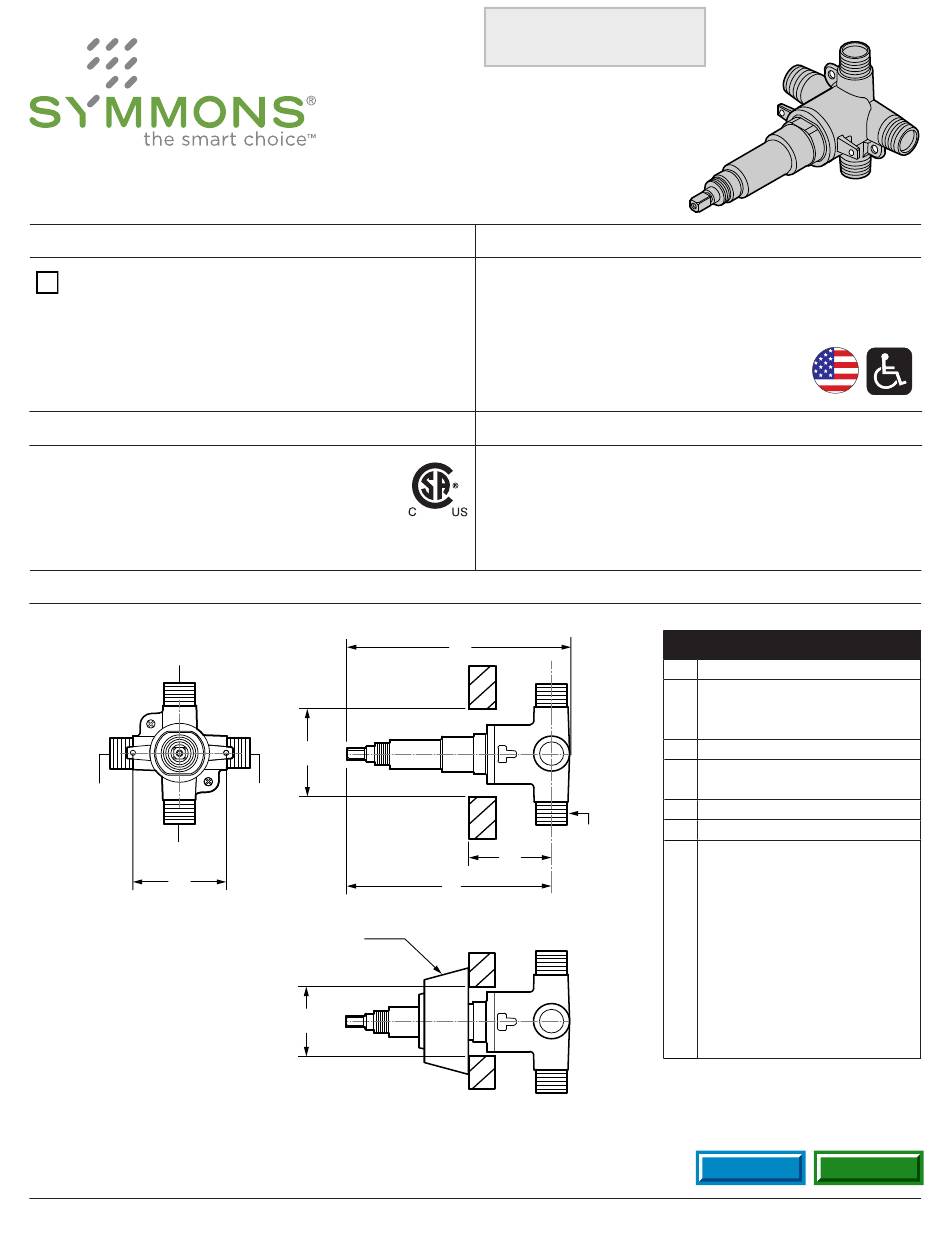

Dimensions
OUT OUT
OUT OUT
IN IN
A A
LD-15A Escutcheon
Notes:
1) Figure is determined by style of trim attached to shower valve. See rough-in
dimension drawing for shower valve application with diverter valve.
2) Dimensions subject to change without notice.
Symmons Industries, Inc.
Copyright © 2015 Symmons Industries, Inc.
Location:
B B
OUT OUT
G G
■ ■
31 Brooks Drive Braintree, MA 02184
■
www.symmons.com
Specification
Triple outlet diverter valve features shared functionality
and includes defined detents. Inlet and outlet connections
are both 1/2" male IPS & 1/2" female sweat. Components
made from lead free metal construction.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
C C
D D
E E
F F
■
Phone: (800) 796-6667
■
gethelp@symmons.com
Measurements
A 2 5/8", 67 mm
Hole Size
B Min. Ø 3", 76 mm
Max. Ø 3 1/4", 83 mm
C 5 3/4", 146 mm
(4x) 1/2" male IPS &
D
(4x) 1/2" female sweat
E See note 1
F 5 3/8", 137 mm
Hole Size
Min. Ø 1 3/4", 44 mm
Max. Ø 1 7/8", 48 mm
LD-15A Escutcheon:
3DIV
G Temptrol
Temptrol II
Temptrol Commercial
Temptrol Deluxe
Safetymix
Visu-Temp
Reset Form
Print
■
Fax: (800) 961-9621
■ ■
ZV-1306 REV B 121015
