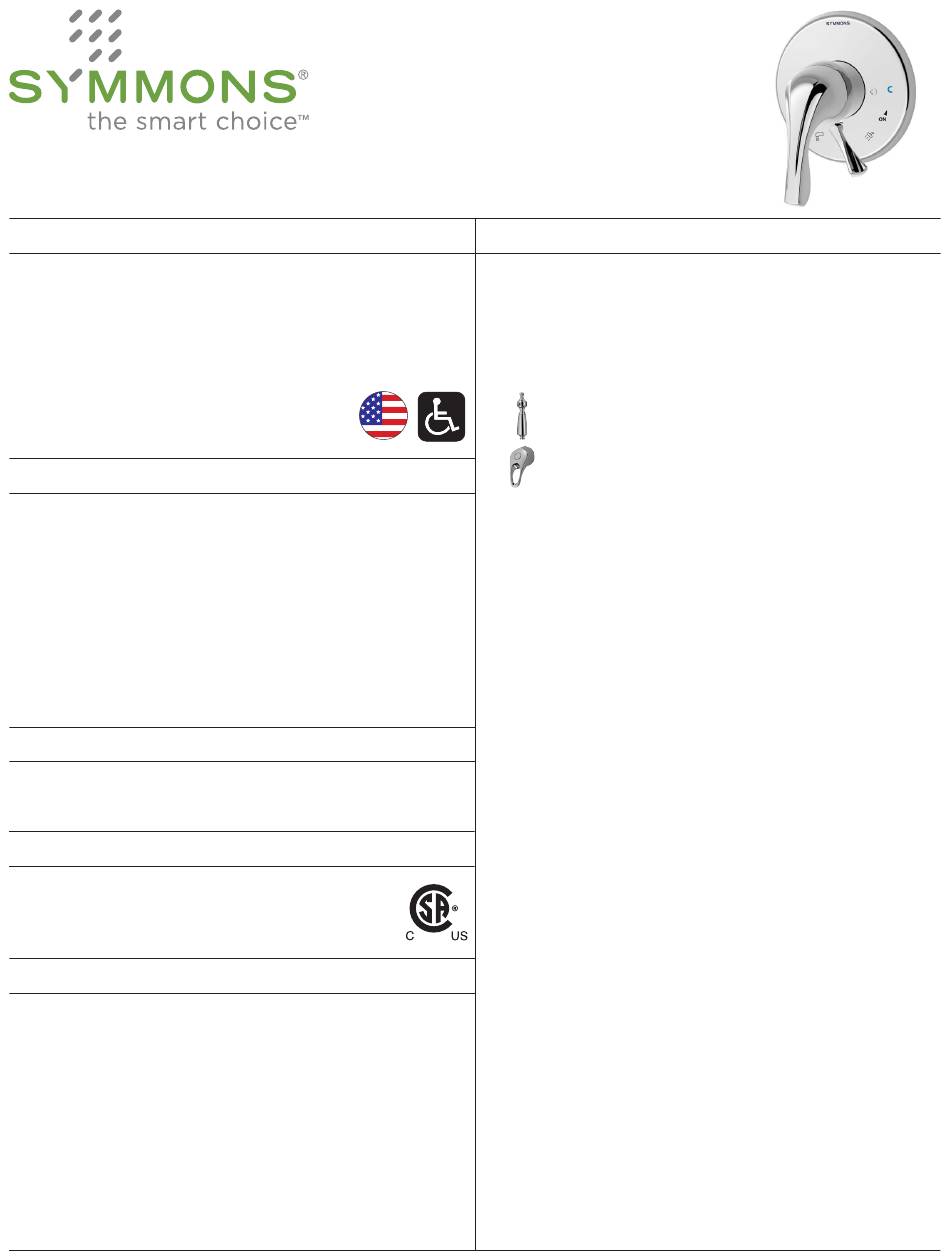

S-9600TS-PLR
Tub/Shower Valve
Specification Submittal
Specification
Tub/shower valve powered by the Temptrol
Balancing valve with integral diverter. Tub/shower
valve shall include adjustable stop screw to limit handle
turn. Components made from metal and nonmetallic
construvction, plated in standard polished chrome finish.
Model Numbers

S-9600TS-PLR
Origins Tub/Shower Valve

S-9600TS-PLR-TRM
Origins Tub/Shower Valve Trim Only

S-46-2-BODY
Temptrol Pressure Balancing tub/shower valve body

S-46-2X-BODY
Temptrol Pressure Balancing tub/shower valve body
with stops
Finish Options

-STN
Satin Nickel finish
Compliance
-ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Location:
Origins
®
Modifications
Pressure
®
☐
☐
☐
☐
☐
☐
☐
☐
☐
☐
☐
Note: Append appropriate -suffix to model number.
-B Brass escutcheon (chrome only)
-CHKS Integral check stops - for use in installations
where a positive shut-off device is used
downstream of mixing valve
-D Brass dome cover (chrome only)
-IPS 1/2" female IPS connections
-LAM Lever handle
-LP Loop handle
-OP 13" oval plate (PLR only)
-REB Rebuild trim kit, includes TA-10 and TA-4
-REV Reverse coring, hot on right, cold on left, for
back to back installations
-VP Vandal resistant escutcheon screws in place of
standard screws
-X Integral service stops - allows water shutoff at
valve for service
