TFD-34TEV

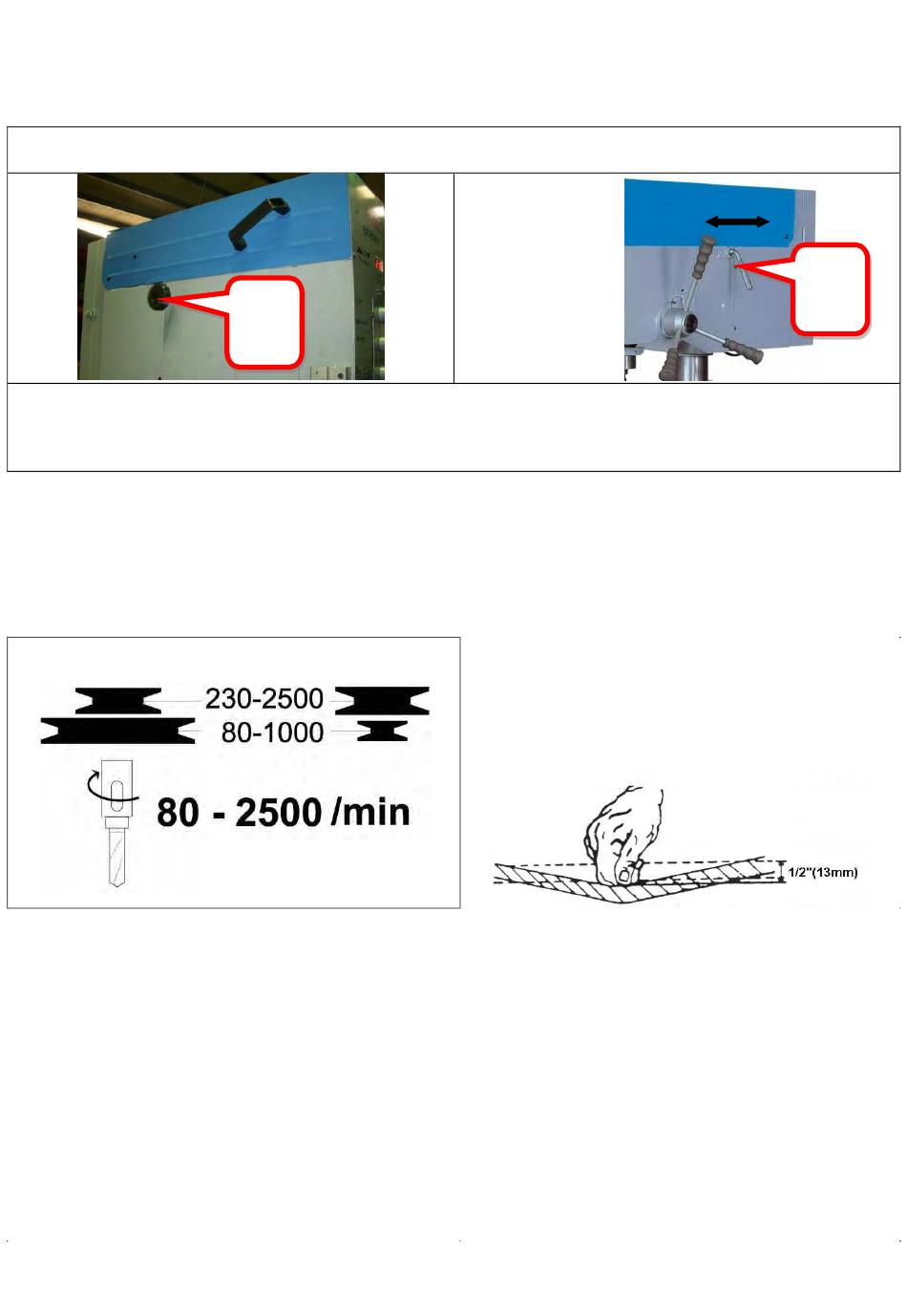

1. Loosen knob B on both sides of the headstock.
2. Push lever A in the direction of the arrow toward to tension the belt.
3. Firmly lock knob B in order to fix the belt tension.
If it is necessary to change the belt position, loosen the knob B on both sides of the spindle head.
Loosen the lever A, Change the belt speed setup to desired speed by reference following speed chart.
TFD-34TEV
B
TFD-34TEV
Apply 4,5 kg force on the belt by hand to test
the belt tension, the recommended deflection
distance is about 13 mm.
11
A
