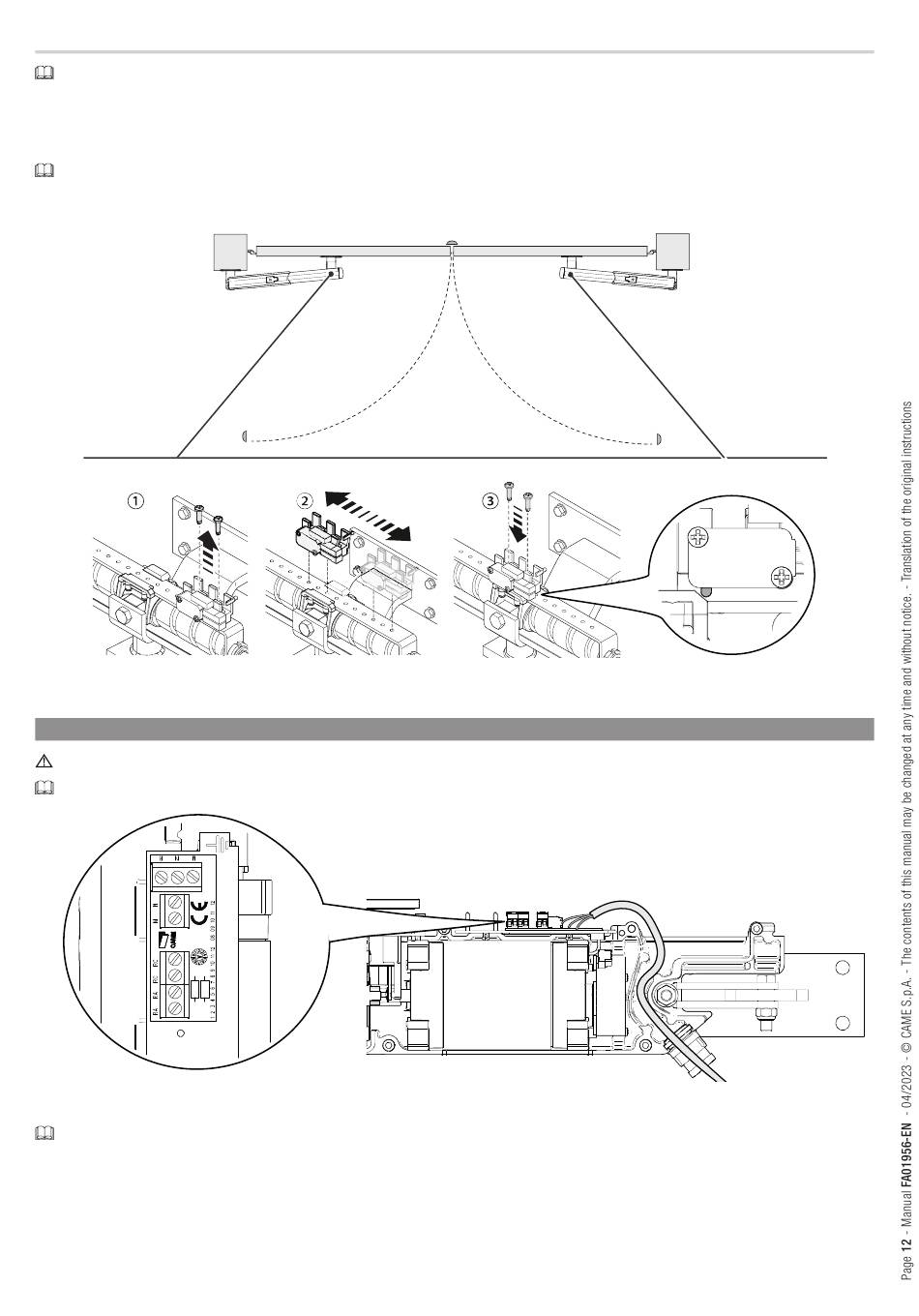

Determining the closing slowdown travel end points
Perform these operations on both gearmotors.
Release the gearmotor.
Manually close the leaf to the desired point.
Unscrew the screws in the closing microswitch assembly.
Slide the microswitch assembly along the boom until it goes beyond the contact point with the slide guide fixed on the nut bushing.
Activation of the microswitch (cam pressed) signals the starting point for the closing slowdown phase.
Secure the microswitch assembly to the boom again using the screws.
After adjusting the travel end points, run travel self-learning from the control panel, following the instructions in the control panel manual.
ELECTRICAL CONNECTIONS
Before working on the control panel, disconnect the mains power supply and remove the batteries, if any.
The reversible model A3124N is only compatible with the ZLX24M or ZLX24S electronic boards.
Where there is only one gearmotor in the system, make the electrical connections on the gearmotor (M2).
