1. Disconnect the connecting cable on the
building side from the power supply and
secure it against reinsertion.
Switch. To do this, trip the corresponding
circuit breaker of the house installation.
2. Prepare the mounting surface according
to "Figure 1".
3. Screw the mounting brackets (1) to the
luminaire using the adjustment screws (2)
and washers (3). (Figure 2) Align the
mounting brackets (1) so that the luminaire
is flush with the substrate. (Figure 3)
4. Place the light on the opening and mark
two holes of each mounting bracket (1).
5. Connect the light to the house wiring
according to "Figure 4".
6. Place the light in the opening and screw
it through the mounting surface at the
previously marked points with two screws
(4) per side. (Figure 5)
7. Fill the transitions and screws. After
drying, sand the surface smooth, clean
(with a soft brush) and repaint. (Figure 6)
8. Insert a lamp (5), according to "Figure
7", and switch on the building-side
connection line again. The installation is
now complete.
Subject to technical changes
English

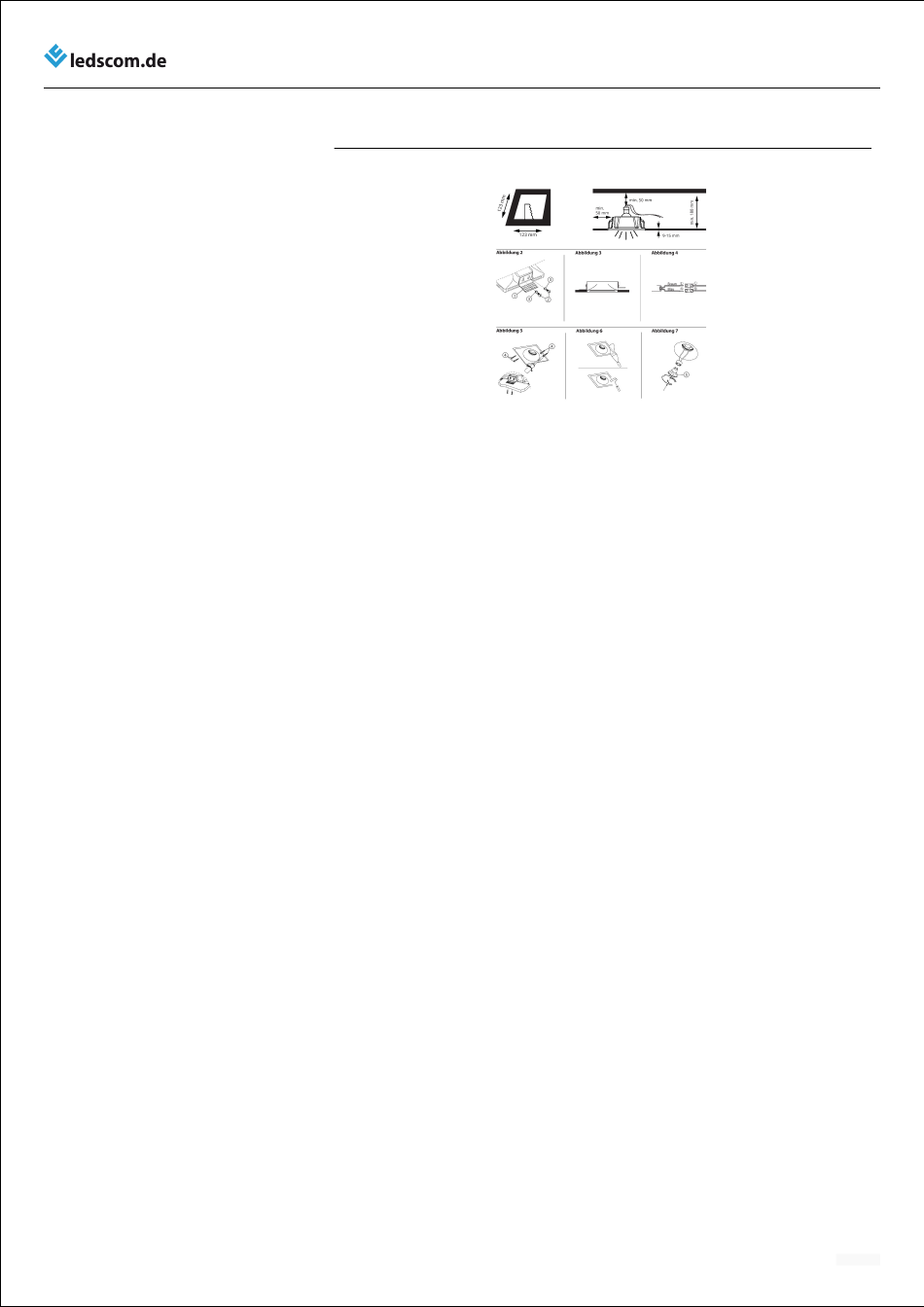

Figure 1
1: Mounting bracket
2: Adjustment screws
3: Washers
Recessed ceiling light (LC-EL-083) - Assembly instructions
4: Screws
5: Illuminant
10/2024
