INTRODUCTION

PROFESSIONAL FOG MACHINE
CLIF1700TPRO
CONTROL FUNCTIONS
3-channel DMX control
Stand Alone mode
PROPERTIES
Professional fog machine in flight case with cover, butterfly clasp, and handle. DMX-512 control. Overheat protection. Operating voltage:
230V AC / 50-60Hz. Power consumption: 1800W.

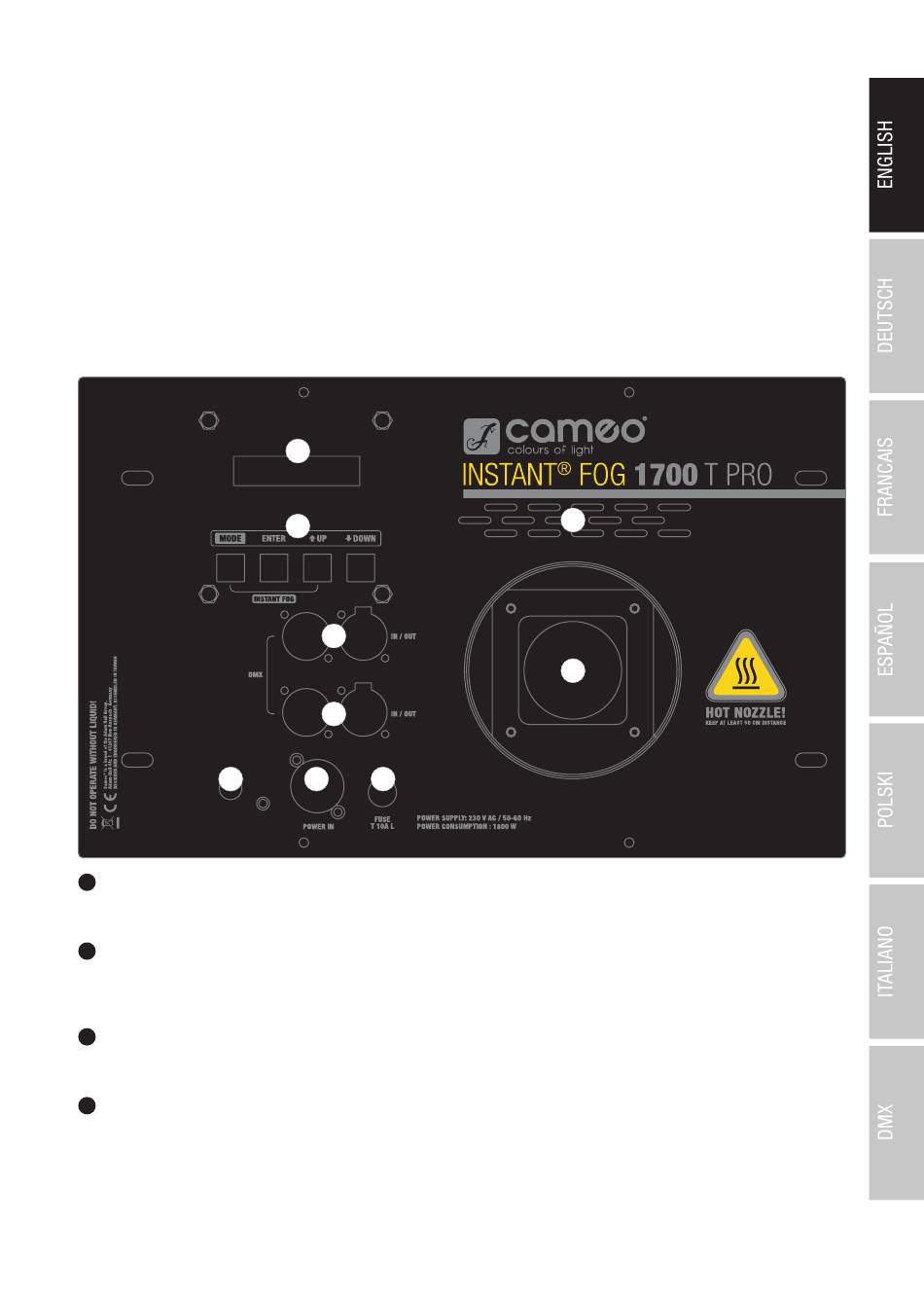

CONNECTIONS, CONTROL AND DISPLAY ELEMENTS

7
POWER IN
1
Power Twist outlet to provide power to the device, a suitable power cable is included in delivery.
FUSE
2
Fuse holder for 5 x 20mm micro fuses. IMPORTANT INFO: Replace the fuse only with a fuse of the same type and values (see label on the
housing). If a fuse trips repeatedly, please contact an authorized service center.
DMX IN / OUT 3-POL XLR
3
Male 3-pin XLR connector to connect with a DMX controller and female 3-pin XLR connector to forward the DMX control signal.
DMX IN / OUT 5-POL XLR
4
Male 5-pin XLR connector to connect with a DMX controller and female 5-pin XLR connector to forward the DMX control signal.
5
6
3
4
1 2
9
8
5
