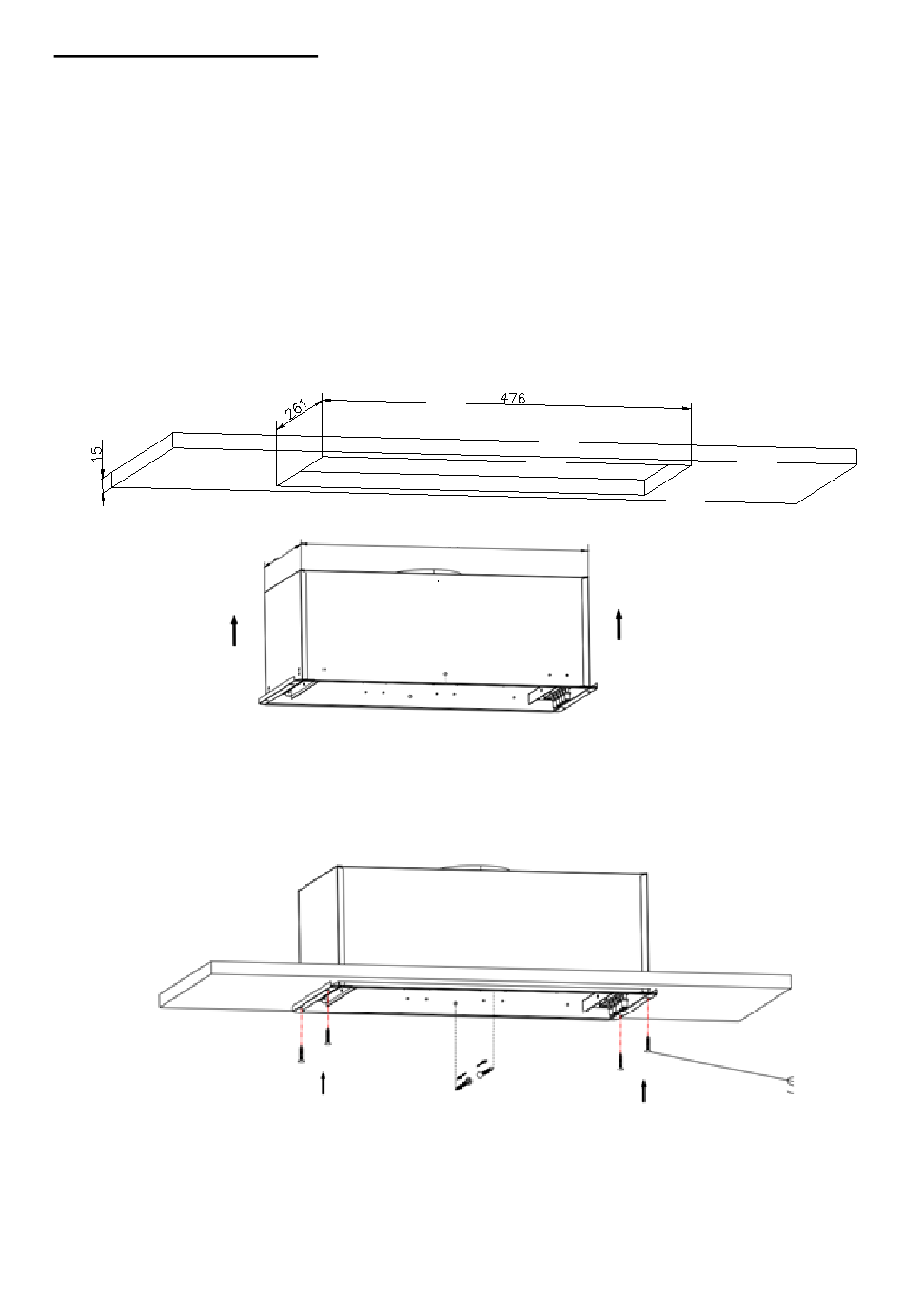

Fitting under wall unit
1. Before fixing the hood to the wall unit, drill a hole of 135mm diameter for
φ120mm exhaust Ducting in the wall unit.
2. In any case, check the position of the power outlet and consider where
the power cable will run, since a hole might have to be made in the wall
unit to accommodate it.
3. Unscrew the 2 visible screws located on hood of both inner size of filter
frame and remove the face plate. The 6 mounting holes around the unit
are then accessible.
4. Lift the range hood and fit through the opening of the cabinet. Secure
unit by using 6 long mounting screws.
４７３
7
