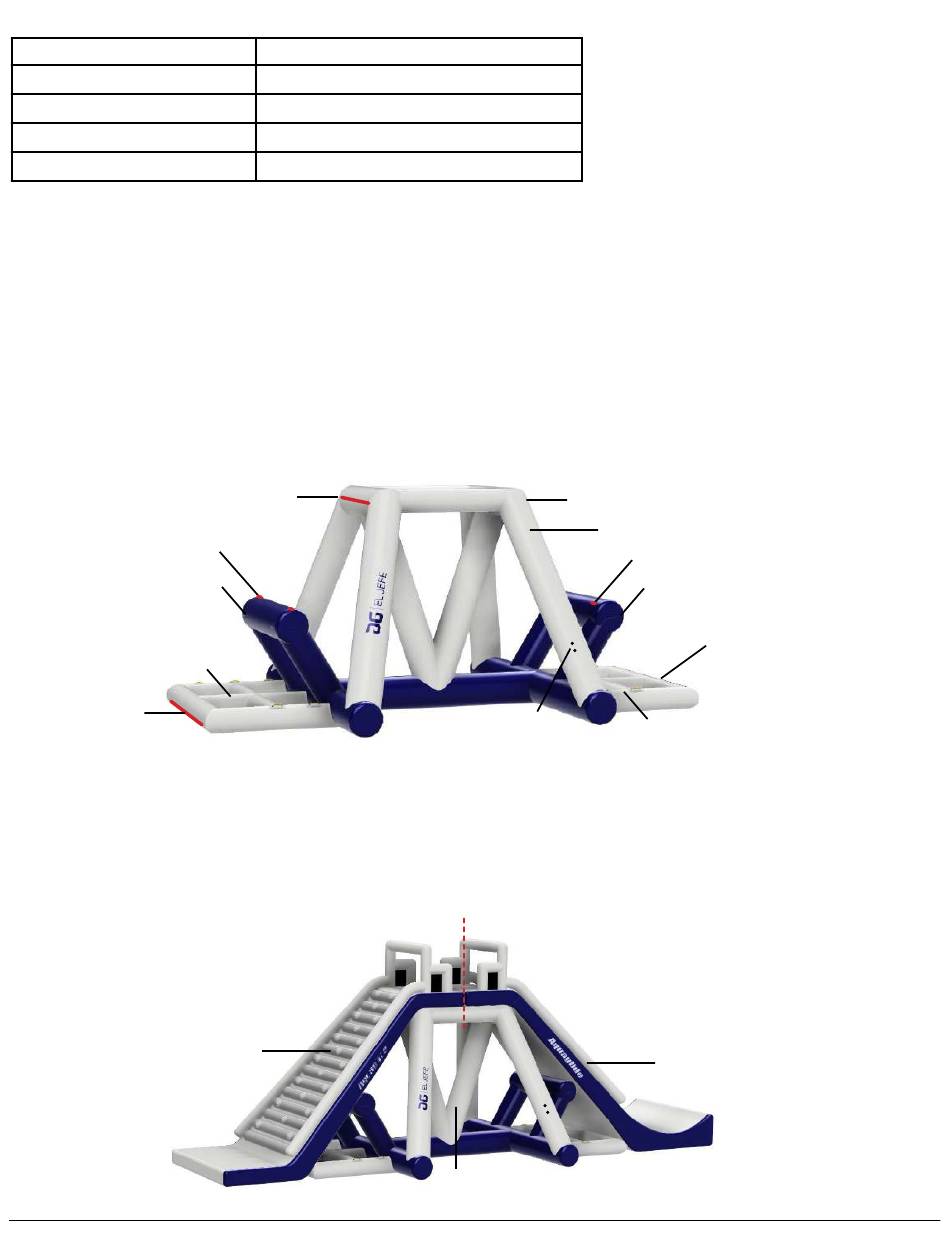

Chart 1 – Working Pressure by Chamber - El Jefe TR
Valve [Inflate Order]
MAIN BASE [1]
BOARDING [2]
KICKER SLIDE [3]
TOP TUBES [4]
Locate a large, flat area with access to outlet for electrical pump. The best setup position is level ground
near the water to make launching easy. Due to the size of this item, it is typically necessary to slide it from
setup position into the water. Make sure there are no sharp protrusions which could damage the item
before it reaches the water. Putting down clean, slippery tarps is recommended. This will help the item slide
without excessive friction, but will not protect against damage from sharp protrusions. To help future stor-
age, closely note original folding method for each segment as it is unpacked.
This product is an assembly of several parts. Some assembly steps are best done before inflation.
1. Unfold El Jefe base section located in box 1 of 3 and position it in the setup area. Do not inflate.
2. Attach lower connecting straps to base at the outer end of each mesh cave area. There are 7 rings on
each end, 14 total. Note strap attachment instructions E-1 and E-2 below.
Upper Connecting Rings (4)
Middle Connecting
Rings (2)
Middle Arm
Mesh Cave
Lower
Connecting
Rings (7)
3. Unfold El Jefe boarding section located in box 2 of 3. Position boarding section over the base as shown
below. Inner end of boarding section should be centered on the base. Do not inflate.
4. Unfold El Jefe slide section. Position slide section over the base according to the image shown. The
inner end of the slide should be touching the inner end of the boarding section, and centered on the base.
Do not inflate.
Boarding
Section
7
Working Pressure in psi (Bar)
1.8psi (0,124 bar)
1.1 psi (0,076 bar)
1.1 psi (0,076 bar)
1.8 psi (0,124 bar)
Inflate Valves
Upper Connecting Rings (4)
Base Section
Center
Base
Middle Connecting Rings (2)
Middle Arm
Lower
Connecting
Rings (7)
Mesh Cave
Slide
Section
www.aquaglide.com
