INSTALLATION

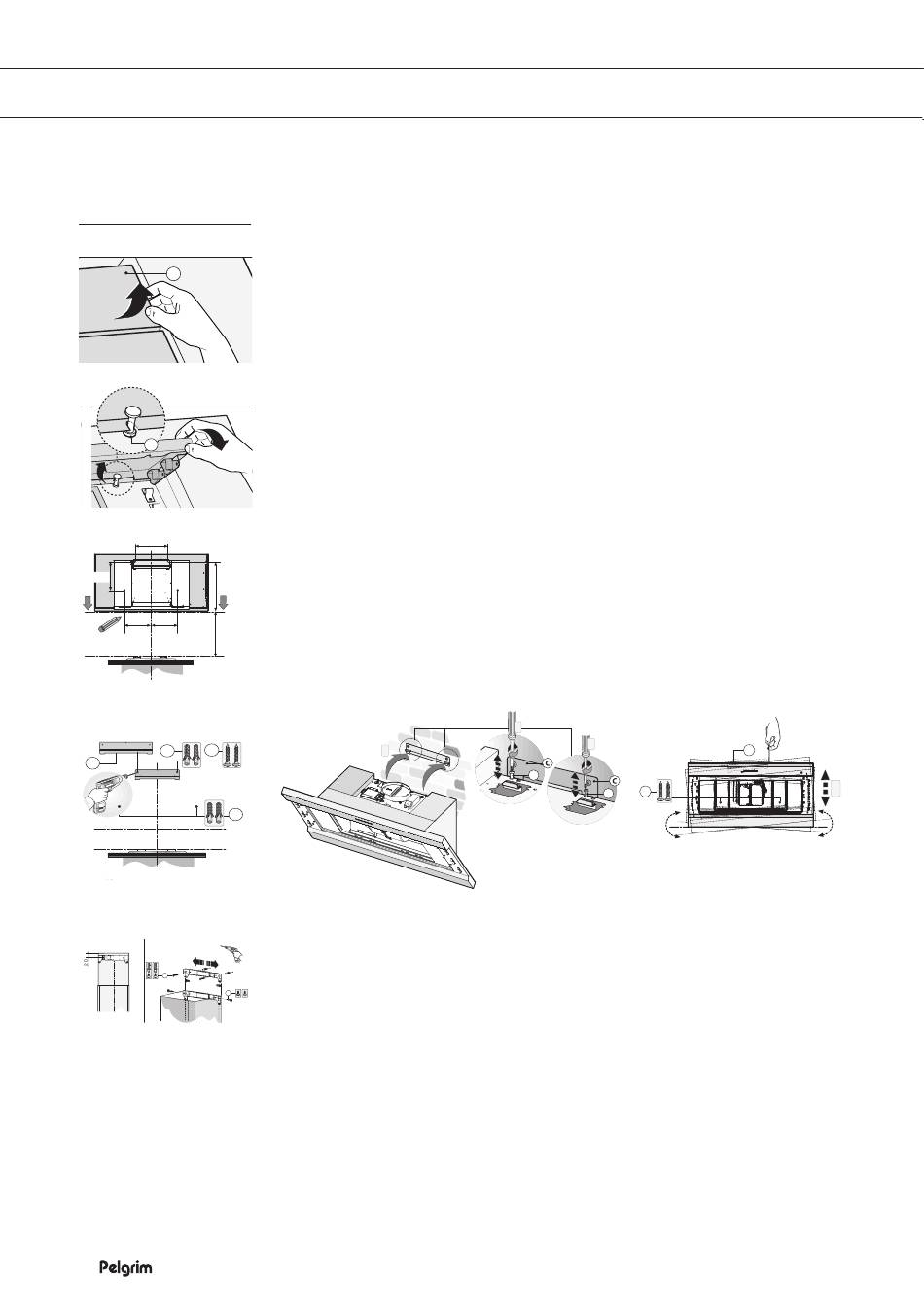

Mounting

A
A
N
260
232.5
210 210
A
C
A
EN 12
• Remove the three panels.
N
• Drill the holes, using the template as a guide.
388.5
450
• Then screw the hood to the wall using the plugs and screws.
B 1
A
• Fix the mounting bracket of the upper duct to the wall against the
ceiling.
• Connect the discharge pipe.
B
• Put the plug in the wall socket. Ensure that there is no tension on
the wall socket!
• Slide the upper duct into the lower duct.
• Let the ducts drop into the hood.
• Push the upper duct around the wall bracket and screw the wall
bracket on to the mounting bracket with the screws supplied.
2
2
D
B
D
D
3
