2.2 Fan Installation
Install the fan housing according to the minimum di-
mensions for your appliance listed in Section 1.4 on
page 5. See (i) below.
Attach the duct boot or wall stack to fan housing using
(4) provided self-tapping screws. The screws must be
fastened on the sides of the duct boot or wall stack for
proper finishing. See (i) below.
Secure the fan housing and duct boot/wall stack to the
wall studs with (4) provided black wood screws. See
(ii) below.
HTK-INT

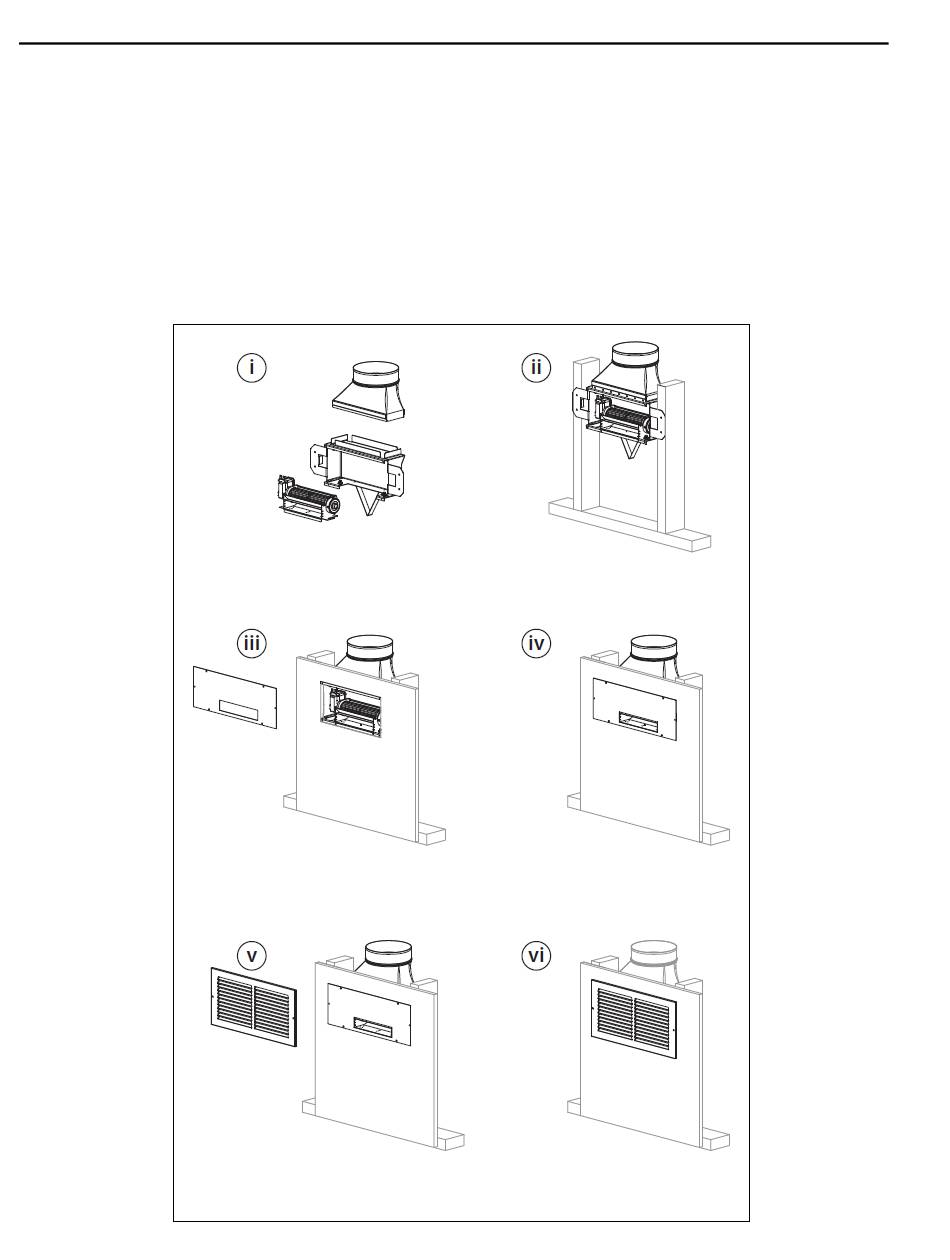

Figure 2.5, Fan Assembly Installation
4. Finish the wall around the fan housing.
5. Attach the fan cover plate to the fan housing using (4)
screws. See (iii) and (iv) below.
6. Fit the air grille to the fram through the brackets with
(2) screws provided. See (v) and (vi) below.
7. Complete wiring. Refer to section 3.0 on page 13.
11
Rev. 14 — April 2024
