Removing Unit From Carton Assemble The Unit
1 1 2
Remove all contents from Place shield onto mount
the carton. bracket. Securely screw 2 shield
screws through holes on mount
bracket and into shield. Make
sure screws are tightened equally
so there is an equal gap between
bracket and shield on each side.
Assemble The Unit
40:1
1 Gallon 3.2 oz
4 5
Mix thoroughly in separate Place unit on a level surface.
fuel can: Fill fuel tank.
– 3.2 fl. oz. of 2-cycle
engine oil
– 1 gallon of unleaded
gasoline
NOTE: Do not mix directly in
fuel tank.
Starting The Unit
1 8 9
Crouch in starting position. SQUEEZE and HOLD
throttle for ALL further
steps.
Reloading the Line*
Outer
Bump
Spool
Knob
Spring
1 1 2
Unscrew the bump knob Remove the inner reel and
counterclockwise. spring.
Reloading the Line
For replacement line, call 1–866-206-2707 or go to
an authorized service dealer.
For single line installation or replacement spool
installation instructions, refer to the Replacing the
Trimming Line section of this manual.
*This is to assist in the reloading of Splitline® only. These instructions
are NOT part of the fast assembly instructions. Line does not need to
be installed on the initial assembly and start-up.
1 8
Hold the inner reel and outer
spool together. Firmly pull the
two line ends to release them
from the holding slots. Screw
the bump knob on clockwise.
Tighten the bump knob
securely.
IMPORTANT: READ OPERATOR'S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES WHILE OPERATING THE UNIT.
NEED HELP?
769-07530 P01
Operator's Manual
Min. 6"
3
Put handle on shaft. Move
handle a minimum 6 inches
away from shaft grip. Insert
bolt and tighten.
Starting The Unit
Primer
Bulb
10 X
6
Press primer bulb 10 times,
or until fuel is visible
5 X
10
Pull rope 5 times.
Inner
Reel
3
Cut one 6-foot (1.8 m) length
of new 0.095" split line
trimming line. Split each end
about 6 inches (150 mm).
CALL 1-866-206-2707 IN U.S. OR 1-877-696-5533 IN CANADA
ASSEMBLY TOOLS REQUIRED:
• #2 Phillips screwdriver
Choke Lever
7
Move choke lever to
Position 1.
Choke Lever
11 12
Move choke lever to Pull rope 3-5 times to start
Position 2 and squeeze engine. Run unit for 30-60
throttle. seconds to warm up.
Top Hole
Split Wall
Bottom Hole
4 5
Insert the end of one line into Wind the line tightly in the
the top hole and the end of direction shown on the inner
the other line into the bottom reel. The split wall will divide
hole. the line. Wind the line until it
is completely divided and
about 6 inches (150 mm) of
line remains.

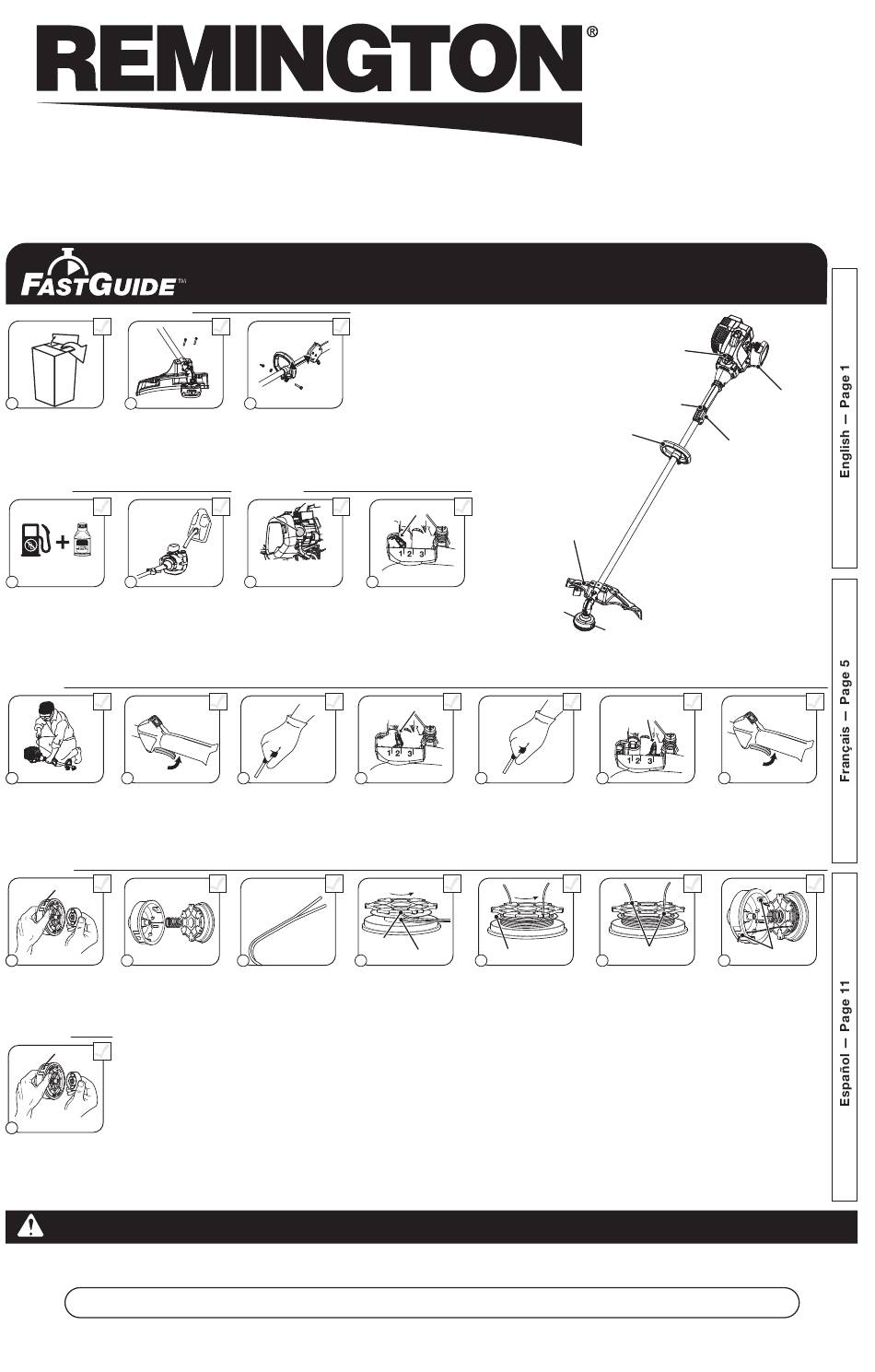

RM2560
2-Cycle Trimmer
Starter Rope
On/ Off Switch
D-Handle
Cutting Head Shield
Need Help?
Call 1-866-206-2707
DIDN'T START?
Repeat the starting instructions.
IF engine fails to start after 2 attempts,
move choke lever to position 3 and pull
the starter rope until engine starts
IF unit still fails to start, refer to operator's
manual for additional starting and
troubleshooting information
Choke Lever
3-5 X
13
Continue to squeeze
throttle. Move choke lever
to Position 3.
Holding Slots
6
Insert the two 6-inch sections
into the two .095 holding
slots.
Fuel Cap
Throttle Control
14
Continue to squeeze
throttle. Run unit for an
additional 60 seconds to
complete warm-up. Unit
may be used during this
time.
Eyelets
7
Pass the two line ends
through the eyelets. Place the
spring inside the inner reel.
Insert the inner reel into the
outer spool. Push the inner
reel and outer spool together.
12/11
