CEBEK L-5 Mode D'emploi

It will connect each output consecutively, disconnecting the previous one. Upon reaching the final, the circuit
automatically restarts the sequence from the first. The effect will be identical to sweep work lights on roads.
Adjusting the forward speed between outputs it is performed by a potentiometer.
It incorporates external potentiometer and output connection terminals.
POWER . A 230V. C.A., direct access to the network. Connect a plug and a cable to the corresponding input terminals.
Install a fuse and a switch for the safety and security as reflected in the CE.
NOTE: Remember that in the circuit current flows 230VAC
OUTPUT connection. LOAD. Only supports resistive loads such as filament bulbs or resistors. In no case may apply
inductive loads such as transformers, fluorescent, low consumption lamps or LED. The minimum applicable load to
each output is 50W., Connecting a lower load the module
It will work correctly. Likewise, the applicable maximum load per output is 250W.
To connect outputs, connect light bulbs or to be connected to the terminals indicated by it.
OPERATION. Once you have made and checked the wiring of the input and outputs, you can activate Switch supplying
the current. Will automatically outputs are connected one after another, by disconnecting the Previous. To adjust the
speed gap between output and another, adjust the potentiometer RV1. If you want to increase the maximum
connection time out, which are factory 4sec., Replace the potentiometer RV1 other higher value.
INSTALLATION. It must be assembled in a plastic case and that ventilated.

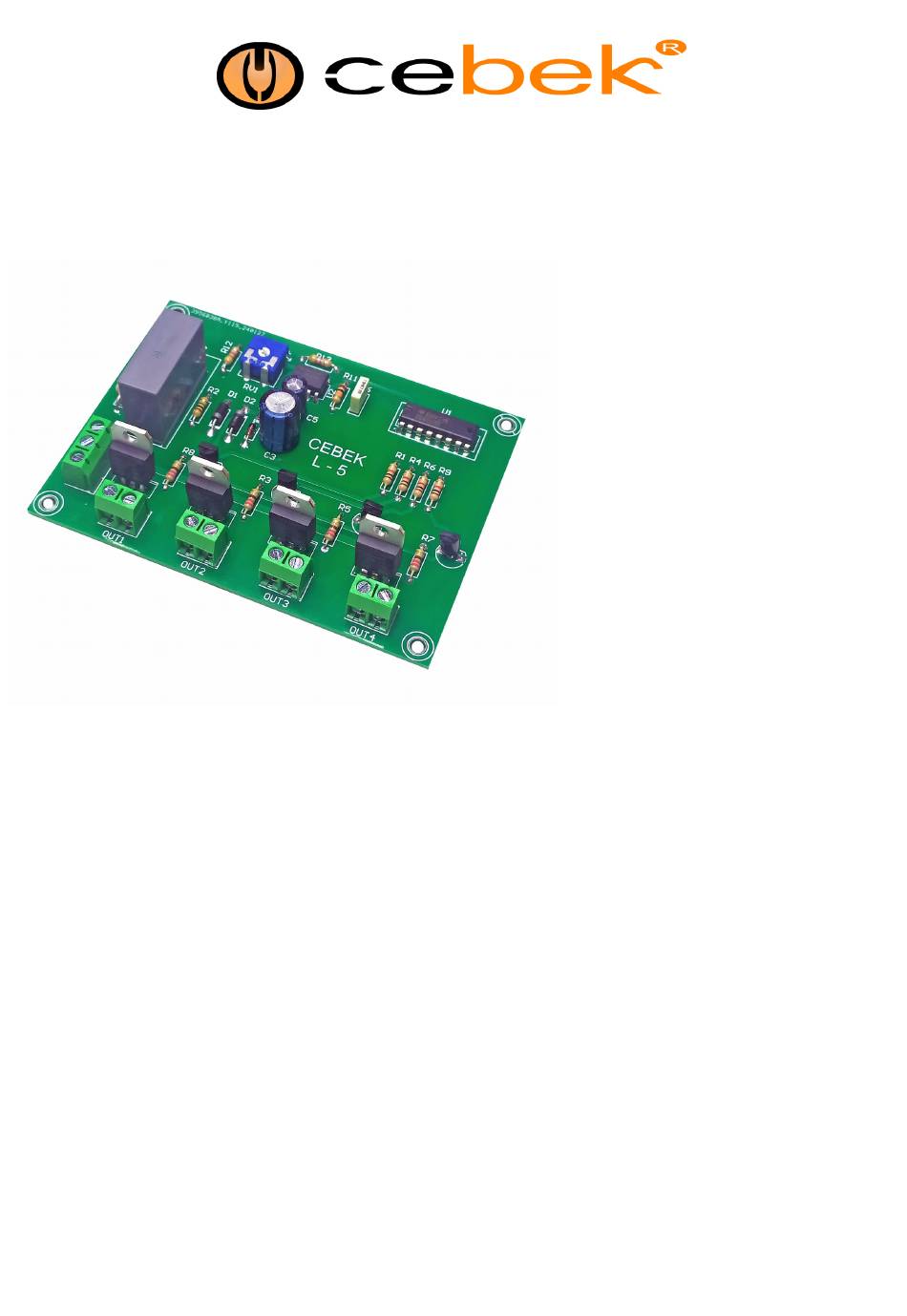

4 Channel sequential triac
4 Canaux Triac séquentielle
Secuencial 4 canales a triac
Seqüencial 4 canals a triac
www.cebek.com -
L-5
TECHNICAL CHARACTERISTICS
Power : 230V.AC
Minimum consumption : 1 W.
Maximum consumption : according charge.
Minimum power per output : 50W.
Maximum power per output : 250W.
Minimum connection time out : 1 sec.
Maximum connection time per output : 4 sec.
Size : 102 x 76 x 21 mm.
Weight : 59 gr.
