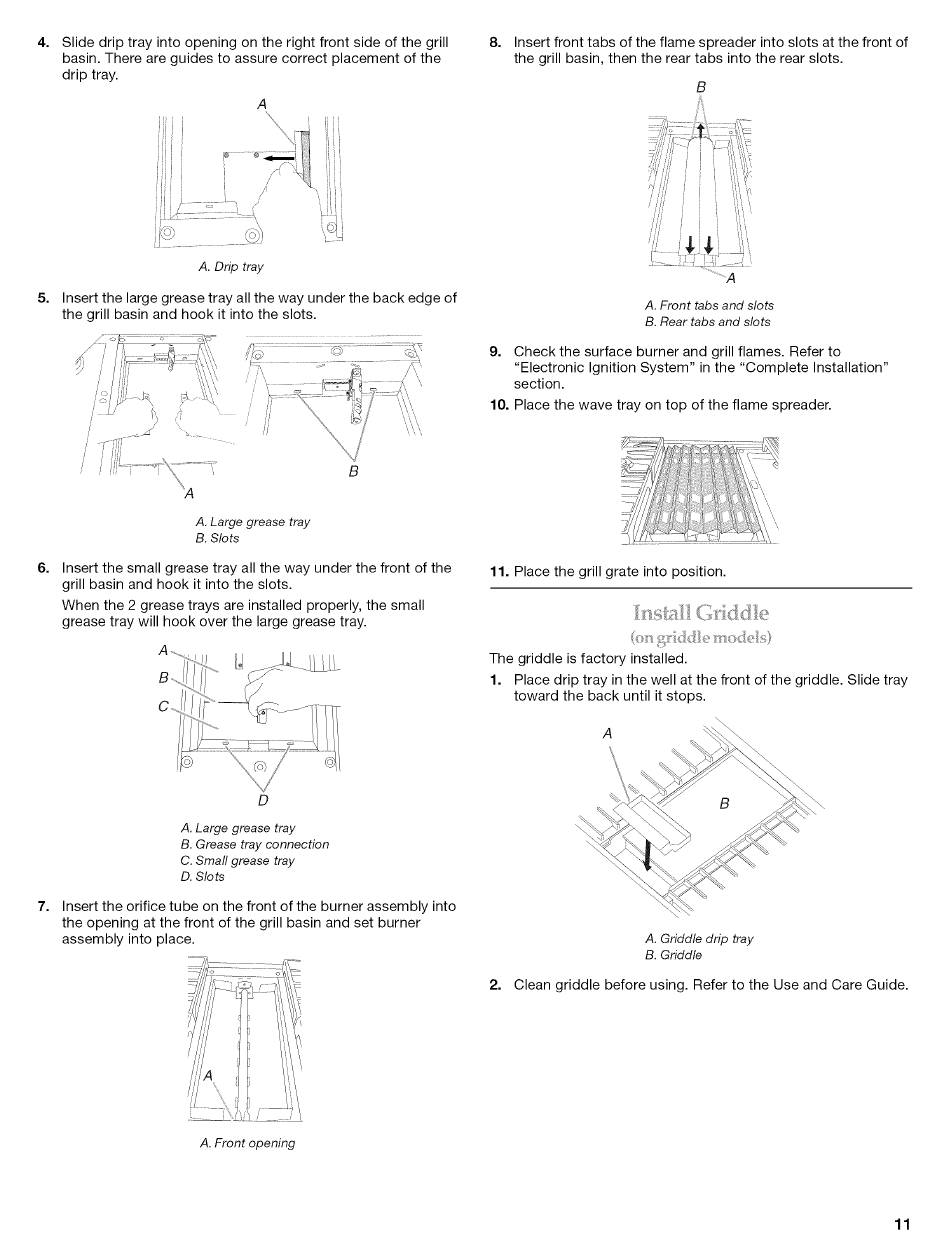

4.
Slide drip tray into opening on the right front side of the grill
8.
Insert front tabs of the flame spreader into slots at the front of
basin. There are guides to assure correct placement of the
the grill basin, then the rear tabs into the rear slots.
drip tray.
A. Drip tray
5.
Insert the large grease tray all the way under the back edge of
the grill basin and hook it into the slots.
A. Front tabs and slots
B. Rear tabs and slots
9.
Check the surface burner and grill flames. Refer to
"Electronic Ignition System" in the "Complete Installation"
section.
10. Place the wave tray on top of the flame spreader.
A. Large grease tray
B. Slots
6.
Insert the small grease tray all the way under the front of the
grill basin and hook it into the slots.
When the 2 grease trays are installed properly, the small
grease tray will hook over the large grease tray.
The griddle is factory installed.
1.
Place drip tray in the well at the front of the griddle. Slide tray
toward the back until it stops.
A. Large grease tray
B. Grease tray connection
C. Small grease tray
D. Slots
7.
Insert the orifice tube on the front of the burner assembly into
the opening at the front of the grill basin and set burner
assembly into place.
A. Griddle drip tray
B. Griddle
2.
Clean griddle before using. Refer to the Use and Care Guide.
A. Front opening
11
