Receiver - Plug-In Dimmer Module
To reset all lamp module addresses

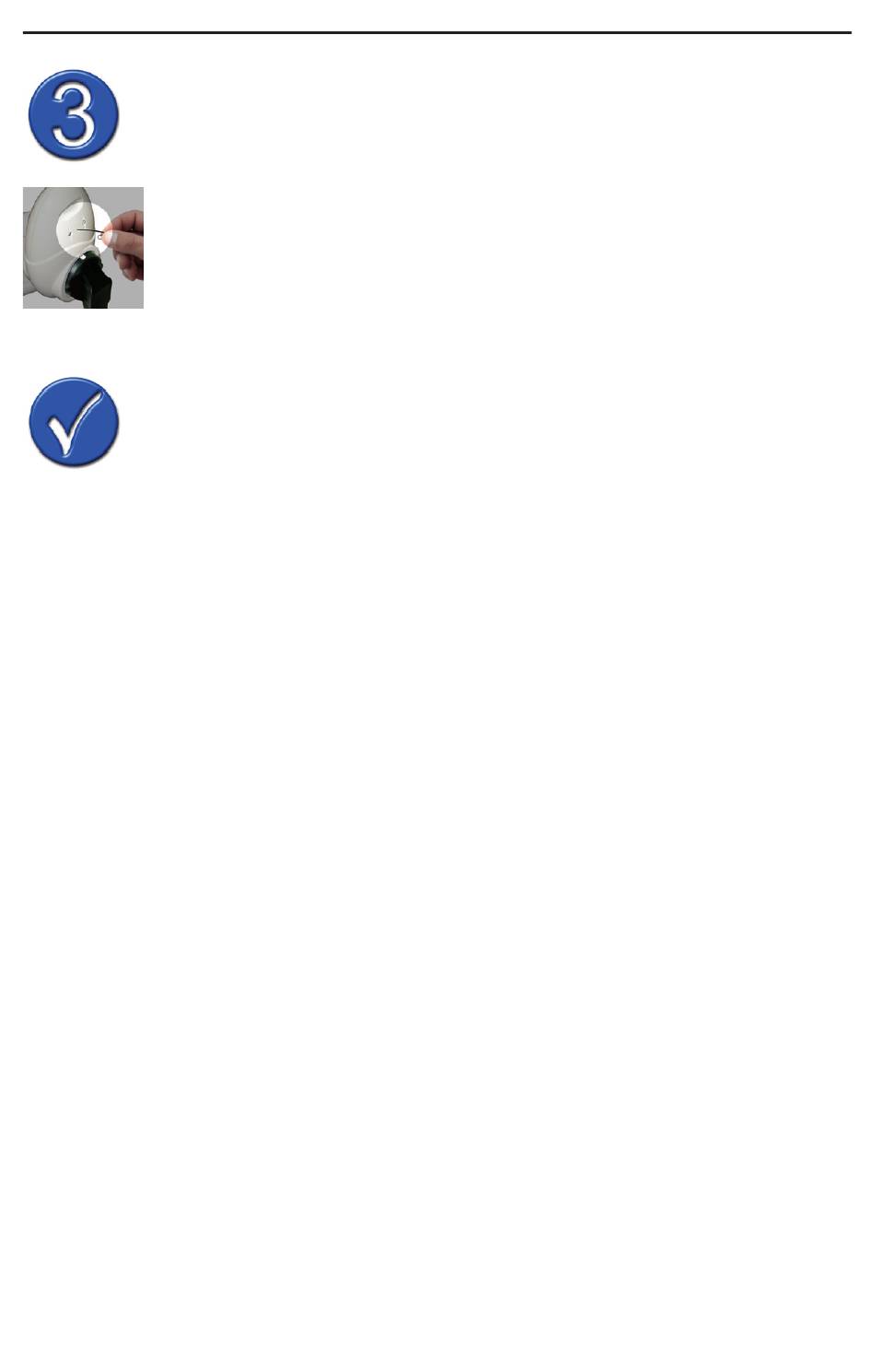

1. Use a small sharp object, e.g. a paper clip, to press and hold the
setup button until the green led turns on. (about 3 or 4 seconds)
2. Release the button, the led will blink red and green and then
turn off.
3. When the red and green LEDs are off, the module is reset.
Operating the RPL Module
Functions enabled by a wireless transmitter (EM, TPC, IMRF, etc..)
ON / OFF key
Turns the lamp On & Off
Tips
- Knowledge base available on www.ebodeelectronics.eu.
Can I plug RPL module into a power strip?
This is no problem with a simple power strip however you can not use the module
with a surge protected power strip.
I'm using a X10 compatible wireless remote, e.g. TPC, IMRF, EM, SS13,
KR22, SH600 or HR10, but the RPL is not responding?
- Check and/or change remote control batteries.
- Check if your transceiver is correctly connected.
RF Transmitter = RPT, RMA, RMV, TM13, CM15 or SC28 security console
IR Transmitter = IR7243 along with the remote control
- Reset the RPL (see paragraph 3) then reprogram the address.
- Then, proceed again using learning mode as explained in 2.)
The RPT does not respond to command sent via the power line?
- Reset the RPL (see paragraph 3) then initialize the address.
- Then, proceed again using learning mode as explained in 2.
