General Information - EDOBE XDOM RPL Guide Utilisateur

Receiver - Plug-In Dimmer Module

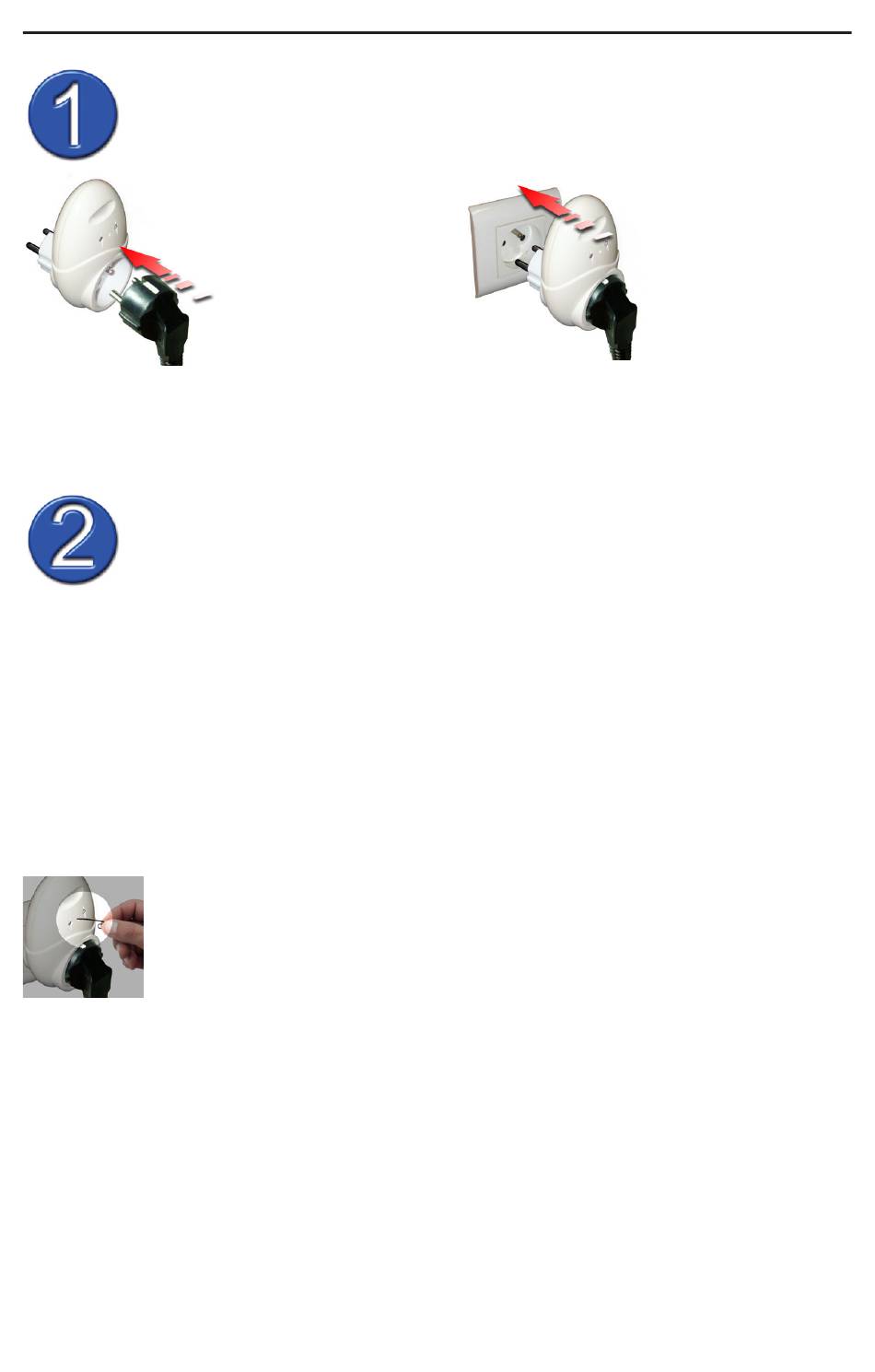

Installing the lamp module
NOTE:
- Make sure not to plug an appliance into the RPL.
- Make sure the light is powered on.
X10 address
The X10 address consists of a House Code and a Unit Code.
In order for this module to respond to a command sent via the
Power line, the module needs to be initialized. It is possible to
configure multiple addresses for this module.

General information

- The RPL Lamp module can be configured to respond to up to 32 X10
addresses.
- The led will blink red when ON/OFF commands are received.
Programming the RPL module
If you want to control the RPL via a RF remote like the ebode TPC,
EM or IMRF, you need to install a RF transceiver (e.g. RPT, TM13,
CM15 or SC28 security console).
1. Use a small pointed object, e.g. a paper clip, to shortly press the
setup button. This button is situated in the small opening between
the two LEDs. When the button is pressed, the green LED will blink
quickly, waiting for a command.
2. Send the 'power on' command for the desired address.
3. The LED will stop blinking.
4. The lamp module address is now stored.
5. If you wish to configure additional addresses repeat this procedure
from step 1.
July 2009
1. Plug the lamp into
the module.
page 6
Ref : RPL
2. Plug the module
into a socket.
RPL
