AirBoost 100
3

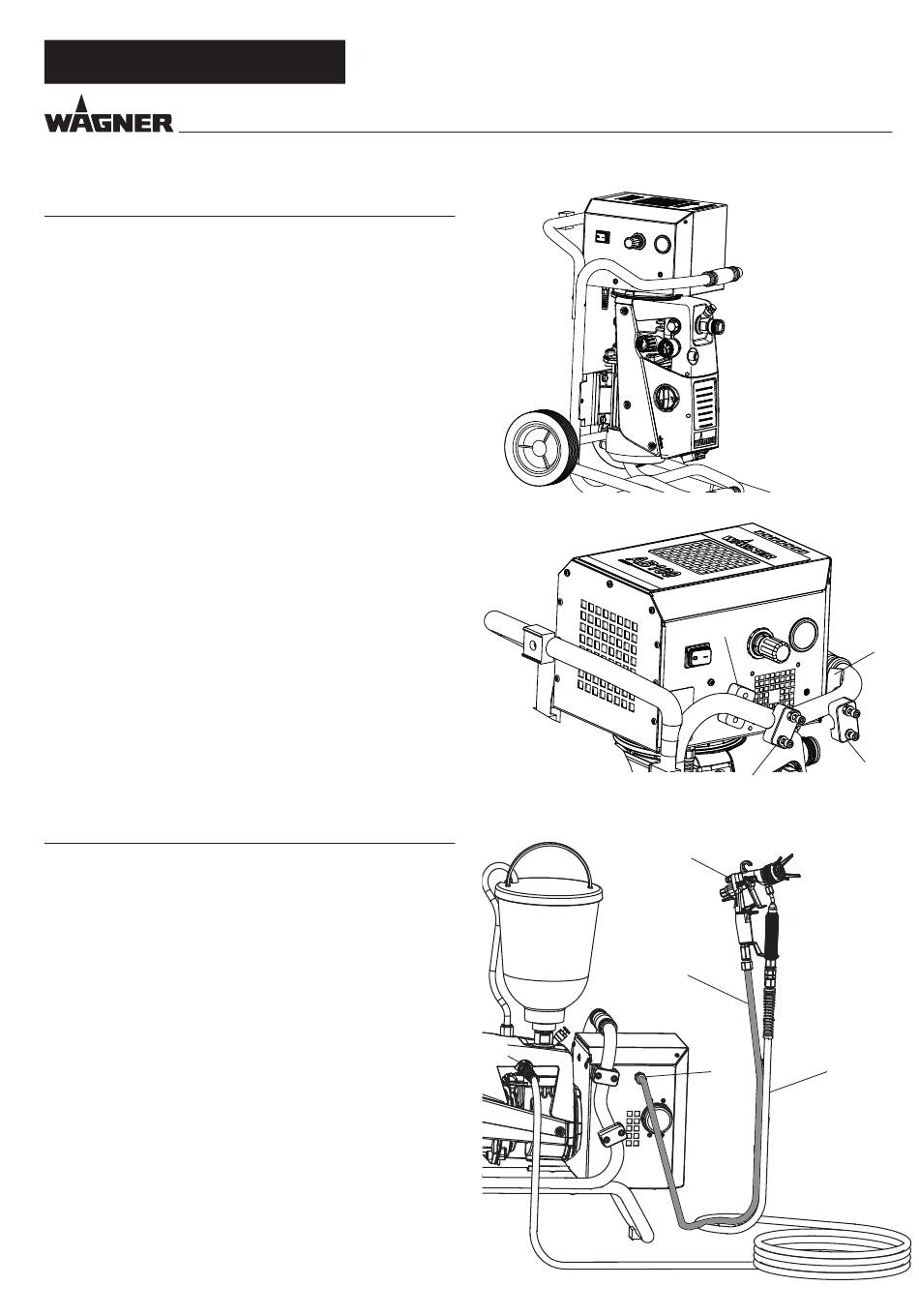

ASSEMBLY

1. Put the Super Finish 23 Plus in a vertical position.
2. Place the AirBoost 100 on top of the front lid. (Fig. 1)
3. Push the lower section of the attachment clips (fig. 2, 1A)
over the screw holes in the housing.
4. Screw the AirBoost 100 to the frame of the SF 23 Plus via
the upper part of the attachment clips (fig. 2, 1B).
5. Connect the plug to the rear side of the SF 23 PLUS.
6. Secure the power cable to the frame using the provided
cable ties to do so.
4

STARTUP

1. Mount the double hose (accessory). Do this by screwing
the high pressure hose (fig. 3, 9) to the material outlet (10)
of the device and screwing the other end to the spray gun
(11) tightly.
2. Screw the compressed air hose (12) to the air hose con-
nection (7) of the AirBoost 100. Screw the other end of
the compressed air hose to the spray gun.
3. Switch the AirBoost 100 on.
4. Set the required air pressure at the pressure regulator of
the AirBoost.
5. Set the required material pressure at the pressure regula-
tor valve on the SF23 PLUS.
a


10
1A
1B
11
12
7 9
GB
1A
1B
