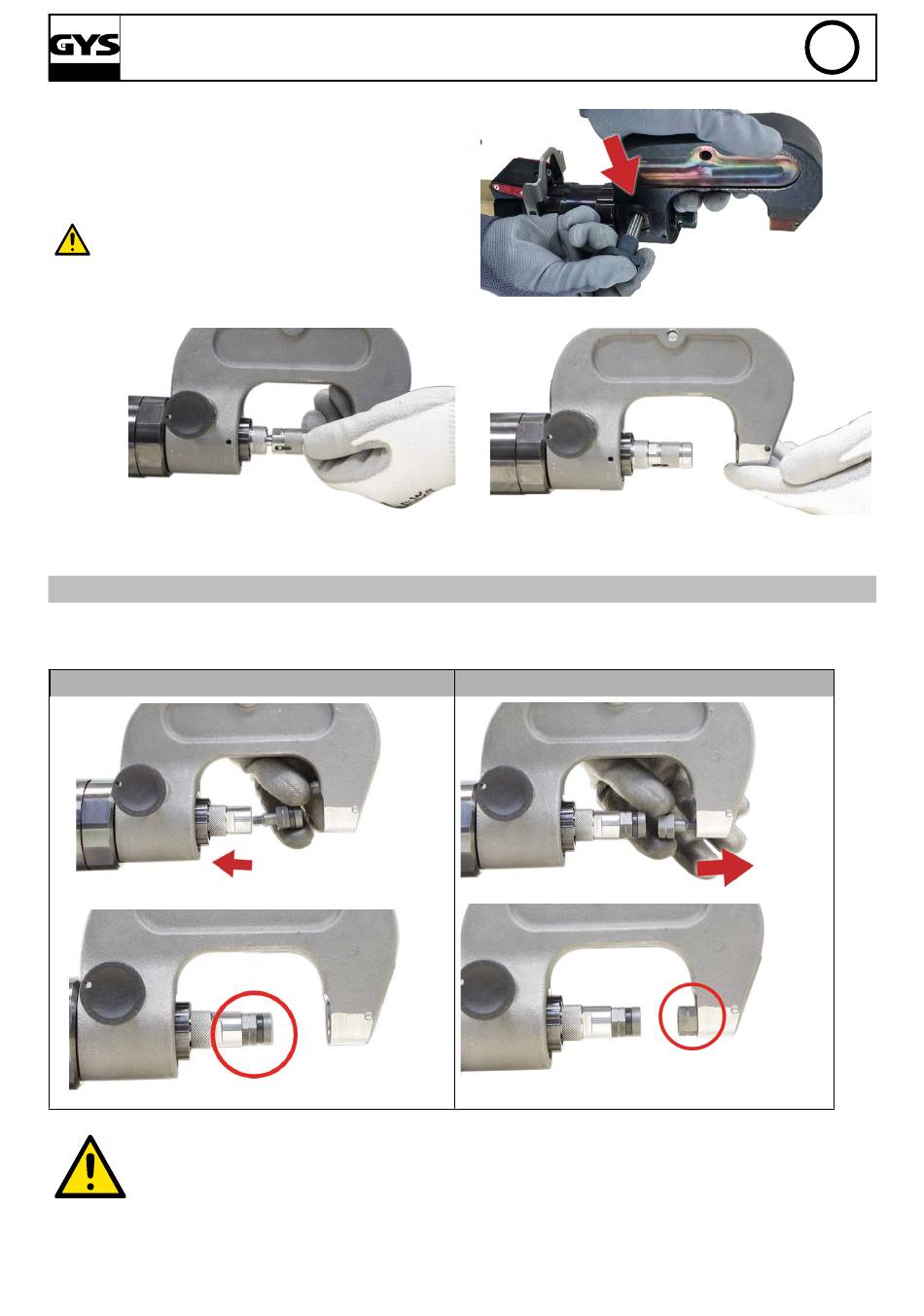

As soon as the arm is on the riveting machine, push the
locking pin in the hole.
The axle locks itself automatically and must not be
allowed to become unlocked.
The locking pin must be clean with no damage. Do
not use any damaged pin.
Using the screw, fasten the extension
supplied with the arm.
CONNECTOR ASSEMBLY
Screw the required connectors kit for the riveting procedure in the arm support. Before assembling, check that the die
and the punch support are correctly in place (see page 3) and screwed.
Punch / mandrel support
As soon as the matrix and the punch support are in place, tighten with the spanner
provided. Check that the connection tips are in place after each riveting process. A release is
dangerous and may damage the riveting machine.
GYSPRESS 10T PUSH PULL
The riveting machine is now ready to use.
Rivet matrix
