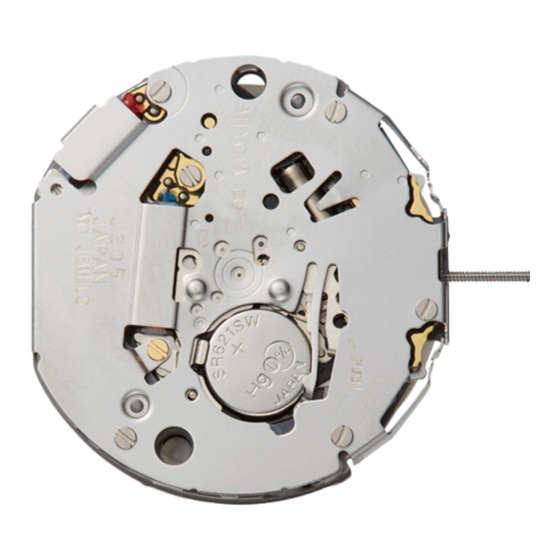

JS05 JS15 JS25
Size
<ligne>
Height
<mm>
Accuracy
<per Month>
Battery
Life
*30 minutes chronograph operation per day
Battery consumption could be minimum
by pulling out the stem (=Power-Saving)
Balance
Weight
<μN.m>
Featured by Shock Detection
Clearance
Original
Package
12 ½'''
4.30
±20
sec
2
years
0.40
Minute
0.09
Second
0.02
Small
case
0.3-0.4mm
Hand
Movement
0.15mm
500
pcs
Push "A"
Start and Stop the chronograph
Push "B"
DO NOT set Date between
Reset the chronograph
9:00pm – 1:00am
Setting the Time
Set CHRONOGRAPH hands to reset
Push A to reset the hands position to the ZERO position,
And continue to push A to put them forward
Setting the Date
Pusher
065-505
Attached
Stem
Φ28.2
SR621SW
CS
30
7
Date
Chronograph
Chronograph
Second
Minute
JS05
30
24
CS
JS25
24
30
CS
24
24 Hour
JS15
24
7
30
CS
High Hand Ver.
JS06
JS16
JS26
