6. Operation
6.1 Getting Started
4. Select the item that you want to edit, and set its parameters as desired. <Satellite Setup>
▪ LNB Power: Select among ON/OFF/13V/18V.
▪ LNB Type: Select among Single/Universal/OCS/SaTCR.
▪ LNB Freq: Set the frequency of the LNB oscillator.
▪ 22KHz: When not AUTO, set the signal path from LNB or switch by selecting a control signal
among 0/22KHz.
▪ DiSEqC 1.0: Select DiSEqC 1.0 Port
▪ DiSEqC 1.1: Select DiSEqC 1.1 Port
▪ Rename: Press RED button on the remote to rename the selected satellite.
▪ Auto Navigation: Press RED button on the remote to begin auto navigation.
▪ Scan: Press Green button on the remote to begin satellite search.
▪ Save: Press Yellow button on the remote to save the selected satellite.
▪ Delete: Press Blue button on the remote to delete the selected satellite channels.
5. Select the item that you want to edit and set its parameters as desired. <Motorized Setting>
▪ Frequency : If the default TP frequency is not appropriate, you can select another
TP frequency at which to check for signal.
▪ DiSEqC Motor: Select DiSEqC protocol among OFF/1.2/USALS as appropriate for your Motor.
▪ Rename: Press RED button on the remote to rename the selected satellite.
▪ Scan: Press Green button on the remote to begin satellite search.
16

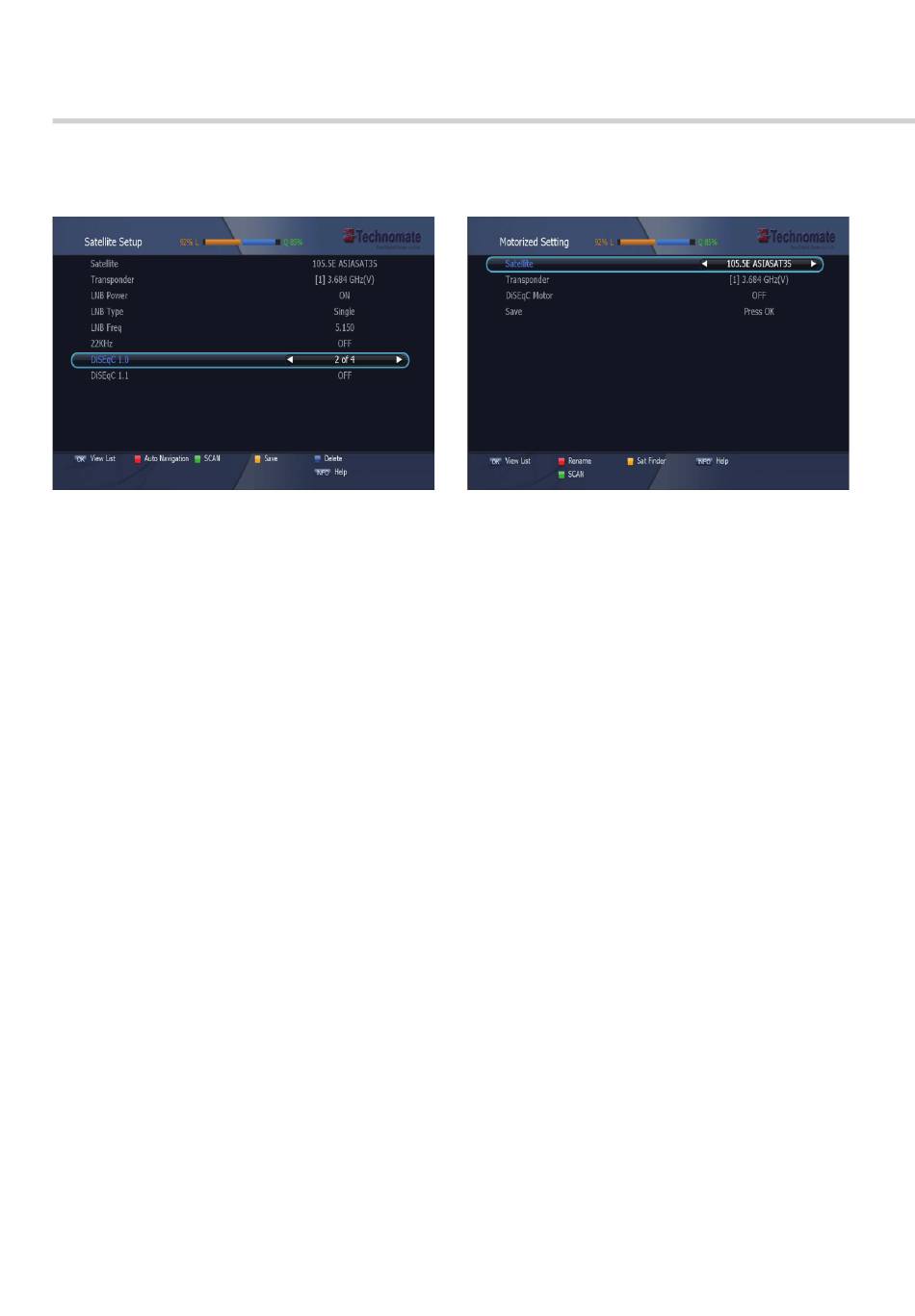

Figure 6.1.2 Figure 6.1.3
