4. Controls/Functions

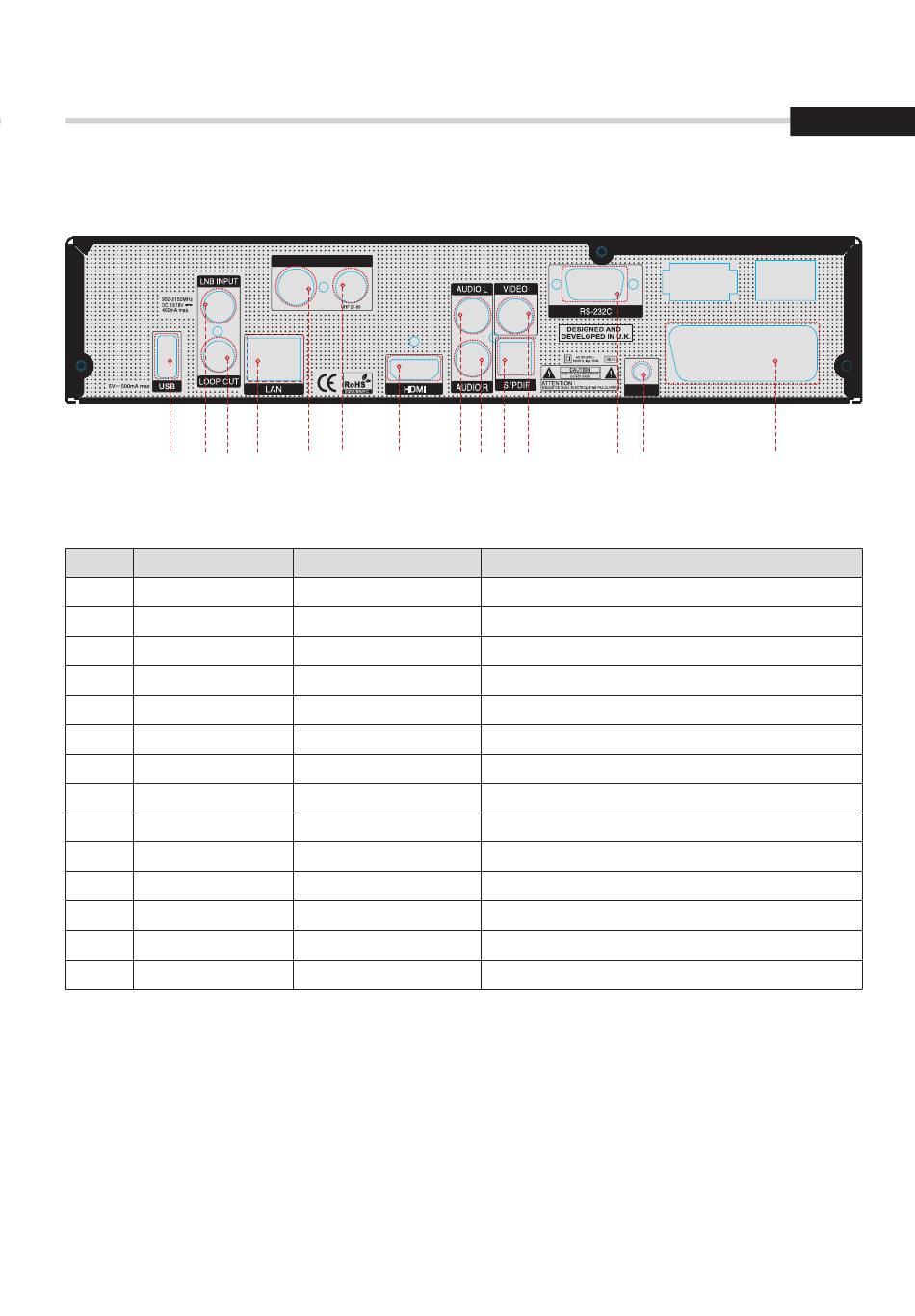

4.2 Rear Panel

⓮ ❶ ❷
NO Name
LNB INPUT
❶
LOOP OUT
❷
VIDEO
❸
AUDIO L
❹
AUDIO R
❺
S/PDIF
❻
LAN
❼
HDMI
❽
RS-232
❾
RF OUT UHF 21-69
❿
TV ANT IN
⓫
EXT_IR
⓬
TV SCART
⓭
USB
⓮
11
TV ANT IN RF OUT
❼ ⓫ ❿ ❽
Connector
IEC 169-24 FEMALE
IEC 169-24 FEMALE
RCA cinch
RCA cinch
RCA cinch
RCA cinch
RJ-45
HDMI
DB-9
IEC 169-2 MALE
IEC 169-2 FEMALE
Mini-jack_3.5mm
SCART
USB A-Type
❹ ❺ ❻ ❸ ❾ ⓬
IF input from LNB to digital tuner
IF loop-through output from digital tuner
Composite video output
Left audio output
Right audio output
Digital audio output
10/100Mbps Ethernet
Digital Video/Audio Output
Low speed serial port
Output to TV
Input from terrestrial antenna
external IR receiver port
Video output(CVBS,RGB),Audio output(R,L)
USB 2.0
EXT IR
