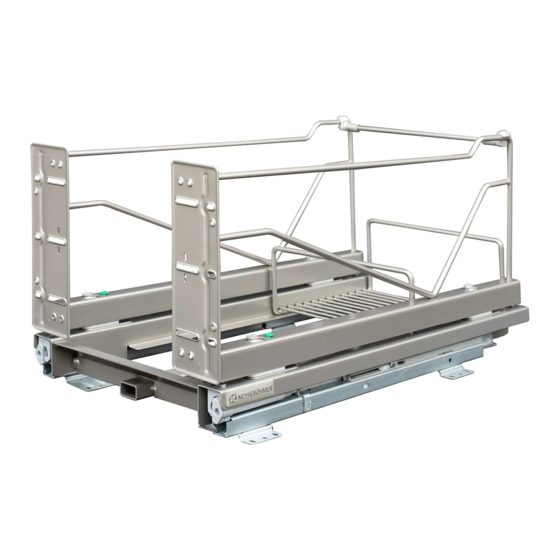

- Page 1 Waste Bin Pull-Out When installing with PTO kit, start with PTO instruction max. 100 lbs 45 kg http://support.kesseboehmer.de MA 402104 0000 Rev.: 010-2023-10-18 1 / 8 *4021040000*...
- Page 2 Waste Bin Pull-Out Warning! Avertissement! Avvertenza! ¡Advertencia! Aviso! Varoitus! Advarsel! Uyar¹! Nicht korrekt! Incorrect! Incorrect! Non corretto! ¡Incorrecto! Incorrecto! Väärin! Ikke korrekt! Korrekt! Correct! Correct! Corretto! ¡Correcto! Correcto! Oikein! Korrekt! Fixieren/fixiert! Secure/Secured! Fixer/fixé Fissare/fissato! ¡Fijar/fijado! Fixar/fixo! Kiinnitä/kiinnitetty! Spænde/spændt Sabitleme/sabit! Lösen/gelöst! Release/Released! Détacher/détaché...
- Page 3 Waste Bin Pull-Out Cabinet and drilling dimension Frameless cabinet Framed cabinet Framed cabinet with inset door with overlay door MA 402104 0000 Rev.: 010-2023-10-18 www.kesseboehmer.world 3 / 8...
- Page 4 Waste Bin Pull-Out Installing the bottom frame Installing the bottom frame Please install screws on both sides of the runner supports at the front and back position! Please install screws on both sides of the runner supports at the front and back position! Failure to install mounting screws on one side could lead to twisting of the runner during operation, Failure to install mounting screws on one side could lead to twisting of the runner during operation, causing lower stability and premature wear.
- Page 5 Waste Bin Pull-Out Door drilling position by using the template Brackets turned “out” Inset 1/4” Inset 1/8” Cabinet Bottom Reference 1/2” Overlay 5/8” Overlay 3/4” Overlay Brackets turned “in” Inset 1/4” Inset 1/8” Cabinet Bottom Reference 1/2” Overlay 5/8” Overlay 3/4”...
- Page 6 Waste Bin Pull-Out Brackets turned out Brackets turned in Door Door 6.25” (158) ± Y 6.25” (158) ± Y fasteners are not included Faceframe Frameless Faceframe Door Overlay Door Inset Door Bottom Bottom Bottom MA 402104 0000 Rev.: 010-2023-10-18 www.kesseboehmer.world 6 / 8...
- Page 7 Waste Bin Pull-Out Wastebasket standard size (36qt (34l)) MA 402104 0000 Rev.: 010-2023-10-18 www.kesseboehmer.world 7 / 8...
- Page 8 Waste Bin Pull-Out MA 402104 0000 Rev.: 010-2023-10-18 www.kesseboehmer.world 8 / 8...
