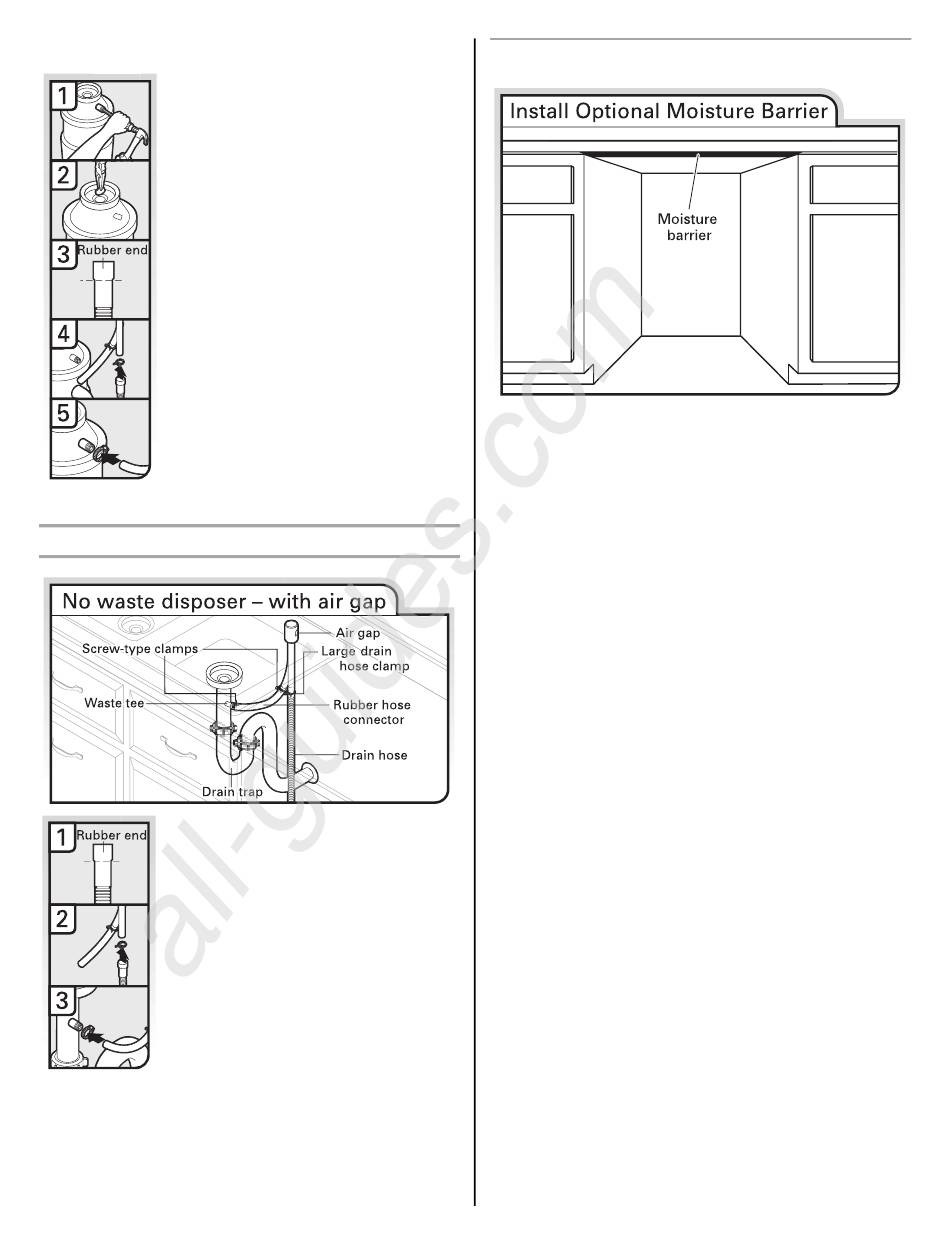

Helpful Tip: Remove disposer knockout plug.

1. Using a hammer and screwdriver,

knock plug into disposer.

2. Use needle-nose pliers to remove

plug.

3. Connect rubber end of drain hose to

air gap and cut if needed.

NOTE: Do not cut ribbed section.

4. Attach drain hose to air gap with

large drain hose clamp (provided).

Use pliers to squeeze clamp open

and move into position. If the drain

hose was cut, use a 1¹⁄₂" to 2" (3.8 to

5 cm) screw-type clamp (not

provided).

5. Use a rubber hose (not provided)

with screw-type clamps (not

provided) to connect from air gap to

disposer inlet.

Option D, No Waste Disposer – With Air Gap

1. Connect rubber end of drain hose to

air gap and cut if needed.

NOTE: Do not cut ribbed section.

2. Attach drain hose to air gap with

large drain hose clamp (provided).

Use pliers to squeeze clamp open

and move into position. If the drain

hose was cut, use a 1¹⁄₂" to 2" (3.8 to

5 cm) screw-type clamp (not

provided).

3. Use a rubber hose (not provided)

with screw-type clamps (not

provided) to connect from waste tee

to air gap.

All manuals and user guides at all-guides.com

See the "Tools and Parts" section at the front of the guide for part

details and orders.

1. Make sure the area under the cabinet is clean and dry for

2. Remove the backing of the moisture barrier and apply to
