FS12NPT Sink Kit with Two 1/2" NPT MIP x FIP Valves
EN
Leak Detection & Automatic Water Shut-off System Installation and Operating Manual

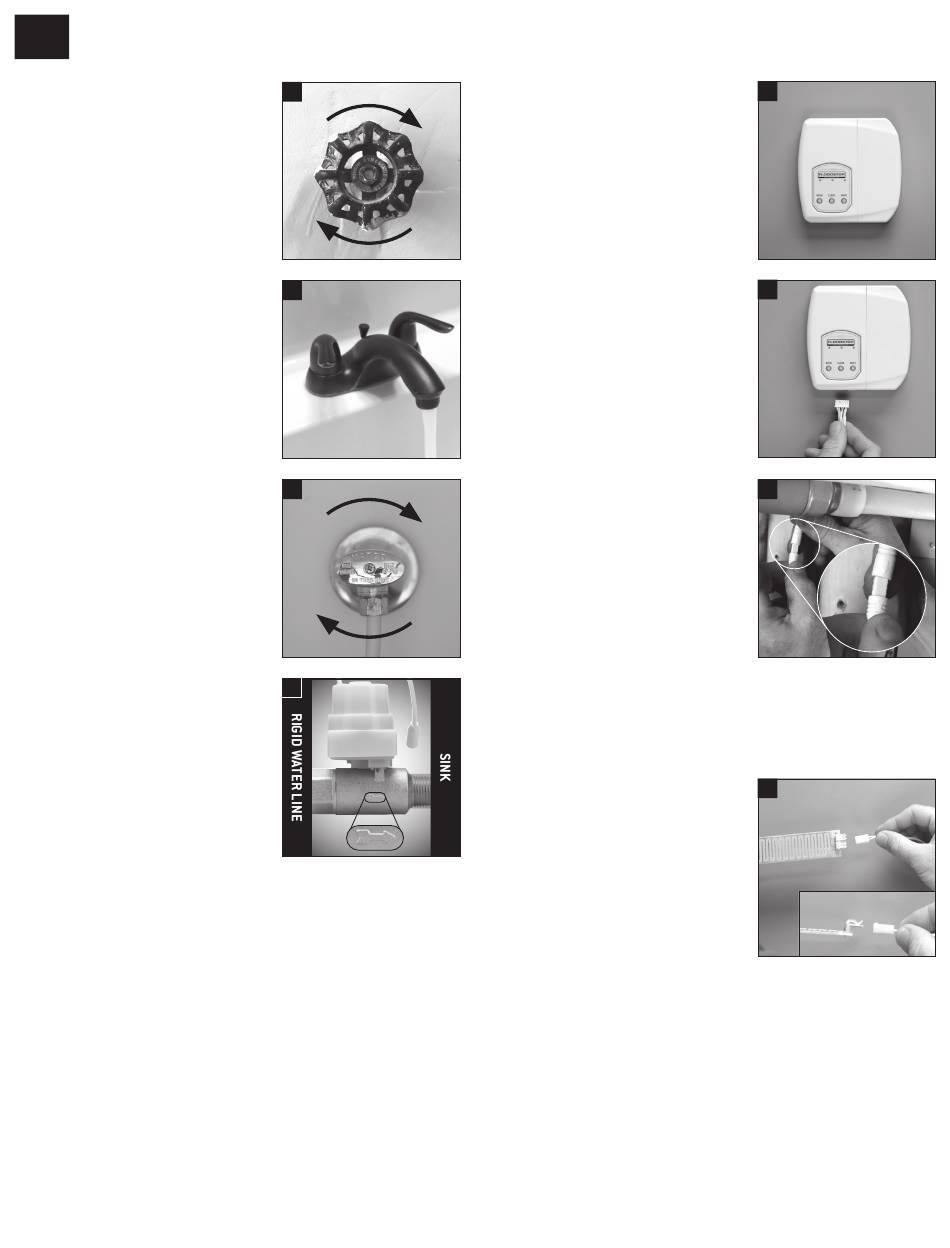

INSTALLATION
1.
Close the main water supply valve
2.
Open faucet nearest sink to relieve
water pressure.
3.
Shut off both the hot and cold-water
manual valves that supplies water
to the sink.
4.
Thread the spinning nut on the
FloodStop valve directly onto the
male 1/2" threads on the supply
valve. The arrow on the side of the
FloodStop valve will be pointing to
the sink. Thread the 1/2" female
connection on the supply hose
to the 1/2" male threads on the
FloodStop valve. If a compression
connection on a copper line, then attach the compression nut/ferrule
onto the male 1/2" threads on the FloodStop valve. Repeat for other
valve. NOTE: Ensure Leak Sensor is lying flat on the floor.
1
2
3
4
– 2 –
5.
Mount the FloodStop Control Panel in
an easily accessible location within
30 inches of the FloodStop Valves.
You may mount the panel using the
screws and anchors, or Hook & Loop
Mounting Pad provided. When using
the Hook & Loop Mounting Pad,
make sure the adhesive is put on a
clean, dry surface.
6.
With the contacts of the wire
harness connector facing you, plug
the 6-pin connector end of the Wire
Harness into the bottom of the
Control Panel.
7.
Take the short wire coming from
the Control Panel and connect to
the FloodStop Valve wires (make
sure the arrow on the side of the
plugs line up with each other).
NOTE: The Leak Sensor comes with
a Paper Sleeve. If the Leak Sensor
is going to make contact with the
sink, or any other piece of metal,
make sure you leave the Paper
Sleeve on. If the Leak Sensor makes contact with metal, it will signal
the FloodStop Valve to shut off. The Paper Sleeve acts as a barrier
between the Leak Sensor and the metal. When the Paper Sleeve
becomes wet, it will signal the FloodStop Valve to shut off.
8.
Connect plug on end of long flat
wire coming from Control Panel
to either set of prongs on the
Leak Sensor, pushing until plug
snaps in place. Then place Leak
Sensor on the floor behind the
washing machine. NOTE: Additional
Leak Sensors can be connected
together for added protection. For
additional Leak Sensors, purchase
FloodStop Water Leak Sensor, Model #FSAXS01 (available where
you purchased your FloodStop System). CAUTION: Do not place
Leak Sensor or cord in a walkway, or other location that may cause
someone to trip and fall.
5
6
7
8
